HEATING & AIR CONDITIONING - COOLER UNIT

87116ASPRING, HOLDING (FOR COOLER UNIT CASE)

main87116-12190iLY61..ST198808-199309

main87116-14010iLY61..ST199309-199505

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37030iLY61..ST199309-199505

main88501-95404iLY61..ST198808-199309

88510UNIT ASSY, COOLER

main88510-25030iLY61..ST199309-199505

main88510-95406iLY61..ST198808-199309

88515VALVE, COOLER EXPANSION

main88515-16031iLY61..ST198808-199309

main88515-28090iLY61..ST199309-199505

88536BRACKET, COOLING UNIT, NO.1

main88536-95403iLY61..ST198808-199505

88536ABRACKET, COOLING UNIT, NO.2

main88536-95404iLY61..ST198808-199505

88536BBRACKET, COOLING UNIT, NO.3

main88536-95406iLY61..ST198808-199505

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-95410iLY61..ST198808-199505

88566DUCT, COOLER AIR, NO.1

main88566-95407iLY61..ST198808-199505

88578APACKING, COOLER STABILIZER AMPLIFIER

main88578-95400iLY61..ST198808-199505

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-26600iLY61..ST199309-199505

main88605-95405iLY61..ST198808-199309

88625THERMISTOR, COOLER, NO.1

main88625-95A00iLY61..ST198808-199505

sub88625-28150

88630RELAY ASSY, COOLER

main88630-60020iLY61..ST198808-199505

88630ARELAY ASSY, COOLER

main88630-95403iLY61..ST198808-199505

88645GSWITCH, PRESSURE

main88645-17010iLY61..ST198808-199309

NO.2

main88645-20050iLY61..ST199309-199505

NO.1

main88645-95J00iLY61..ST198808-199309

NO.1

sub88645-12020

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-14030iLY61..ST198808-199505

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-95425iLY61..ST198808-199505

8271114560WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14560

8857895400PAKING, COOLER AIR DUCT

main88578-95400

9017908123

main90179-08123

9095001293

main90950-01293

9161160816

main91611-60816

9165140825

main91651-40825

9353055016

main93530-55016

9356615512

main93566-15512

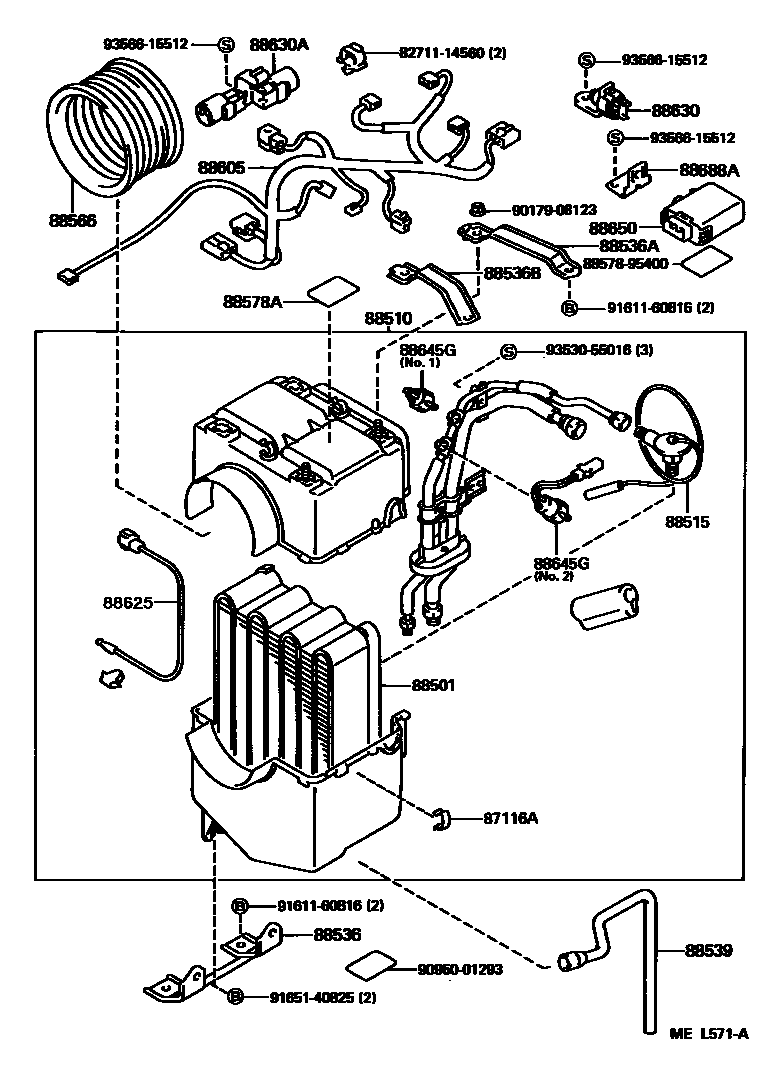

25 parts on this diagram · 1 diagram in section
