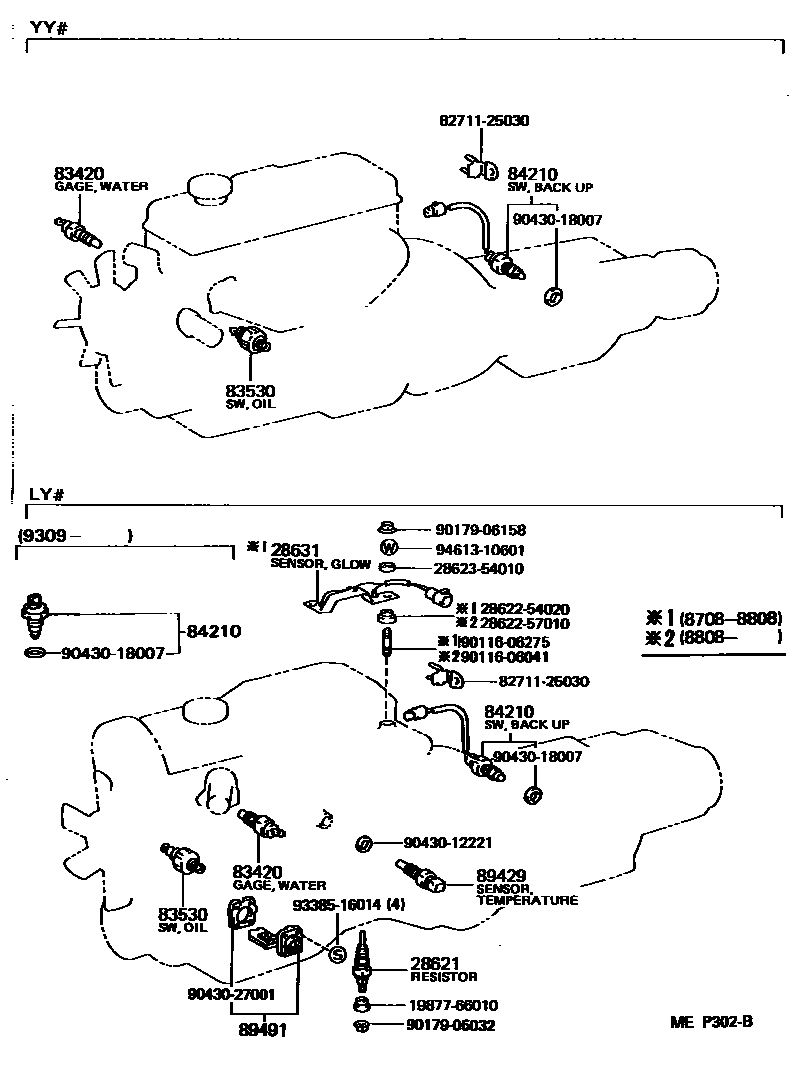

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

28621RESISTOR, GLOW PLUG

main28621-54031i2L..LY60198708-198808

sub28621-64011

main28621-54080i3L..LY61..WT198808-199505

28631SENSOR, GLOW PLUG CURRENT

main28631-54040i2L..LY60198708-198808

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iLY61199301-199505

NIPPONDENSO

main83420-20020iLY6#,YY61198708-199301

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iYY61198708-198808

sub83530-28030

main83530-30060iLY6#198708-199505

sub83530-60030

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLY61199309-199505

sub84210-52050

main84210-60021iLY6#,YY61198708-199309

89429SENSOR, OIL TEMPERATURE

main89422-20010iLY61198808-199505

main89422-30020iLY60198708-198808

sub89422-12010

89491SENSOR, ENGINE OIL LEVEL

main89491-26090iLY61198910-199203

sub89491-26091

main89491-36100iLY61199203-199505

1987766010

main19877-66010

2862254020INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-54020

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271125030WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-25030

9011606041

main90116-06041

9011606275

main90116-06275

9017905032

main90179-05032

9017906158

main90179-06158

9043012221

main90430-12221

9043018007

main90430-18007

9043027001

main90430-27001

9338516014

main93385-16014

9461310601

main94613-10601

21 parts on this diagram · 4 diagrams in section
