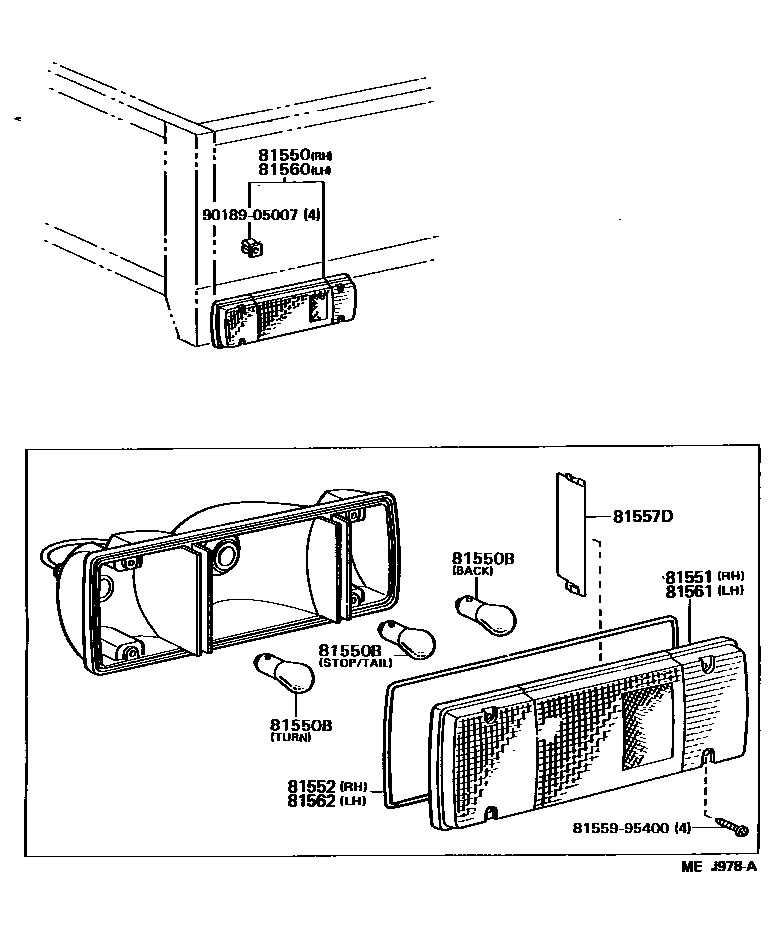

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-26120iLY61..ST199408-199505

main81550-37020iLY61..WT199304-199408

main81550-37040iLY61..WT199408-199505

main81550-95410iLY6#,YY61..WT198708-198910

main81550-95418iLY61..WT198910-199304

main81550-95A10iLY61..ST199104-199207

main81550-95A11iLY61..ST199207-199408

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iLY61199104-199505

12V 21W

main99132-21210×2iLY61199104-199505

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-25060iLY61..ST198808-199008

main81551-26040iLY61..ST199207-199408

sub81551-60180

main81551-35061iLY61..ST199408-199505

main81551-60441iLY61..WT199304-199501

main81551-60442iLY61..WT199501-199505

main81551-95403iLY6#,YY61..WT198708-198910

main81551-95417iLY61..WT198910-199304

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-26040iLY61..ST199207-199505

main81552-95400iLY6#,YY61..WT198708-199505

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403×2iLY6#,YY61..WT198708-199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-26120iLY61..ST199408-199505

main81560-37040iLY61..WT199304-199408

main81560-37060iLY61..WT199408-199505

main81560-95410iLY6#,YY61..WT198708-198910

main81560-95419iLY61..WT198910-199304

main81560-95A10iLY61..ST199104-199207

main81560-95A11iLY61..ST199207-199408

81561LENS, REAR COMBINATION LAMP, LH

main81561-25040iLY61..ST199104-199207

main81561-26040iLY61..ST199207-199408

sub81561-60080

main81561-35061iLY61..ST199408-199505

main81561-60371iLY61..WT199304-199501

main81561-60372iLY61..WT199501-199505

main81561-95403iLY6#,YY61..WT198708-198910

main81561-95418iLY61..WT198910-199304

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iLY6#,YY61..WT198708-199505

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400

9018905007

main90189-05007

10 parts on this diagram · 2 diagrams in section
