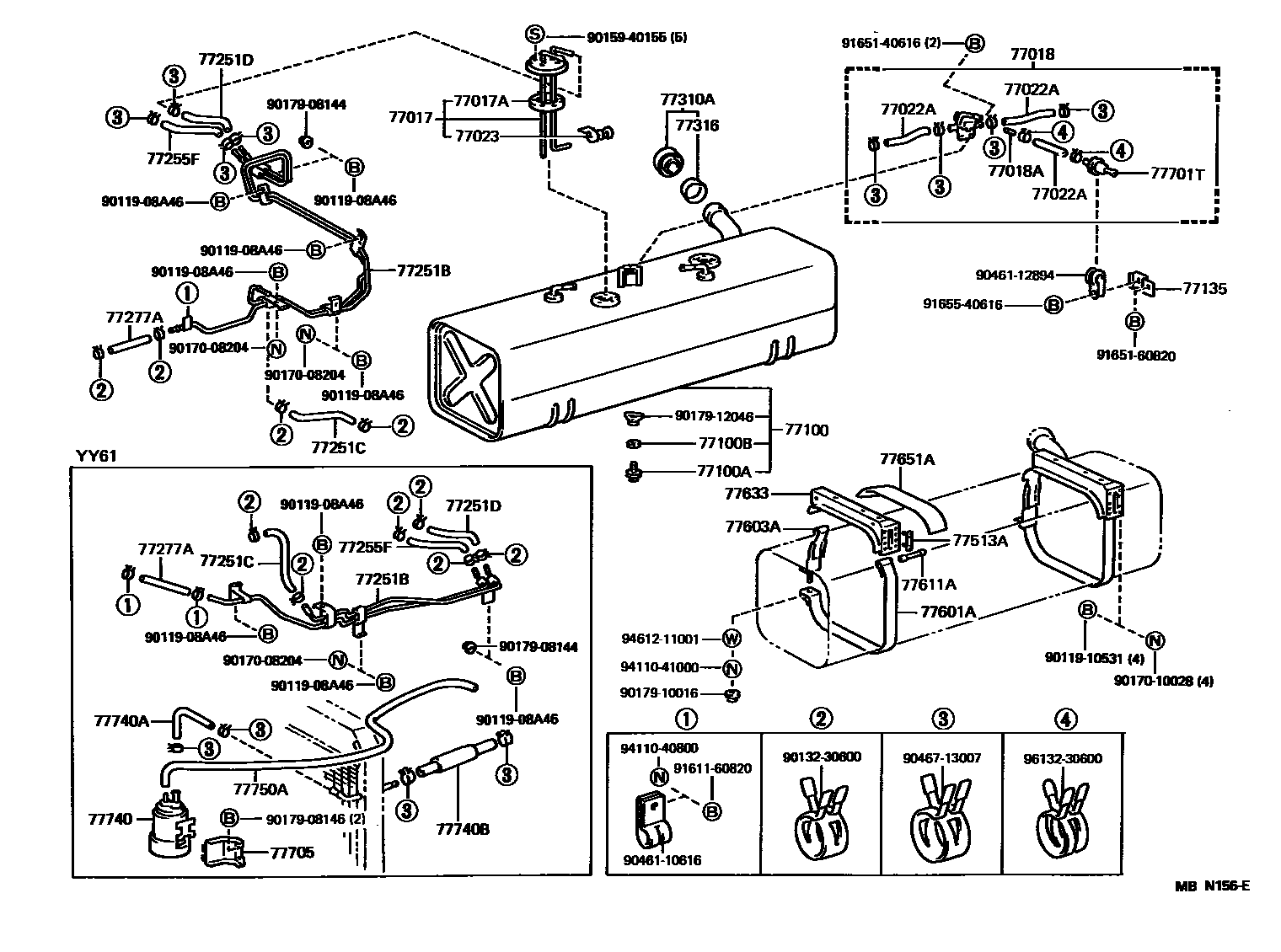

FUEL TANK & TUBE

77017TUBE SUB-ASSY, FUEL AND EVAPORATION VENT

main77017-25090iLY6#198708-199505

main77017-25110iYY61198708-198808

77017AGASKET, FUEL TANK VENT

main77169-14020iLY6#,YY61198708-199505

77018VALVE SUB-ASSY, FUEL VAPOUR SEPARATE

main77018-25110iLY61..ST198808-199207

main77018-26140iLY6#,YY61..WT198708-199505

sub77018-37140

77018AORIFICE, FUEL VAPOUR

main90977-02001iLY6#,YY61..WT198708-199505

77022AHOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)

main95333-06030iLY6#,YY61..WT198708-199505

L=300

sub95338-06030

main95333-08020iLY6#,YY61198708-199505

L=200,ID=8

sub95337-08020

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-14030iYY61198708-198808

main77023-32010iLY6#198708-199505

77100TANK ASSY, FUEL

main77001-25270iLY6#,YY61198708-199505

77100APLUG(FOR FUEL TANK)

main90105-12116iLY6#,YY61198708-199505

77100BGASKET(FOR FUEL TANK)

main90430-12245iLY6#,YY61198708-199505

77135BRACKET, CHECK VALVE

main77277-26010iLY6#,YY61..WT198708-199505

77251BTUBE, FUEL MAIN

main77205-25050iYY61198708-198808

main77205-25061iLY6#198708-199505

77251CHOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)

main77259-25040iYY61198708-198808

main77259-25050iLY6#198708-199505

77251DHOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)

main95333-04020iYY61198708-198808

L=200

main95333-08020iLY6#198708-199505

L=200,ID=8

sub95337-08020

77255FHOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)

main95333-06020iYY61198708-199505

L=200

sub95337-06020

77277AHOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)

main90447-11004iYY61198708-198808

L=280

main90447-12108iLY61198808-199505

L=220

main95333-06030iLY60198708-198808

L=300

sub95338-06030

77310ACAP ASSY, FUEL TANK

main77310-55080iLY6#198708-199309

sub77310-60100

main77310-60051iYY61198708-198808

sub77310-60090

77316GASKET, FUEL TANK CAP

main77316-27010iLY6#,YY61198708-199309

77513ARETAINER, TANK BRACKET

main77503-25010iLY61198811-199505

main77513-25020iLY6#,YY61198708-198811

sub77503-25010

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-26060iLY6#,YY61198708-199505

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-26030iLY6#,YY61198708-199505

77611APIN (FOR FUEL TANK BAND)

main77653-25010iLY6#,YY61198708-199505

77633STAY, FUEL TANK

main77501-25090iLY6#,YY61198708-199412

sub77501-25091

main77501-25091iLY61199412-199505

77651ACUSHION, FUEL TANK, NO.1

main77651-26040iLY6#,YY61198708-199505

77701TVALVE, CHECK (FOR MAIN FUEL TANK)

main90917-10067iLY6#,YY61..WT198708-199505

77705BRACKET SUB-ASSY, CHARCOAL CANISTER

main77705-26021iYY61198708-198808

sub77705-26022

77740CANISTER ASSY, CHARCOAL

main77740-26060iYY61198708-198808

77740AHOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)

main90445-14136iYY61198708-198808

L=150

77740BHOSE, FUEL, NO.2(FOR CHARCOAL CANISTER)

main90447-14046iYY61198708-198808

L=470

77750AHOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)

main90445-08169iYY61198708-198808

L=1050

sub90999-92006

9011908A46

main90119-08A46

9011910531

main90119-10531

9013230600

main90132-30600

9015940155

main90159-40155

9017008204

main90170-08204

9017010028

main90170-10028

9017908144

main90179-08144

9017908146

main90179-08146

9017910016

main90179-10016

9017912046

main90179-12046

9046110616

main90461-10616

9046112894

main90461-12894

9046713007

main90467-13007

9161160820

main91611-60820

9165140616

main91651-40616

9165160820

main91651-60820

9165540616

main91655-40616

9411040800

main94110-40800

9411041000

main94110-41000

9461211001

main94612-11001

9613230600

main96132-30600

50 parts on this diagram · 1 diagram in section
