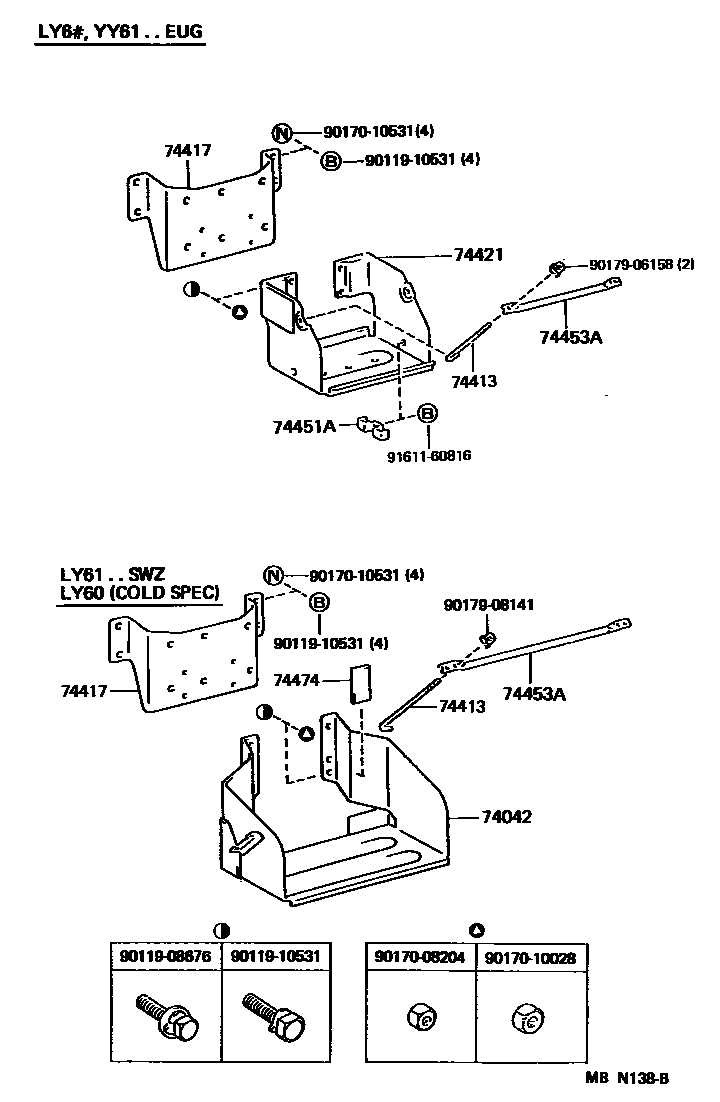

BATTERY CARRIER

74042BRACKET SUB-ASSY, BATTERY

main74042-25030iLY6#..EUG198708-199505

main74042-25040iLY61..WT..EUG198808-198906

W(BATTERY=80D26R X2)

main74042-25041iLY61..SWZ198906-199008

74413BOLT, BATTERY CLAMP

main74451-25020×2iYY61198708-198808

main74451-36070×2iLY6#198708-199505

74417BRACKET, BATTERY CARRIER

main74417-25020iYY61198708-198808

main74417-25030iLY6#..EUG198708-199505

main74417-25051iLY61..SWZ198808-199008

74421HANGER, BATTERY

main74421-25020iYY61198708-198808

sub74421-26020

74451APLATE, BATTERY SET

main74451-25060×2iYY61198708-198808

main74451-25070×2iLY6#..EUG198708-199505

74453ABAR, BATTERY SET PLATE

main74453-25090iYY61198708-198808

main74453-36050iLY6#..EUG198708-199505

sub74453-36060

main74453-36070iLY61..SWZ198808-199008

sub74453-37130

74474PAD, BATTERY

main74475-36040×2iLY6#..EUG198708-199505

9011908676

main90119-08676

9011910531

main90119-10531

9017008204

main90170-08204

9017010028

main90170-10028

9017010531

main90170-10531

9017906158

main90179-06158

9017908141

main90179-08141

9161160816

main91611-60816

15 parts on this diagram · 1 diagram in section
