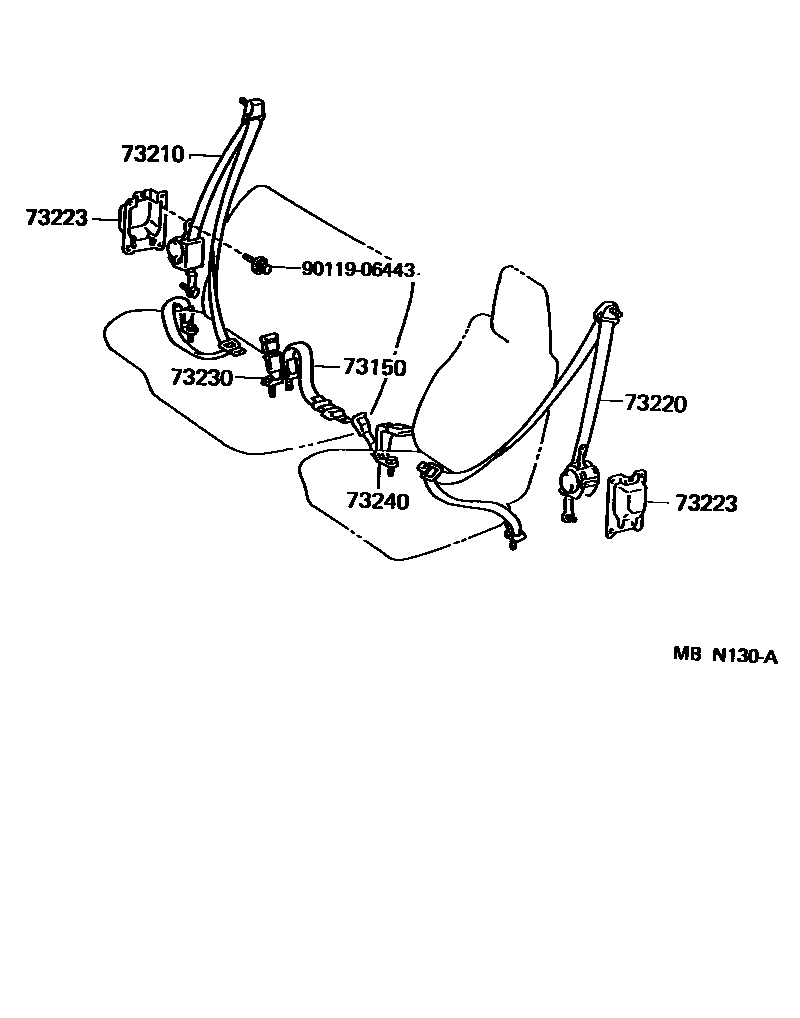

SEAT BELT

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main73150-37010-B1iLY61199210-199505

GRAY,TRIM1#

sub73150-37010

main73150-95A01-06iLY6#,YY61..WT198708-199109

BROWN,TRIM4#

sub73150-37010

main73150-95A01-B1iLY61..WT199109-199210

GRAY,TRIM1#

sub73150-37010

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-37060-B1iLY61199210-199505

GRAY,TRIM1#

sub73210-37061

main73210-95A05-06iLY6#,YY61..WT198708-199109

BROWN,TRIM4#

sub73210-95A05

sub73210-37060

main73210-95A05-B1iLY61..WT199109-199210

GRAY,TRIM1#

sub73210-95A05

sub73210-37060

73220BELT ASSY, FRONT SEAT OUTER, LH

main73210-37060-B1iLY61199210-199505

GRAY,TRIM1#

sub73210-37061

main73210-95A05-06iLY6#,YY61..WT198708-199109

BROWN,TRIM4#

sub73210-95A05

sub73210-37060

main73210-95A05-B1iLY61..WT199109-199210

GRAY,TRIM1#

sub73210-95A05

sub73210-37060

73223COVER, SEAT BELT RETRACTOR

main73223-95400iLY6#,YY61..WT198708-199505

sub73223-37010

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-95A05-06iLY6#,YY61..WT198708-199109

BROWN,TRIM4#

sub73230-95A05

main73230-95A05-B1iLY61..WT199109-199505

GRAY,TRIM1#

sub73230-95A05

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-95A06-06iLY6#,YY61..WT198708-199109

BROWN,TRIM4#

sub73240-95A06

main73240-95A06-B0iLY61..WT199109-199505

GRAY,TRIM1#

sub73240-95A06

9011906443

main90119-06443

7 parts on this diagram · 1 diagram in section
