EPC Data

SEAT & SEAT TRACK

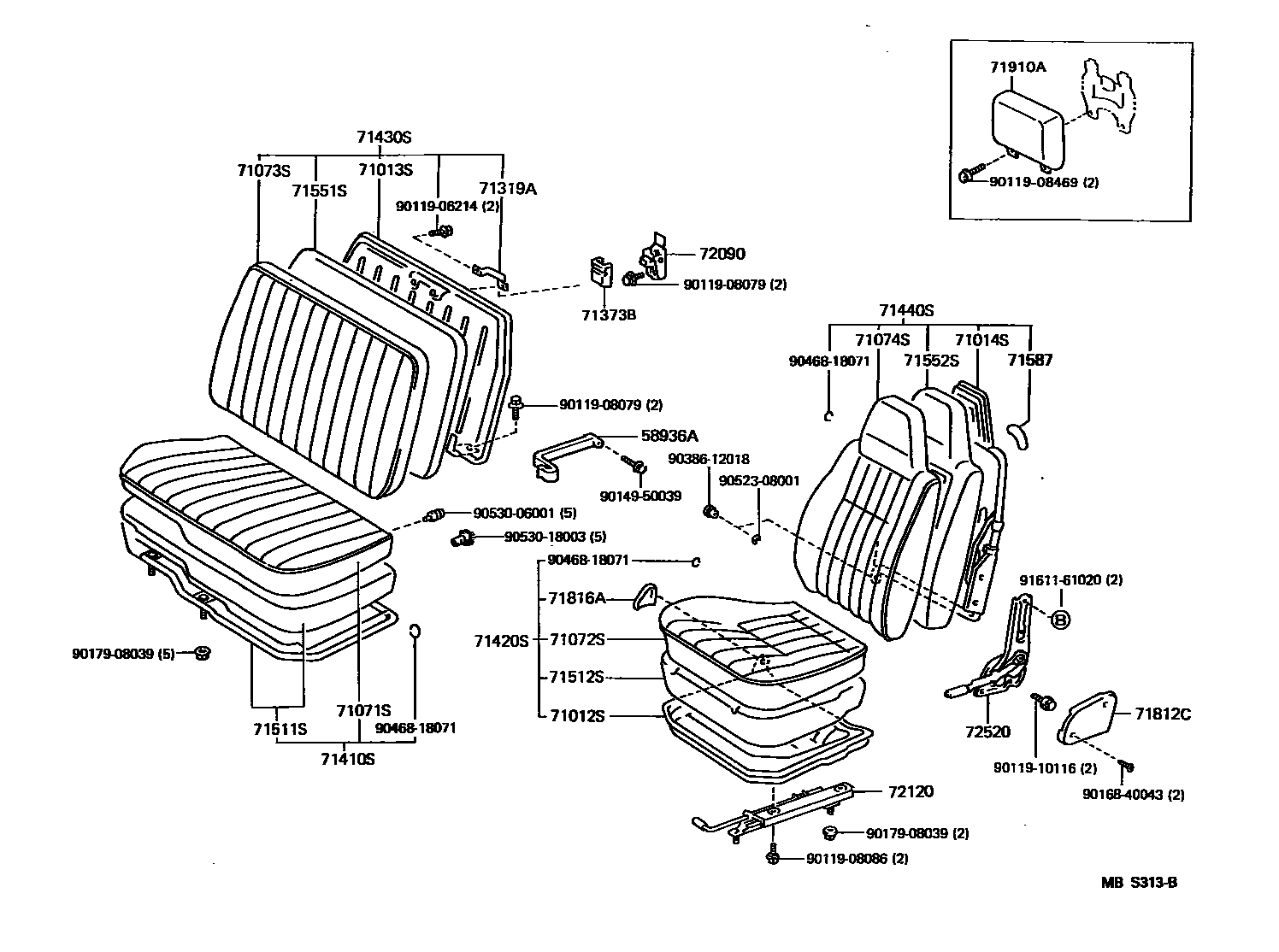

Parts diagram
58936ABAND, ENGINE SERVICE HOLE COVER SUPPORT
main58930-95700-06i198708-199109
DARK BROWN,TRIM4#
sub58930-95700
main58930-95700-B0i199109-199505
GRAY,TRIM1#
sub58930-95700
71012SFRAME SUB-ASSY, FRONT SEAT CUSHION, LH
main71012-95412i198708-199505
main71012-95415i199109-199505
W(SUSPENSION SEAT)
71013SFRAME SUB-ASSY, FRONT SEATBACK, RH
main71013-95416-01i198708-199109
BLACK,TRIM4#
main71013-95416-01i199109-199505
BLACK,TRIM1#
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-95422i199309-199505
main71014-95422i198708-199309
W(HEADREST)
main71014-95423i198708-199309
main71014-95424i198708-199505
W(SUSPENSION SEAT)
main71014-95424i198808-199309
W(SUSPENSION SEAT & HEADREST)
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-37060-B1i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71071-37060-B1i199109-199505
GRAY,TRIM1#
main71071-37070-B2i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71071-37070-B2i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71071-95481-06i198708-198801
BROWN,TRIM4#
sub71071-95476
main71071-95A06-06i198708-198801
W(SUSPENSION SEAT & FRAME RESISTING) OR W(FRAME RESISTING & HEADREST),BROWN,TRIM4#
main71071-95A09-06i199009-199109
W(HEADREST & FRAME RESISTING),BROWN,TRIM4#
main71071-95A09-06i198808-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71071-95A09-06i198801-199008
W(FLAME RESISTING & HEADREST) OR W(SUSPENSION SEAT & FLAME RESISTING),BROWN,TRIM4#
main71071-95A09-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71071-95B08-06i199009-199109
W(SUSPENSION SEAT & HEADREST),BROWN,TRIM4#
main71071-95B08-06i198801-199109
BROWN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-37120-B1i199109-199505
GRAY,TRIM1#
main71072-37130-B1i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37130-B1i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71072-37230-B1i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71072-37260-B2i199109-199309
W(SUSPENSION SEAT & KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71072-37260-B2i199109-199309
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),GRAY,TRIM1#
main71072-37260-B2i199309-199505
W(SUSPENSION SEAT & KNIT FABRIC SEAT),GRAY,TRIM1#
main71072-95037-06i198708-199009
W(SUSPENSION SEAT),DARK BROWN,TRIM4#
main71072-95037-06i199009-199109
W(SUSPENSION SEAT & HEADREST),DARK BROWN,TRIM4#
main71072-95B22-06i198808-199009
W(SUSPENSION SEAT & FLAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71072-95B22-06i198708-199008
W(SUSPENSION SEAT & FLAME RESISTING),DARK BROWN,TRIM4#
main71072-95B22-06i199009-199109
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71072-95B26-06i198708-199109
BROWN,TRIM4#
main71072-95B27-06i198708-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71072-95B27-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-37050-B1i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71073-37050-B1i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71073-37060-B1i199109-199505
GRAY,TRIM1#
main71073-37060-B1i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71073-95041-06i199009-199109
W(HEADREST & FRAME RESISTING),BROWN,TRIM4#
main71073-95041-06i198708-199008
W(FLAME RESISTING & HEADREST) OR W(SUSPENSION SEAT & FLAME RESISTING),BROWN,TRIM4#
main71073-95041-06i198808-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71073-95041-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71073-95B06-06i199009-199109
W(SUSPENSION SEAT & HEADREST),BROWN,TRIM4#
sub71073-95B04
main71073-95B06-06i198708-199109
BROWN,TRIM4#
sub71073-95B04
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-26130-B1i199109-199110
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
sub71074-37270
main71074-26140-B1i199109-199110
GRAY,TRIM1#
sub71074-37280
main71074-26150-B1i199109-199110
W(HEADREST),GRAY,TRIM1#
sub71074-37290
main71074-37230-B1i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71074-37270-B1i199110-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71074-37270-B1i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71074-37280-B1i199110-199309
GRAY,TRIM1#
main71074-37290-B1i199110-199309
W(HEADREST),GRAY,TRIM1#
main71074-37290-B1i199309-199505
GRAY,TRIM1#
main71074-95034-06i198708-199109
W(HEADREST),BROWN,TRIM4#
sub71074-95A28
main71074-95035-06i198708-199109
BROWN,TRIM4#
sub71074-95A30
main71074-95040-06i199009-199109
W(SUSPENSION SEAT & HEADREST),DARK BROWN,TRIM4#
main71074-95040-06i198708-199009
W(SUSPENSION SEAT),DARK BROWN,TRIM4#
main71074-95A18-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
sub71074-95A18
main71074-95A18-06i198708-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
sub71074-95A18
main71074-95B70-06i199009-199109
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71074-95B70-06i198808-199009
W(SUSPENSION SEAT & FLAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71074-95B70-06i198708-199008
W(SUSPENSION SEAT & FLAME RESISTING),DARK BROWN,TRIM4#
71319ASTRIKER, FRONT SEATBACK
main71319-95404i198708-199505
71373BCOVER, FRONT SEATBACK LOCK
main71373-95400-06i198708-199109
BROWN,TRIM4#
sub71373-95400
main71373-95400-B0i199109-199505
GRAY,TRIM1#
sub71373-95400
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71410-37080-B0i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71410-37080-B0i199109-199505
GRAY,TRIM1#
main71410-37090-B0i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71410-37090-B0i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71410-95472-06i198708-198801
BROWN,TRIM4#
main71410-95484-06i199009-199109
W(SUSPENSION SEAT & HEADREST),BROWN,TRIM4#
sub71410-95482
main71410-95484-06i198801-199109
BROWN,TRIM4#
sub71410-95482
main71410-95A58-06i198708-198801
W(SUSPENSION SEAT & FRAME RESISTING) OR W(FRAME RESISTING & HEADREST),BROWN,TRIM4#
main71410-95A61-06i198808-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
sub71410-95483
main71410-95A61-06i198801-199008
W(FLAME RESISTING & HEADREST) OR W(SUSPENSION SEAT & FLAME RESISTING),BROWN,TRIM4#
sub71410-95483
main71410-95A61-06i199009-199109
W(HEADREST & FRAME RESISTING),BROWN,TRIM4#
sub71410-95483
main71410-95A61-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
sub71410-95483
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
main71420-37120-B0i199109-199505
GRAY,TRIM1#
main71420-37130-B0i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37130-B0i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71420-37260-B0i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71420-37270-B0i199109-199309
W(SUSPENSION SEAT & KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71420-37270-B0i199109-199309
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),GRAY,TRIM1#
main71420-37270-B0i199309-199505
W(SUSPENSION SEAT & KNIT FABRIC SEAT),GRAY,TRIM1#
main71420-95035-06i198708-199009
W(SUSPENSION SEAT),DARK BROWN,TRIM4#
main71420-95035-06i199009-199109
W(SUSPENSION SEAT & HEADREST),DARK BROWN,TRIM4#
main71420-95B01-06i198708-199109
BROWN,TRIM4#
main71420-95B11-06i198708-199008
W(SUSPENSION SEAT & FLAME RESISTING),DARK BROWN,TRIM4#
main71420-95B11-06i199009-199109
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71420-95B11-06i198808-199009
W(SUSPENSION SEAT & FLAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71420-95B13-06i198708-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71420-95B13-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
main71430-37050-B0i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71430-37050-B0i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71430-37060-B0i199109-199505
GRAY,TRIM1#
main71430-37060-B0i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71430-95040-06i199009-199109
W(HEADREST & FRAME RESISTING),BROWN,TRIM4#
main71430-95040-06i198708-199008
W(FLAME RESISTING & HEADREST) OR W(SUSPENSION SEAT & FLAME RESISTING),BROWN,TRIM4#
main71430-95040-06i198808-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71430-95040-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71430-95482-06i199009-199109
W(SUSPENSION SEAT & HEADREST),BROWN,TRIM4#
main71430-95482-06i198708-199109
BROWN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
main71440-26060-B0i199109-199309
W(KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-26060-B0i199309-199505
W(KNIT FABRIC SEAT),GRAY,TRIM1#
main71440-26070-B0i199109-199309
GRAY,TRIM1#
main71440-26080-B0i199109-199309
W(HEADREST),GRAY,TRIM1#
main71440-26080-B0i199309-199505
GRAY,TRIM1#
main71440-37250-B0i199109-199309
W(SUSPENSION SEAT & KNIT FABRIC SEAT & HEADREST),GRAY,TRIM1#
main71440-37250-B0i199109-199309
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),GRAY,TRIM1#
main71440-37250-B0i199309-199505
W(SUSPENSION SEAT & KNIT FABRIC SEAT),GRAY,TRIM1#
main71440-37340-B0i199109-199505
W(SUSPENSION SEAT & HEADREST),GRAY,TRIM1#
main71440-95023-06i198708-199109
BROWN,TRIM4#
main71440-95025-06i198708-199109
W(HEADREST),BROWN,TRIM4#
main71440-95026-06i198708-199109
W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71440-95026-06i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST),BROWN,TRIM4#
main71440-95029-06i198708-199009
W(SUSPENSION SEAT),DARK BROWN,TRIM4#
main71440-95029-06i199009-199109
W(SUSPENSION SEAT & HEADREST),DARK BROWN,TRIM4#
main71440-95B53-06i198808-199009
W(SUSPENSION SEAT & FLAME RESISTING & HEADREST),DARK BROWN,TRIM4#
main71440-95B53-06i198708-199008
W(SUSPENSION SEAT & FLAME RESISTING),DARK BROWN,TRIM4#
main71440-95B53-06i199009-199109
W(SUSPENSION SEAT & FRAME RESISTING & HEADREST),DARK BROWN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71501-95400i198708-199505
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71511-95402i199109-199309
W(KNIT FABRIC SEAT & HEADREST)
main71511-95402i199109-199304
W(HEADREST & FRAME RESISTING)
main71511-95402i198708-199505
main71511-95402i198708-199109
W(FLAME RESISTING & HEADREST)
main71511-95402i198810-199109
FINLAND SPEC & W(FLAME RESISTING & HEADREST) OR W(FLAME RESISTING & HEADREST)
main71512-95405i198708-199505
W(SUSPENSION SEAT)
main71512-95405i199109-199309
W(SUSPENSION SEAT & HEADREST)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71552-95403i198708-199505
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71551-95404i198708-199009
W(HEADREST) OR W(SUSPENSION SEAT)
main71551-95404i198808-199309
W(HEADREST)
main71551-95404i199309-199505
main71551-95405i198708-199309
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-95J00i198708-199505
71812CCOVER, RECLINING ADJUSTER, LH
main71812-95J00-16i198708-199109
BROWN,TRIM4#
sub71812-95J00
main71812-95J00-B0i199109-199505
GRAY,TRIM1#
sub71812-95J00
71816ACOVER, FRONT SEAT CUSHION HINGE, LH
main71816-95J00-16i198708-199109
BROWN,TRIM4#
sub71816-95J00
main71816-95J00-B0i199109-199505
GRAY,TRIM1#
sub71816-95J00
71910AHEADREST ASSY, FRONT SEAT
main71910-37010-B0i199109-199205
GRAY,TRIM1#
sub71910-37010
main71910-37010-B1i199205-199207
GRAY,TRIM1#
sub71910-37010
main71910-37060-B2i199210-199505
GRAY,TRIM1#
main71910-95400-06i198708-198801
BROWN,TRIM4#
sub71910-37010
main71910-95401-06i198708-198801
W(HEADREST & FRAME RESISTING),BROWN,TRIM4#
sub71910-37010
main71910-95401-06i198801-199109
BROWN,TRIM4#
sub71910-37010
72090LOCK ASSY, FRONT SEATBACK
main72090-95400-06i198708-199109
BROWN,TRIM4#
sub72090-95400
main72090-95400-B0i199109-199505
GRAY,TRIM1#
sub72090-95400
72120TRACK ASSY, FRONT SEAT, OUTER LH
main72120-95A00i198708-199505
sub72120-37010
72520ADJUSTER ASSY, RECLINING SEATBACK, LH
main72520-95A05-06i198708-199109
BROWN,TRIM4#
sub72520-95A05
main72520-95A05-B0i199109-199505
GRAY,TRIM1#
sub72520-95A05
9011906214
main90119-06214
9011908079
main90119-08079
9011908086
main90119-08086
9011908469
main90119-08469
9011910116
main90119-10116
9014950039
main90149-50039
9016840043
main90168-40043
9017908039
main90179-08039
9038612018
main90386-12018
9046818071
main90468-18071
9052308001
main90523-08001
9053006001
main90530-06001
9053018003
main90530-18003
9161161020
main91611-61020

39 parts on this diagram · 2 diagrams in section

SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
