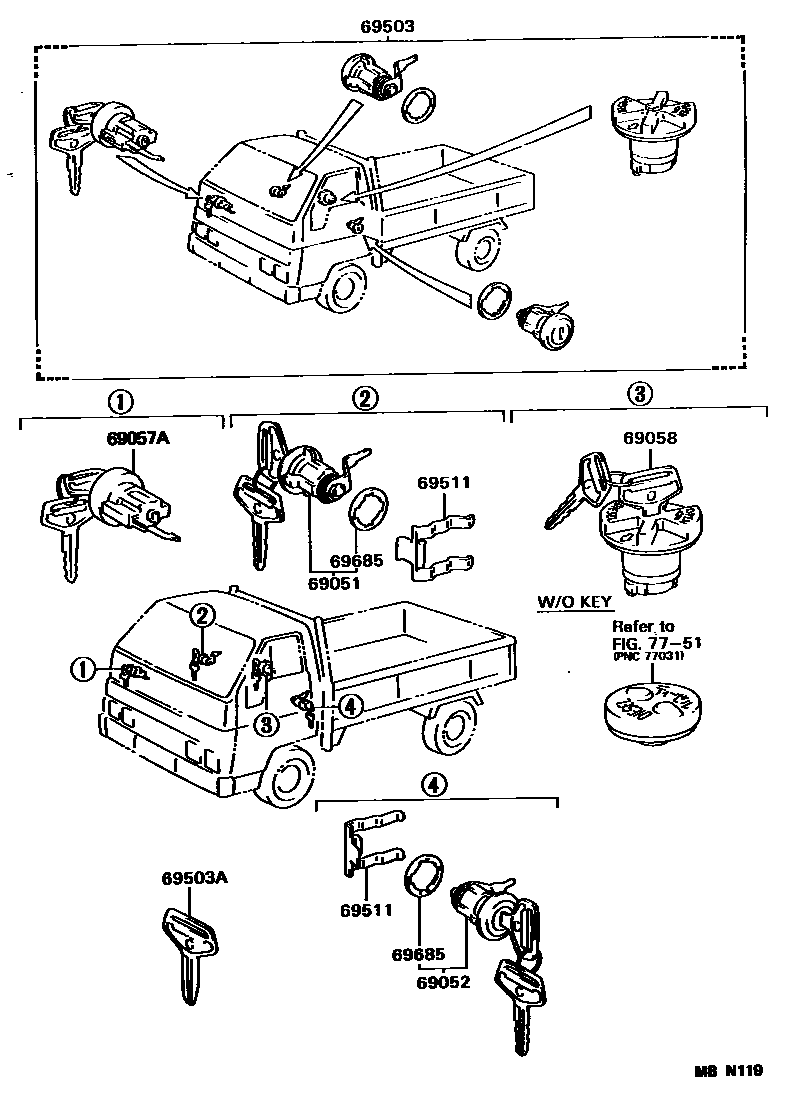

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-95404iLY6#,YY61198708-199505

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-95404iLY6#,YY61198708-199505

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-95415iLY6#,YY61198708-199505

sub69057-32100

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-95403iLY6#198708-199505

main69058-95404iYY61198708-198808

sub69058-60021

69503CYLINDER SET, LOCK

main69503-95470iLY6#,YY61198708-199309

main69503-95471iLY6#198708-199309

W(FUEL TANK CAP KEY)

main69503-95471iLY61199309-199505

main69503-95472iYY61198708-198808

W(FUEL TANK CAP KEY)

69503AKEY, BLANK

main90999-00084iLY6#,YY61198708-199505

MASTER KEY,W(*68)

sub90999-00214

main90999-00086iLY6#,YY61198708-199505

MASTER KEY

69511RETAINER, FRONT DOOR LOCK CYLINDER

main69511-95400iLY6#,YY61198708-199505

69685PAD, LOCK CYLINDER

main69513-32010iLY6#,YY61198708-199505

7751

9 parts on this diagram · 1 diagram in section
