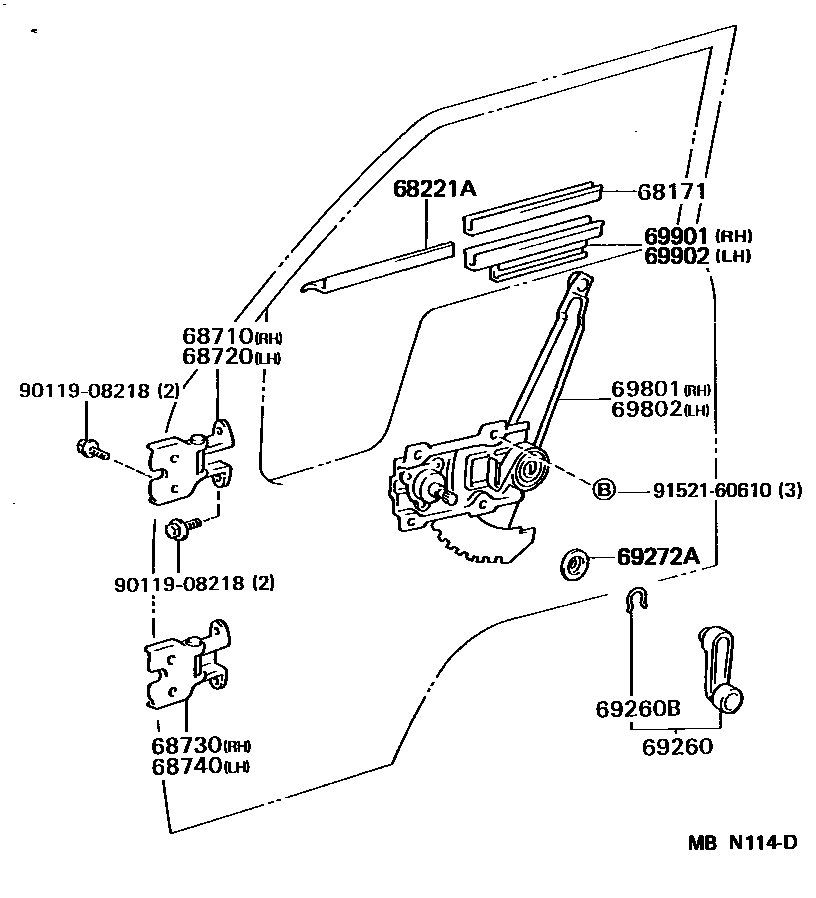

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68173-22010iLY61198808-199505

sub69971-95110

main68219-95400iLY60,YY61198708-198808

68221AWEATHERSTRIP, FRONT DOOR GLASS DRAIN

main68221-95401iLY60,YY61198708-198808

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95702iLY6#,YY61198708-199505

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68710-95702iLY6#,YY61198708-199505

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68710-95702iLY6#,YY61198708-199505

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-95702iLY6#,YY61198708-199505

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-06iLY6#,YY61198708-199109

BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-08iLY61199109-199308

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-B1iLY61199308-199505

BLUISH GRAY,TRIM1#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLY6#,YY61198708-199505

sub90520-01274

69272APLATE, DOOR WINDOW REGULATOR HANDLE

main69272-30010-08iLY6#,YY61198708-199109

NATURAL WHITE,TRIM4#

sub69272-30010

main69272-30010-08iLY61199109-199505

NATURAL WHITE,TRIM1#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95405iLY60,YY61198708-198808

main69810-95407iLY61198808-199505

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95407iLY60,YY61198708-198808

main69820-95409iLY61198808-199505

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95403iLY60,YY61198708-198808

main69901-95404iLY61198808-199505

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95403iLY60,YY61198708-198808

main69901-95404iLY61198808-199505

9011908218

main90119-08218

9152160610

main91521-60610

15 parts on this diagram · 2 diagrams in section
