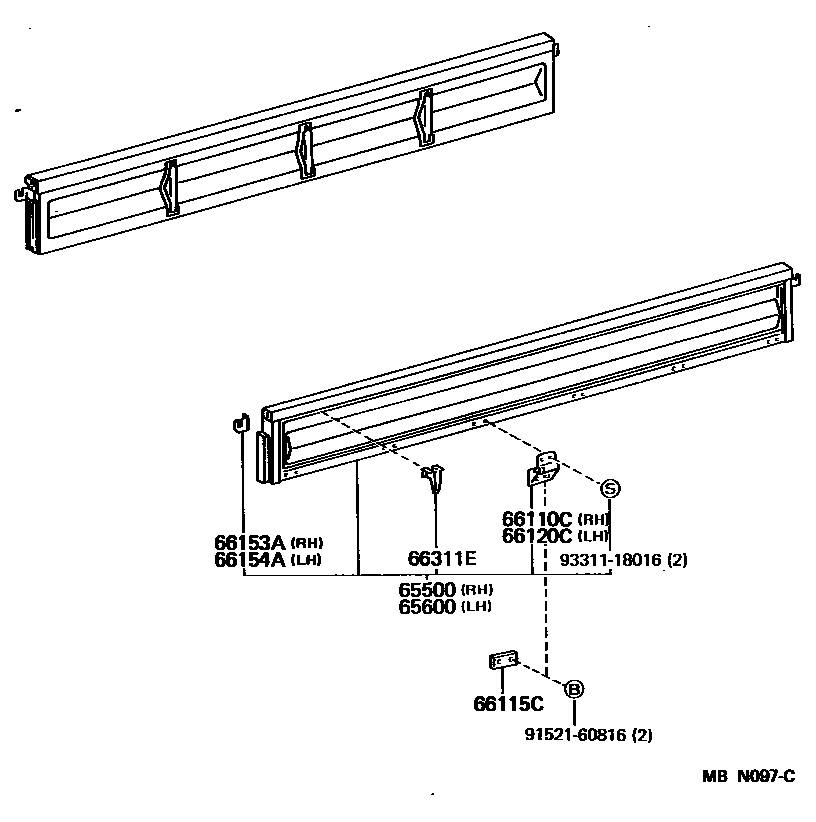

REAR BODY SIDE PANEL

65500PANEL ASSY, REAR BODY SIDE, RH

main65500-37040iLY61..CBU199101-199505

main65500-95411iLY60,YY61..CBU198708-198804

sub65500-95432

main65500-95432iLY6#,YY61..CBU198804-199101

sub65500-37040

65600PANEL ASSY, REAR BODY SIDE, LH

main65600-37040iLY61..CBU199101-199505

main65600-95409iLY60,YY61..CBU198708-198804

sub65600-95424

main65600-95424iLY6#,YY61..CBU198804-199101

sub65600-37040

66110CHINGE ASSY, SIDE GATE, NO.1 RH

main66110-95407iLY6#,YY61..CBU198708-199505

1ST,2ND,5TH,6TH

main66110-95409iLY6#,YY61..CBU198708-199505

3RD,4TH

66115CRETAINER, GATE HINGE

main66115-95012iLY6#,YY61..CBU198708-199402

sub66115-95018

main66115-95018iLY61..CBU199402-199505

66120CHINGE ASSY, SIDE GATE, NO.1 LH

main66110-95407iLY6#,YY61..CBU198708-199505

1ST,2ND,5TH,6TH

main66110-95409iLY6#,YY61..CBU198708-199505

3RD,4TH

66153ALATCH, TAIL GATE FEMALE, RH

main66153-95111iLY6#,YY61..CBU198708-199101

66154ALATCH, TAIL GATE FEMALE, LH

main66154-95111iLY6#,YY61..CBU198708-199505

66311EHOOK, ROPE

main66311-37010iLY61..CBU199101-199505

main66311-95400iLY6#,YY61..CBU198708-199101

sub66311-37010

9152160816

main91521-60816

9331118016

main93311-18016

10 parts on this diagram · 1 diagram in section
