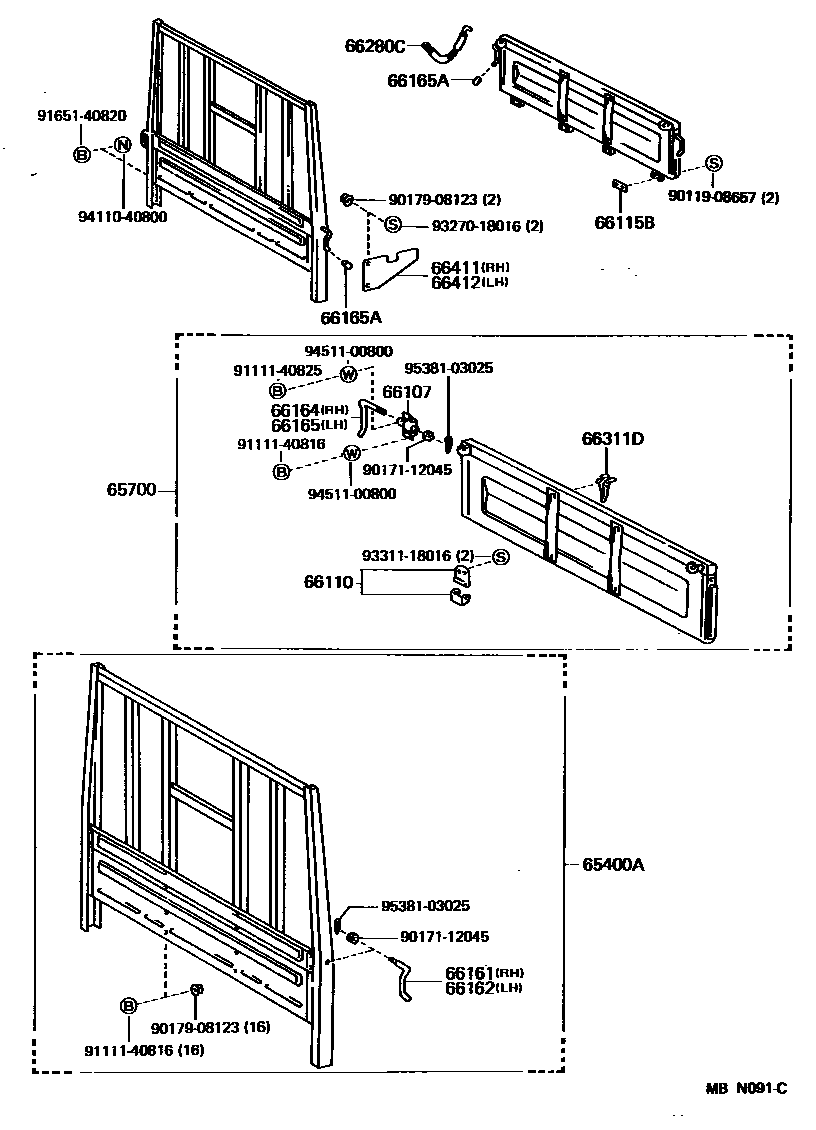

REAR BODY GUARD FRAME & TAIL GATE

65400AGUARD ASSY, REAR BODY

main65400-25120iLY61..CBU199104-199210

sub65400-25121

main65400-25121iLY61..CBU199210-199505

main65400-95061iLY6#,YY61..CBU198708-199101

sub65400-25120

65700GATE ASSY, REAR BODY TAIL

main65700-37020iLY61..CBU199101-199210

sub65700-37021

sub75995-37020

main65700-37021iLY61..CBU199210-199505

main65700-95414iLY60,YY61..CBU198708-198804

sub65700-95417

main65700-95417iLY61..CBU198901-199101

sub65700-37020

66107BRACKET SUB-ASSY, TAIL GATE, RH

main66107-95404iLY6#,YY61..CBU198708-199505

66110HINGE ASSY, TAIL GATE

main66110-95407iLY6#,YY61..CBU198708-199505

66115BRETAINER, GATE HINGE

main66115-95012iLY6#,YY61..CBU198708-199402

sub66115-95018

main66115-95018iLY61..CBU199402-199505

66161HANDLE, SIDE GATE LATCH, RH

main66161-95404iLY6#,YY61..CBU198708-199101

sub66163-37010

main66163-37010iLY61..CBU199101-199505

66162HANDLE, SIDE GATE LATCH, LH

main66162-95403iLY6#,YY61..CBU198708-199101

sub66164-37010

main66164-37010iLY61..CBU199101-199505

66164HANDLE, TAIL GATE LATCH, RH

main66163-95401iLY6#,YY61..CBU198708-199505

66165HANDLE, TAIL GATE LATCH, LH

main66164-95401iLY6#,YY61..CBU198708-199505

66165ACAP, GATE LATCH HANDLE

main66165-87402iLY6#,YY61..CBU198708-199505

66280CCHAIN ASSY, TAIL GATE

main66280-25020iLY61..CBU199311-199505

main66280-95011iLY6#,YY61..CBU198708-199311

sub66280-25020

66311DHOOK, ROPE

main66311-37010iLY61..CBU199101-199505

main66311-95400iLY6#,YY61..CBU198708-199101

sub66311-37010

66411BRACKET, GUARD FRAME, RH

main65207-37010iLY61..CBU199109-199505

main66401-95401iLY6#,YY61..CBU198708-199109

sub65207-37010

66412BRACKET, GUARD FRAME, LH

main66402-95401iLY6#,YY61..CBU198708-199505

9011908657

main90119-08657

9017112045

main90171-12045

9017908123

main90179-08123

9111140816

main91111-40816

9111140825

main91111-40825

9165140820

main91651-40820

9327018016

main93270-18016

9331118016

main93311-18016

9411040800

main94110-40800

9451100800

main94511-00800

9538103025

main95381-03025

25 parts on this diagram · 1 diagram in section
