SIDE MEMBER

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95011iLY6#,YY61..EUG198708-199505

sub58011-25010

main58011-95012iLY60..IV198708-198808

SWITZERLAND SPEC

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95012iLY6#,YY61..EUG198708-199505

main58012-95016iLY61..SWZ..IV198808-199008

main58012-95441iYY61..IV198708-198808

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95401iLY6#,YY61198708-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95401iLY6#,YY61198708-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37020iLY61198911-199505

main61027-95401iLY6#,YY61198708-198911

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37040iLY61199301-199505

main61028-95400iLY61..ST198808-199009

sub61028-37030

main61028-95401iLY61199009-199301

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLY6#,YY61198708-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLY6#,YY61198708-199505

61231RAIL, ROOF SIDE, INNER RH

main61231-95406iLY6#,YY61198708-199505

61232RAIL, ROOF SIDE, INNER LH

main61232-95405iLY6#,YY61198708-199505

sub61232-95406

61261CHANNEL, ROOF DRIP, RH

main61261-95406iLY60,YY61198708-198808

main61261-95407iLY6#,YY61198708-199505

61262CHANNEL, ROOF DRIP, LH

main61262-95406iLY60,YY61198708-198808

main61262-95407iLY6#,YY61198708-199505

61267ACHANNEL, ROOF DRIP SIDE, REAR RH

main61267-95400iLY61198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iLY61198808-199505

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-95401iLY6#,YY61198708-199505

sub64015-95411

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-95401iLY6#,YY61198708-199505

sub64016-95415

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-95402iLY61..SWZ..IV198808-199008

main64103-95403iLY61..EUG;LY61..SWZ..CBU198808-199505

main64103-95408iLY60;YY61..CBU198708-198808

main64103-95409iLY60..IV198708-198808

SWITZERLAND SPEC

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-95402iLY60..IV198708-198808

SWITZERLAND SPEC

main64104-95403iLY61..EUG;LY61..SWZ..CBU198808-199505

main64104-95410iLY60;YY61..CBU198708-198808

main64104-95411iLY60..IV198708-198808

SWITZERLAND SPEC

64163ACOVER, BACK CORNER, INNER

main64163-95404×2iLY60,YY61198708-198808

main64163-95410-06×2iLY61198808-199109

BROWN,TRIM4#

sub64163-95901

main64163-95410-13×2iLY61199109-199505

GRAY,TRIM1#

sub64163-95901

9015960058

main90159-60058

9095001454

main90950-01454

9095006001

main90950-06001

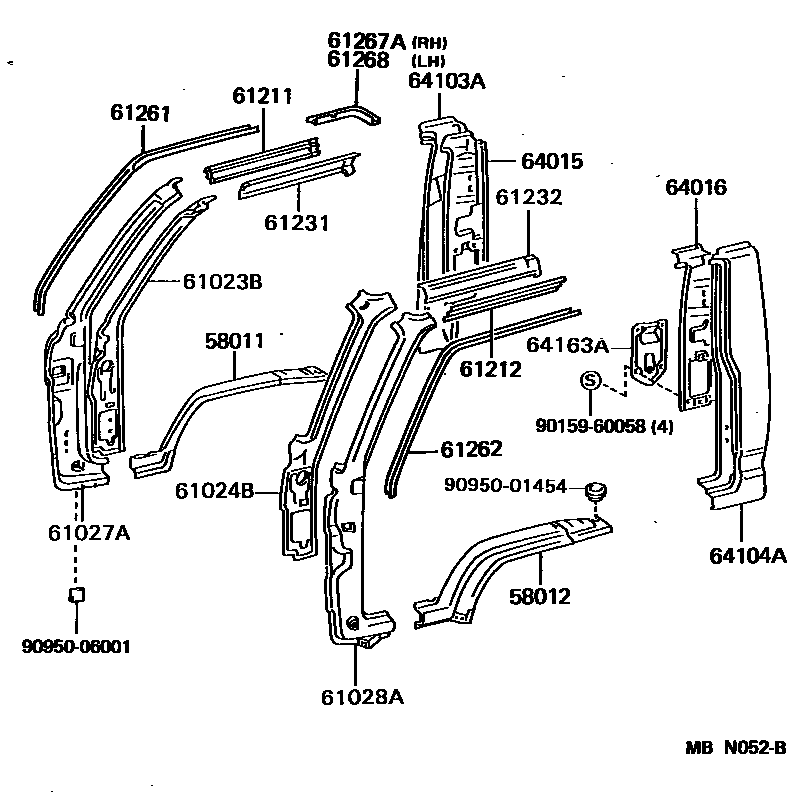

22 parts on this diagram · 1 diagram in section
