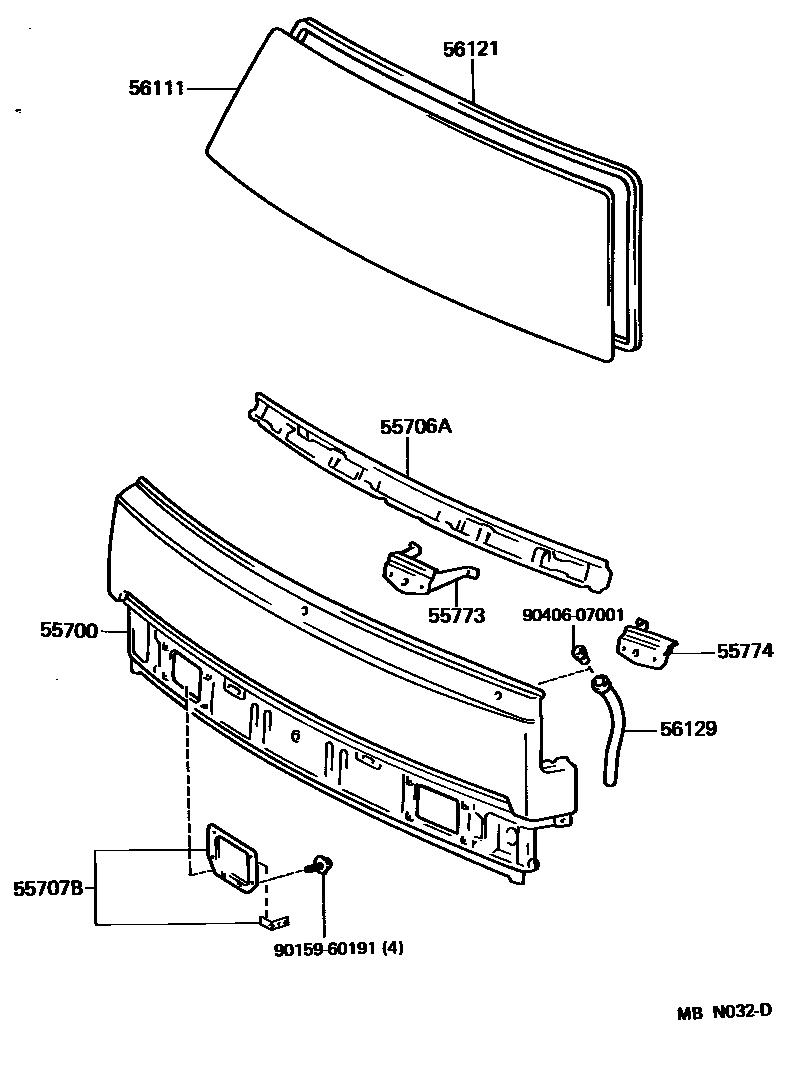

FRONT PANEL & WINDSHIELD GLASS

55700PANEL ASSY, FRONT

main55701-95444iLY61..ST198808-199210

sub55701-95445

main55701-95445iLY6#,YY61..WT198708-199505

55706AREINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER

main55706-95406iLY6#,YY61198708-199505

55707BSHUTTER SUB-ASSY, FRONT AIR

main55707-95404iLY6#,YY61198708-199505

55773RETAINER, WIPER SHAFT, CENTER

main55773-95406iLY6#,YY61198708-199505

55774RETAINER, WIPER SHAFT SIDE

main55774-95403iLY6#,YY61198708-199505

56111GLASS, WINDSHIELD

main56111-37010iLY61199109-199505

*TL,T=5.7

main56111-37020iLY61..ST199109-199207

*LAM,T=5.7,BRONZE,W(TOP SHADE)

main56111-95415iLY6#,YY61198708-199505

*ZT,T=5.0

sub56111-95416

main56111-95416iLY6#,YY61198708-199109

*LAM,T=5.3

sub56111-95417

main56111-95417iLY61..ST198808-199109

*LAM,T=5.3,W(TOP SHADE)

56121WEATHERSTRIP, WINDSHIELD

main56121-95A06iLY6#,YY61198708-199505

56129HOSE, WINDSHIELD DRAIN

main56129-95400iLY6#,YY61198708-199505

sub56129-95J00

9015960191

main90159-60191

9040607001

main90406-07001

10 parts on this diagram · 1 diagram in section
