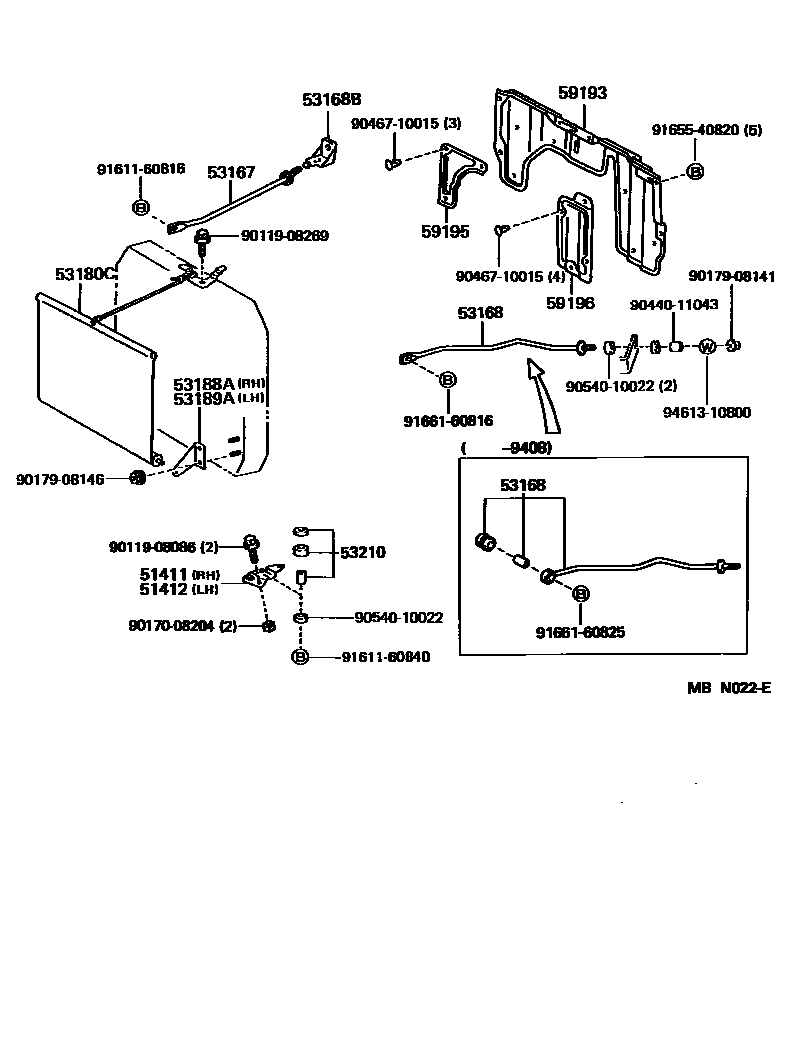

RADIATOR SUPPORT & WIND GUIDE

51411BRACKET, RADIATOR SUPPORT, RH

main51411-25010iLY6#,YY61198708-199505

51412BRACKET, RADIATOR SUPPORT, LH

main51412-25010iLY6#,YY61198708-199505

53167ROD, RADIATOR BRACE, RH

main53167-25130iLY6#,YY61198708-199505

53168ROD, RADIATOR BRACE, LH

main53018-25010iLY6#,YY61198708-199301

sub53018-25011

main53018-25011iLY61199301-199408

sub53169-25122

main53169-25122iLY61199408-199505

53168BBRACKET, RADIATOR BRACE ROD

main53168-25020iLY6#,YY61198708-199505

53180CSHUTTER ASSY, RADIATOR

main53180-95011iLY60198708-198808

sub53180-95014

main53180-95014iLY61..WT198808-199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main87543-95011iLY6#..WT198708-199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main87544-95011iLY6#..WT198708-199505

53210SUPPORT ASSY, RADIATOR

main53210-26010iLY61199008-199505

59193GUARD, NOISE SHUTTER

main59193-95010iLY61..WT198808-199505

59195INSULATOR, NOISE SHUTTER

main59195-95010iLY61..WT198808-199505

59196SEAL, NOISE SHUTTER, UPPER NO.1

main59196-95010iLY61..WT198808-199505

9011908086

main90119-08086

9011908269

main90119-08269

9017008204

main90170-08204

9017908141

main90179-08141

9017908146

main90179-08146

9044011043

main90440-11043

9046710015

main90467-10015

9054010022

main90540-10022

9161160816

main91611-60816

9161160840

main91611-60840

9165540820

main91655-40820

9166160816

main91661-60816

9166160825

main91661-60825

9461310800

main94613-10800

26 parts on this diagram · 1 diagram in section
