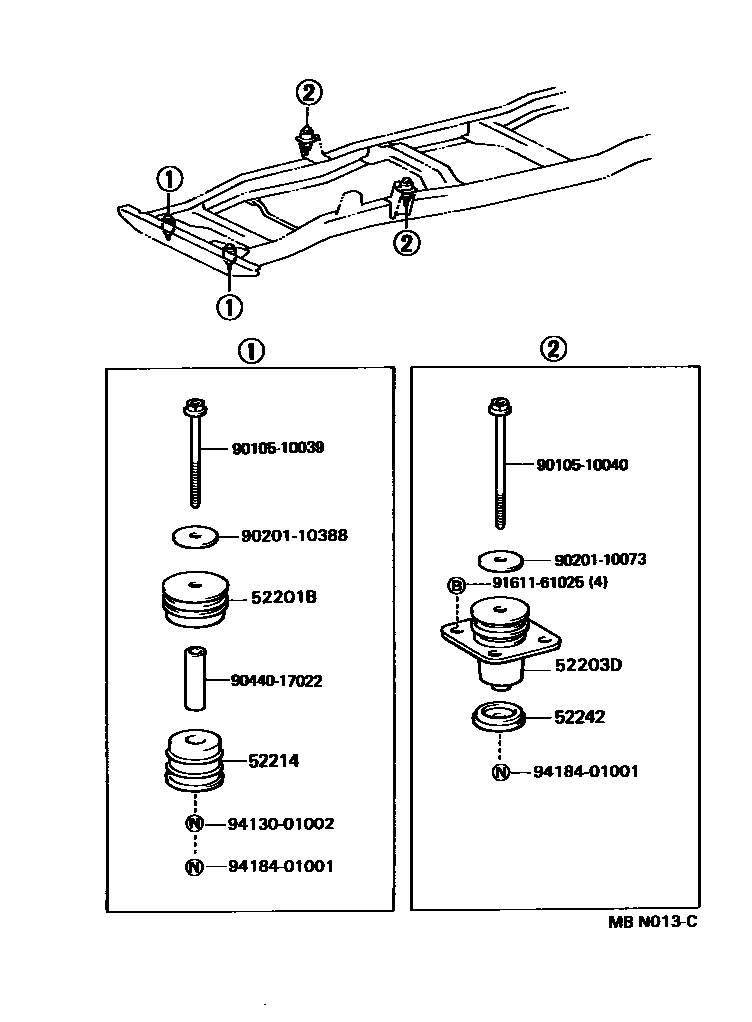

CAB MOUNTING & BODY MOUNTING

52201BCUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-25030iLY6#,YY61198708-199505

52203DCUSHION SUB-ASSY, CAB MOUNTING, NO.2 UPPER

main52203-25040iLY6#,YY61198708-199102

sub52203-25041

main52203-25041iLY61199102-199505

52214CUSHION, BODY MOUNT, NO.1 LOWER

main52202-25030iLY6#,YY61198708-199505

52242CUSHION, CAB REAR MOUNTING REBOUND

main52242-25030iLY6#,YY61198708-199505

9010510039

main90105-10039

9010510040

main90105-10040

9020110073

main90201-10073

9020110388

main90201-10388

9044017022

main90440-17022

9161161025

main91611-61025

9413001002

main94130-01002

9418401001

main94184-01001

12 parts on this diagram · 1 diagram in section
