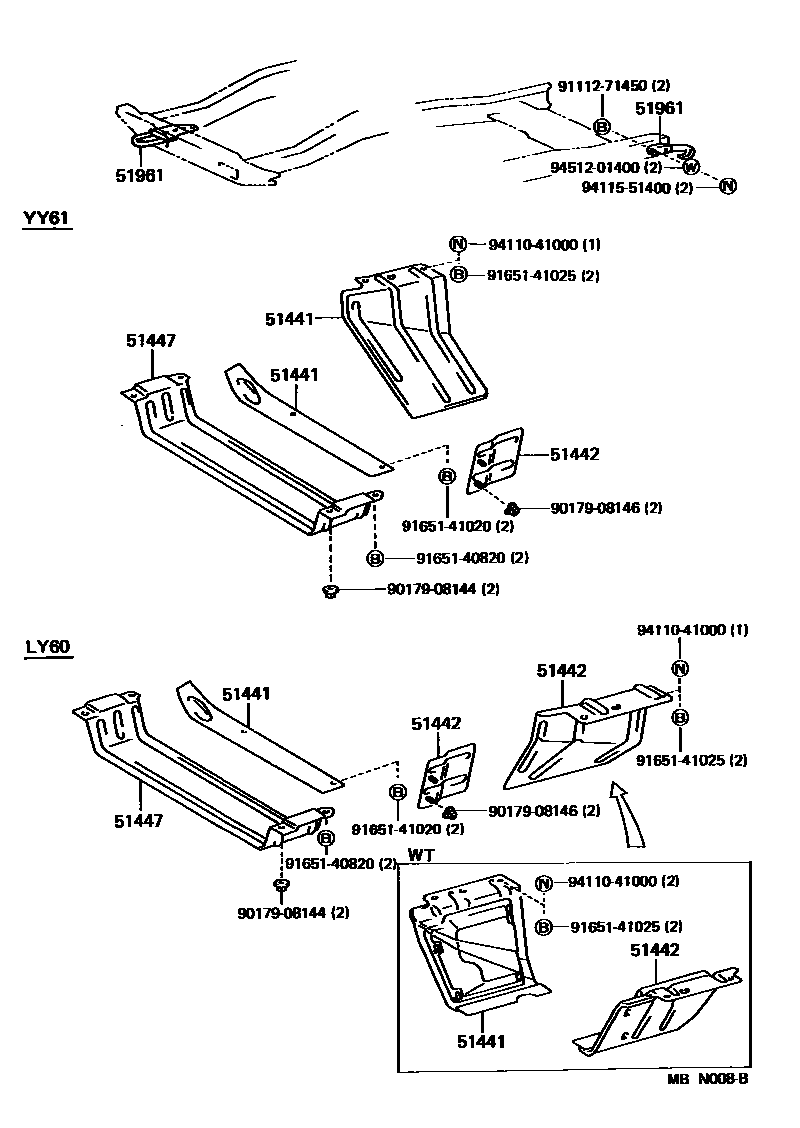

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51441COVER, ENGINE UNDER, NO.1

main51406-25030iLY61198808-199505

CTR

main51408-25010iLY60198708-198808

RR

main51441-25130iYY61198708-198808

RR

main51441-25160iLY60,YY61198708-198808

FR

main51441-25170iLY61..WT198808-199505

FR

main51441-25190iLY61198808-199505

RR

51442COVER, ENGINE UNDER, NO.2

main51407-25030iLY61198808-199505

CTR

main51407-25040iLY61..ST198808-199207

RR

main51409-25010iLY60198708-198808

RR

main51442-25050iYY61198708-198808

FR

main51442-25070iLY61198808-199505

FR

main51442-25090iLY61..WT198808-199505

RR

51447GUIDE, ENGINE UNDER COVER AIR

main51447-25070iLY60,YY61198708-198808

main51447-25080iLY61198808-199505

51961HOOK, NO.1

main51961-25020iLY6#,YY61198708-199505

FR

main51961-36010iLY6#,YY61198708-199505

RR

9017908144

main90179-08144

9017908146

main90179-08146

9111271450

main91112-71450

9165140820

main91651-40820

9165141020

main91651-41020

9165141025

main91651-41025

9411041000

main94110-41000

9411551400

main94115-51400

9451201400

main94512-01400

13 parts on this diagram · 2 diagrams in section
