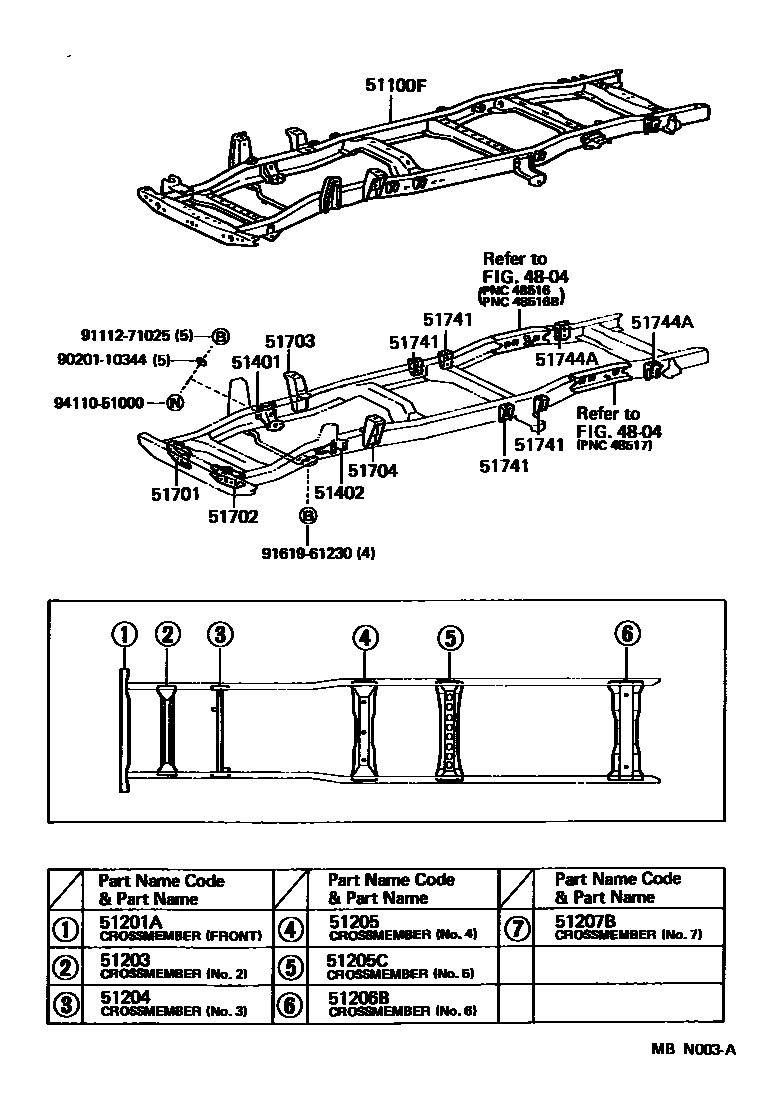

FRAME

4804

51100FFRAME SUB-ASSY

main51002-25720iLY61..ST198808-199109

main51002-25721iLY61..ST199109-199505

main51002-25790iLY6#,YY61..WT198708-199109

main51002-25791iLY61..WT199109-199505

51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT

main51211-25090iLY6#,YY61198708-199505

sub51211-25091

51203CROSSMEMBER SUB-ASSY, FRAME, NO.2

main51202-25130iLY6#,YY61198708-199505

51204CROSSMEMBER SUB-ASSY, FRAME, NO.3

main51203-25110iLY60,YY61198708-198808

sub51203-25111

main51203-25111iLY61198808-199505

51205CROSSMEMBER SUB-ASSY, FRAME, NO.4

main51204-25060iLY6#,YY61198708-199008

sub51204-25061

main51204-25061iLY61199008-199505

51205CCROSSMEMBER SUB-ASSY, FRAME, NO.5

main51205-25050iLY6#,YY61198708-199008

sub51205-25051

main51205-25051iLY61199008-199505

51206BCROSSMEMBER SUB-ASSY, FRAME, NO.6

main51206-25100iLY61..ST198808-199008

sub51206-25101

main51206-25101iLY61..ST199008-199505

sub51206-25111

51207BCROSSMEMBER SUB-ASSY, FRAME, NO.7

main51206-25090iLY6#,YY61..WT198708-199505

main51207-25050iLY61..ST198808-199505

51401BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-25150iLY6#,YY61198708-199505

sub51401-25151

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51401-25150iLY6#,YY61198708-199505

sub51401-25151

51701BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH

main51701-25050iLY6#,YY61198708-199505

51702BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH

main51702-25010iLY6#,YY61198708-199505

51703BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH

main51703-25090iLY6#,YY61198708-199505

51704BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH

main51704-25030iLY6#,YY61198708-199505

51741BRACKET, REAR BODY MOUNTING, NO.1

main51741-25040iLY61..ST198808-199505

51744ABRACKET, REAR BODY MOUNTING, NO.4

main51744-25020iLY61..ST198808-199505

9020110344

main90201-10344

9111271025

main91112-71025

9161961230

main91619-61230

9411051000

main94110-51000

21 parts on this diagram · 1 diagram in section
