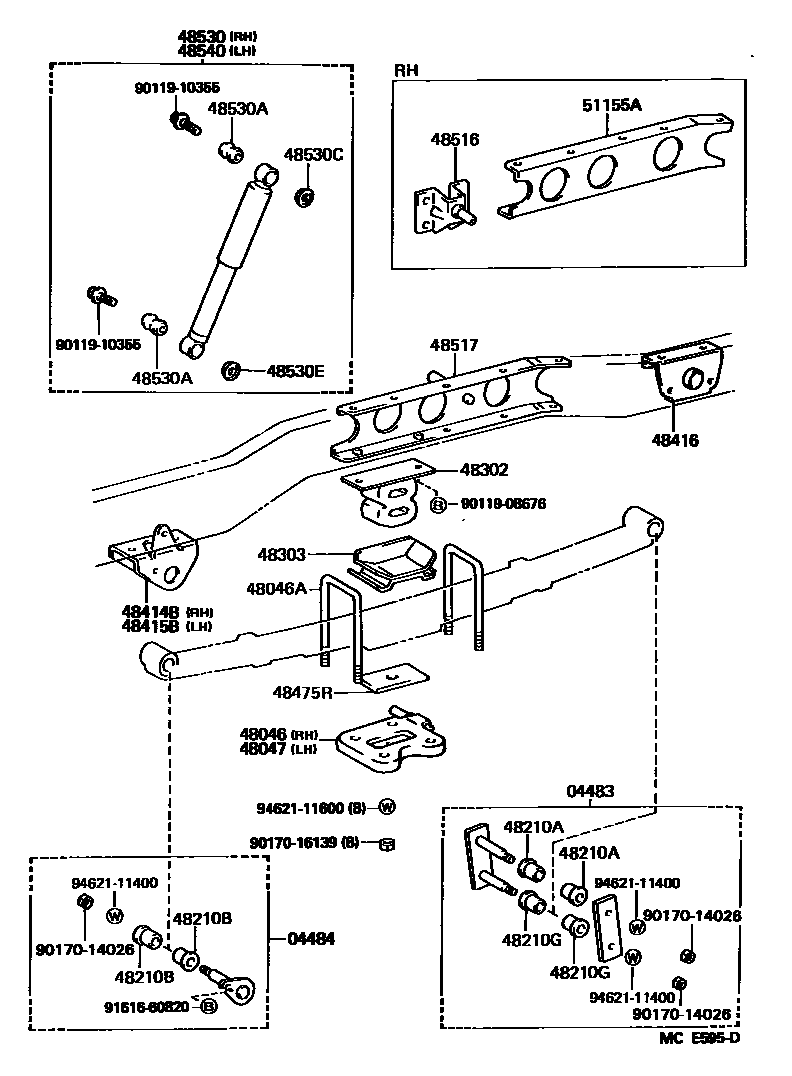

REAR SPRING & SHOCK ABSORBER
04483SHACKLE KIT, REAR SPRING
04484PIN KIT, REAR SPRING
sub04482-25020
48046ABOLT, U(FOR REAR SPRING)
L=170
L=200
L=200,DENMARK SPEC
L=190
48210SPRING ASSY, REAR RH
5-LEAF
4-LEAF
4-LEAF,DENMARK SPEC
48210ABUSH(FOR REAR SPRING SHACKLE UPPER)
48210BBUSH(FOR REAR SPRING PIN)
48210GBUSH(FOR REAR SPRING SHACKLE LOWER)
48302SPRING SUB-ASSY, HOLLOW
DENMARK SPEC
48303SEAT SUB-ASSY, HOLLOW SPRING
48414BBRACKET, SPRING, NO.3 RH
48415BBRACKET, SPRING, NO.3 LH
48416BRACKET, SPRING, NO.4
RH
LH
48475RPLATE, DISTANCE(FOR REAR)
DENMARK SPEC
48516BRACKET, REAR SHOCK ABSORBER, UPPER RH
48517BRACKET, REAR SHOCK ABSORBER, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
9011908676
main90119-08676
9011910355
main90119-10355
9017014026
main90170-14026
9017016139
main90170-16139
9161660820
main91616-60820
9462111400
main94621-11400
9462111600
main94621-11600
30 parts on this diagram · 3 diagrams in section
