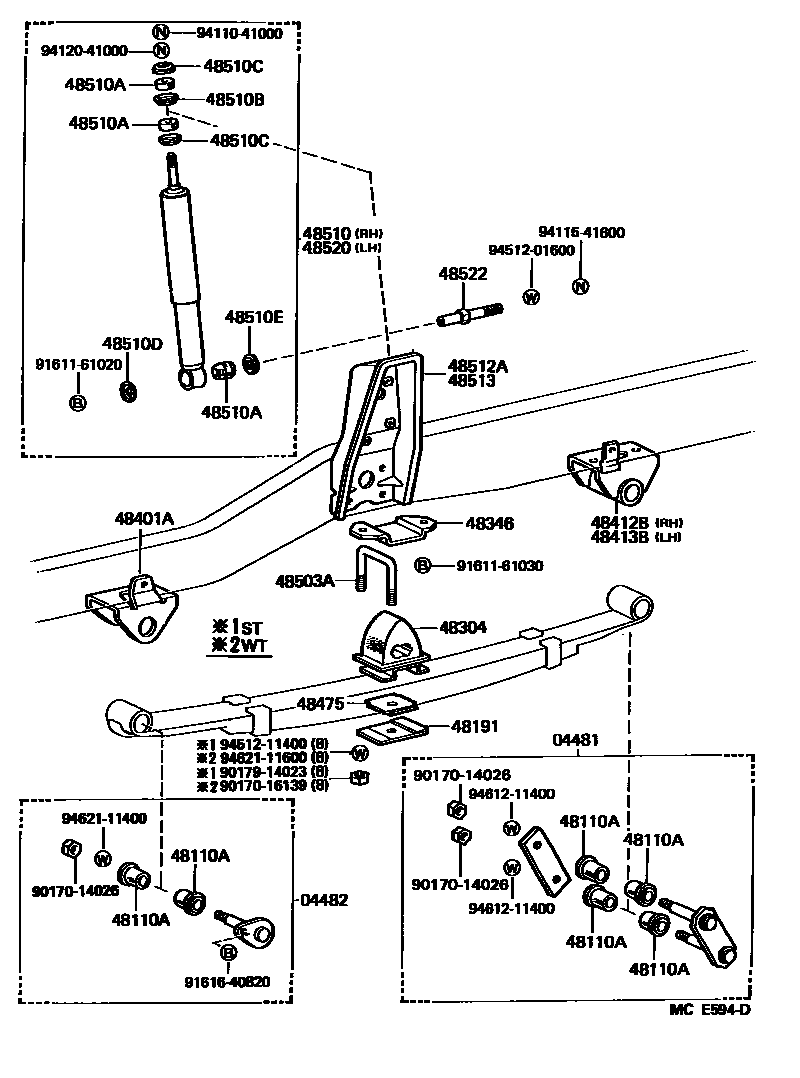

FRONT SPRING & SHOCK ABSORBER
04481SHACKLE KIT, FRONT SPRING
sub04481-25050
04482PIN KIT, FRONT SPRING
sub04482-25020
48110SPRING ASSY, FRONT, RH
5-LEAF
48110ABUSH(FOR FRONT SPRING SHACKLE)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48304BUMPER SUB-ASSY, FRONT SPRING, NO.1
48401ABRACKET SUB-ASSY, SPRING, NO.1
48412BBRACKET, SPRING, NO.2 RH
sub48403-25010
48413BBRACKET, SPRING, NO.2 LH
sub48043-25010
48475PLATE, DISTANCE(FOR FRONT)
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
L=95
L=90
L=95
L=85
48510ABSORBER ASSY, SHOCK, FRONT RH
48510ACUSHION, FRONT SHOCK ABSORBER
LWR
UPR
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH
48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48520ABSORBER ASSY, SHOCK, FRONT LH
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
9017014026
main90170-14026
9017016139
main90170-16139
9017914023
main90179-14023
9161161020
main91611-61020
9161161030
main91611-61030
9161640820
main91616-40820
9411041000
main94110-41000
9411541600
main94115-41600
9412041000
main94120-41000
9451201600
main94512-01600
9451211400
main94512-11400
9461211400
main94612-11400
9462111400
main94621-11400
9462111600
main94621-11600
36 parts on this diagram · 2 diagrams in section
