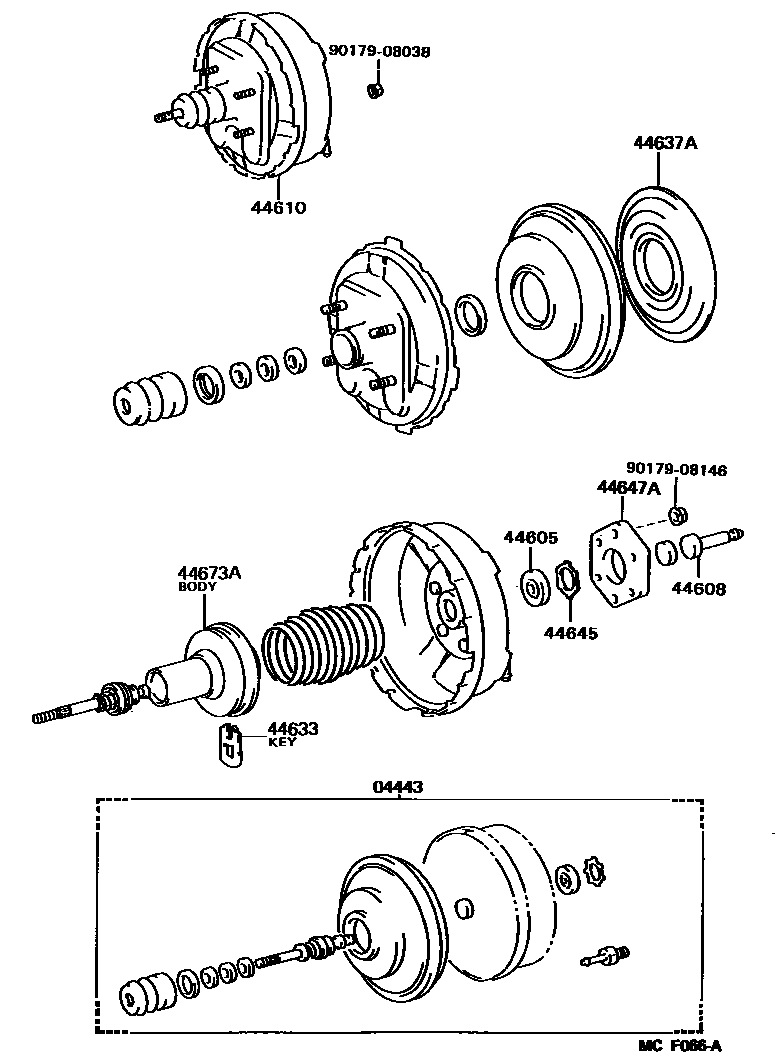

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-25130iYY61¥12,900198708-198808

main04443-25140iLY6#¥12,900198708-199505

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-36220iLY6#,YY61¥990198708-199505

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-25150iLY6#,YY61198708-199505

44610BOOSTER ASSY, BRAKE

main44610-25160iLY6#,YY61¥51,000198708-199505

44633KEY, BOOSTER VALVE PLUNGER

main44633-28130iLY6#,YY61¥640198708-199505

44637APLATE, BOOSTER DIAPHRAGM

main44637-25150iLY6#,YY61¥4,060198708-199505

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-36220iLY6#,YY61¥590198708-199505

44647AROD, BOOSTER PISTON

main44647-25150iLY6#,YY61198708-199505

44673ABODY, BOOSTER VALVE

main44673-25150iLY6#,YY61¥5,400198708-199505

9017908038

main90179-08038¥130

9017908146

main90179-08146¥180

11 parts on this diagram · 3 diagrams in section
