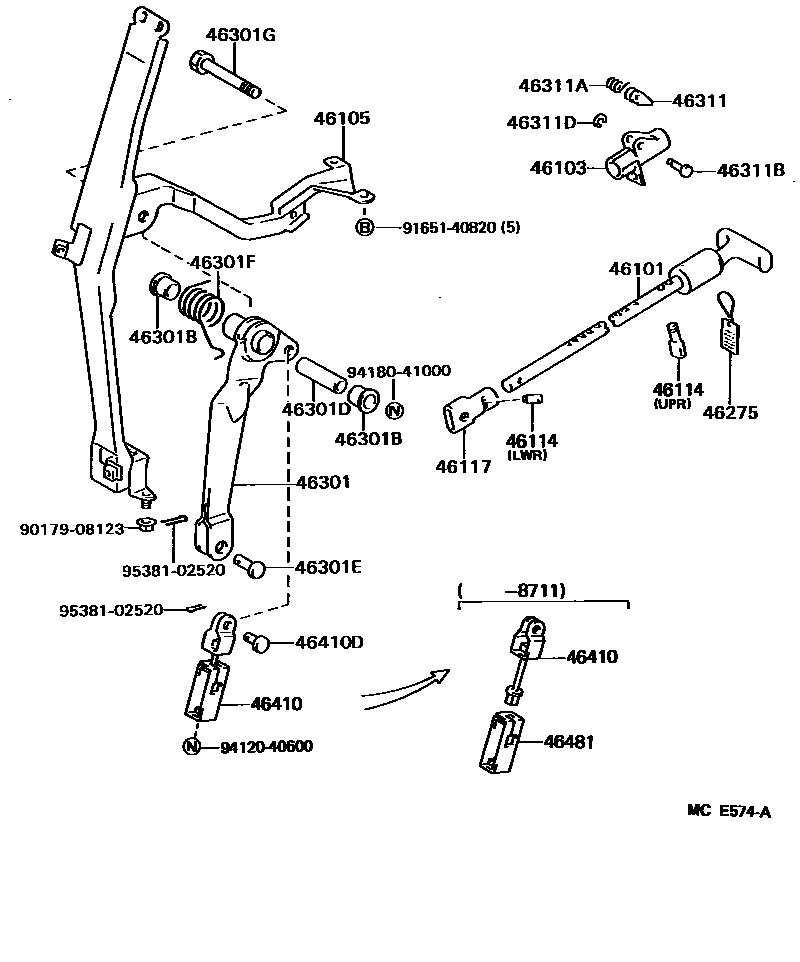

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46101HANDLE SUB-ASSY, PARKING BRAKE CONTROL

main46101-36190-01iLY6#,YY61198708-199109

BLACK,TRIM4#

sub46101-36190

main46101-36191iLY61199109-199505

46103GUIDE SUB-ASSY, PARKING BRAKE PLUNGER

main46103-36150iLY6#,YY61198708-199505

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-25020iLY6#,YY61198708-199109

sub46105-25021

main46105-25021iLY61199109-199505

46114PIN, PARKING BRAKE PLUNGER

main46114-20010iLY6#,YY61198708-199505

UPR

main46114-30010iLY6#,YY61198708-199505

LWR

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30020iLY6#,YY61198708-199505

46275PLATE, PARKING BRAKE RELEASE CAUTION

main46275-26010iLY6#,YY61198708-199505

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-36070iLY6#,YY61198708-199505

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-13007iLY6#,YY61198708-199505

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10004iLY6#,YY61198708-199505

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-08010iLY6#,YY61198708-199505

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-35024iLY6#,YY61198708-199505

46301GBOLT(FOR INTERMEDIATE LEVER)

main91111-71070iLY6#,YY61198708-199505

46311PAWL, PARKING BRAKE

main46311-26010iLY6#,YY61198708-199505

46311ASPRING(FOR PARKING BRAKE PAWL)

main90508-08041iLY6#,YY61198708-199505

46311BPIN, PARKING BRAKE PAWL PIVOT

main90249-05010iLY6#,YY61198708-199505

46311DWASHER, TYPE C(FOR PARKING BRAKE PAWL)

main90213-03007iLY6#,YY61198708-199505

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-36121iLY60,YY61198708-198711

sub46410-36350

main46410-36350iLY6#,YY61198711-199505

46410DPIN(FOR PARKING BRAKE FRONT CABLE)

main90240-08094iLY6#,YY61198708-199505

46481CONNECTOR, PARKING CABLE

main46481-36012iLY60,YY61198708-198711

9017908123

main90179-08123

9165140820

main91651-40820

9412040600

main94120-40600

9418041000

main94180-41000

9538102520

main95381-02520

24 parts on this diagram · 3 diagrams in section
