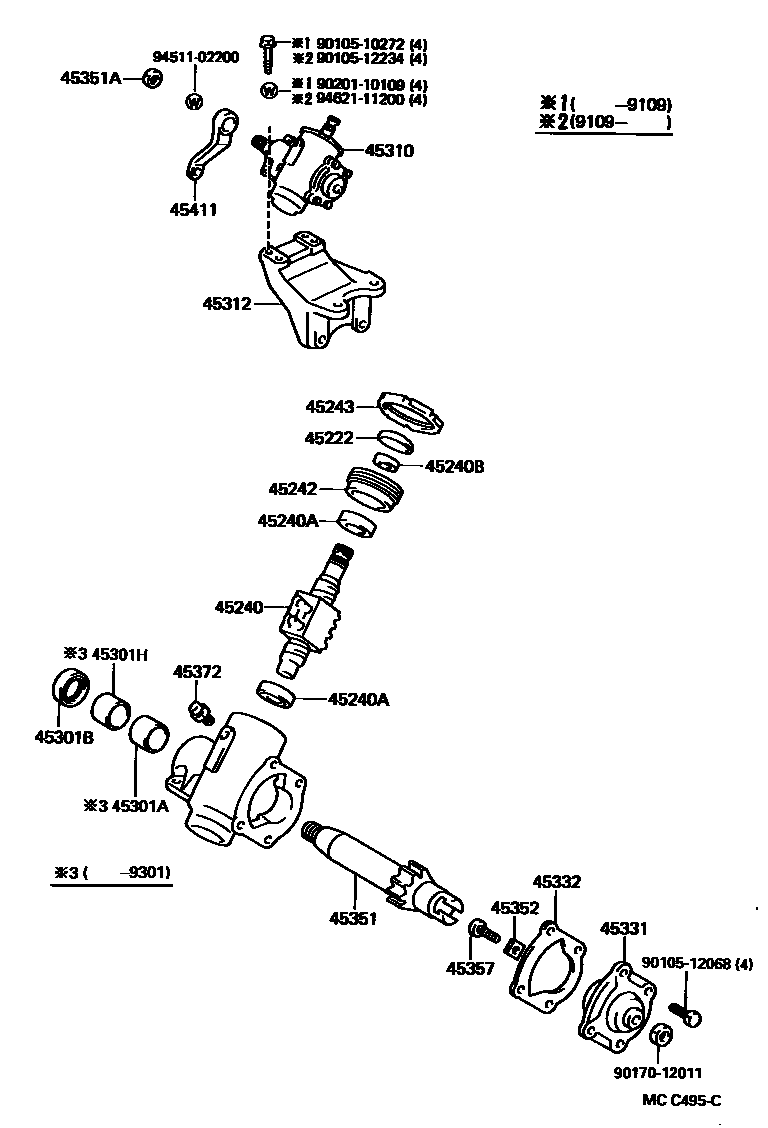

FRONT STEERING GEAR & LINK

0001 1 0002 1

45222COVER, STEERING GEAR DUST

main45222-26010iLY6#,YY61198708-199505

45240WORM ASSY, STEERING

main45240-60040iLY6#,YY61198708-199505

45240ABEARING(FOR STEERING WORM)

main90363-20024iLY6#,YY61198708-199505

45240BSEAL, OIL(FOR STEERING WORM)

main90311-18010iLY6#,YY61198708-199505

45242SCREW, WORM BEARING ADJUSTING

main45242-25010iLY6#,YY61198708-199505

45243NUT, WORM BEARING ADJUSTING SCREW LOCK

main45243-60020iLY6#,YY61198708-199505

45301ABUSH OR BEARING, SECTOR SHAFT, NO.1

main90999-73061iLY6#,YY61198708-199301

45301BSEAL, OIL(FOR SECTOR SHAFT)

main90310-32005iLY60,YY61198708-198801

sub90311-32014

main90311-32014iLY6#,YY61198801-199505

45301HBUSH OR BEARING, SECTOR SHAFT, NO.2

main90999-73061iLY6#,YY61198708-199301

45310HOUSING ASSY, STEERING GEAR

main45310-25070iLY6#,YY61198708-199109

sub45310-25090

sub90105-10354

sub94621-11200

main45310-25090iLY61199109-199505

45312BRACKET, STEERING GEAR HOUSING

main45312-25160iLY6#,YY61198708-199106

main45312-25180iLY61199106-199505

45331COVER, SECTOR SHAFT END

main45304-25020iLY6#,YY61198708-199505

45332GASKET, SECTOR SHAFT END COVER

main45332-26010iLY6#,YY61198708-199505

45351SHAFT, STEERING SECTOR

main45351-25020iLY6#,YY61198708-199505

45351ANUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING)

main90170-22058iLY6#,YY61198708-199505

45352WASHER, SECTOR SHAFT THRUST

main45352-37010iLY6#,YY61198708-199505

T=1.95

main45353-37010iLY6#,YY61198708-199505

T=2.00

main45354-37010iLY6#,YY61198708-199505

T=2.05

45357SCREW, SECTOR SHAFT ADJUSTING

main45357-36010iLY6#,YY61198708-199505

sub45357-37020

45372PLUG, STEERING GEAR HOUSING OIL

main90930-03058iLY6#,YY61198708-199505

45411ARM, PITMAN

main45411-25211iLY6#,YY61198708-199505

9010510272

main90105-10272

9010512068

main90105-12068

9010512234

main90105-12234

9017012011

main90170-12011

9020110109

main90201-10109

9451102200

main94511-02200

9462111200

main94621-11200

26 parts on this diagram · 2 diagrams in section
