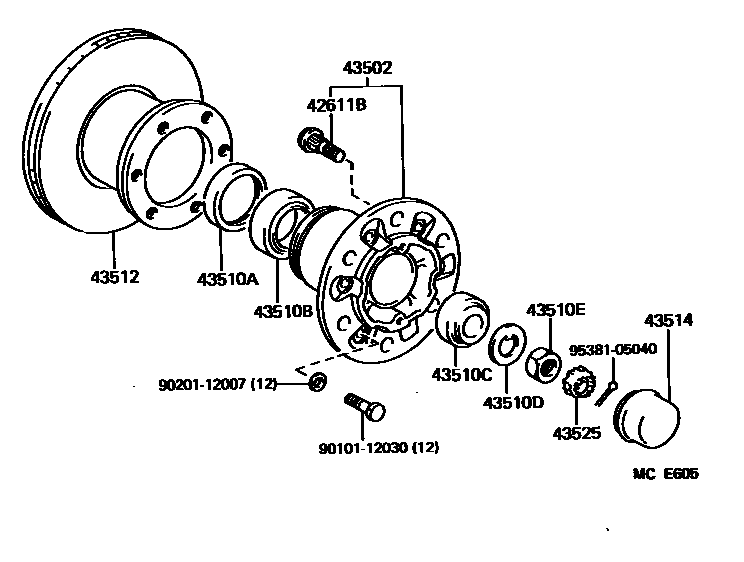

FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02058iLY61..ST198808-199505

sub90942-02112

main90942-02061iLY6#,YY61..WT198708-199505

RH

main90942-02062iLY6#,YY61..WT198708-199505

LH

43502HUB SUB-ASSY, FRONT AXLE

main43501-25010iLY6#,YY61..WT198708-199505

RH

sub43501-37020

main43502-25020iLY61..ST198808-199505

sub43502-29075

main43502-25030iLY6#,YY61..WT198708-199505

LH

sub43502-37020

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-50003iLY61..ST198808-199505

main90311-68001iLY6#,YY61..WT198708-199505

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-35004iLY61..ST198808-199505

main90368-42045iLY6#,YY61..WT198708-199505

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007iLY61..ST198808-199505

sub90366-22002

main90368-28001iLY6#,YY61..WT198708-199505

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-23004iLY61..ST198808-199505

main90214-27001iLY6#,YY61..WT198708-199505

43510ENUT (FOR STEERING KNUCKLE)

main90170-22003iLY61..ST198808-199505

main90170-26001iLY6#,YY61..WT198708-199505

43512DISC, FRONT

main43512-25020iLY61..ST198808-199505

main43512-25050iLY6#,YY61..WT198708-199505

43514CAP, FRONT HUB GREASE

main43514-25010iLY61..ST198808-199505

main43514-36030iLY6#,YY61..WT198708-199505

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-25010iLY61..ST198808-199505

main43525-36010iLY6#,YY61..WT198708-199505

9010112030

main90101-12030

9020112007

main90201-12007

9538105040

main95381-05040

13 parts on this diagram · 1 diagram in section
