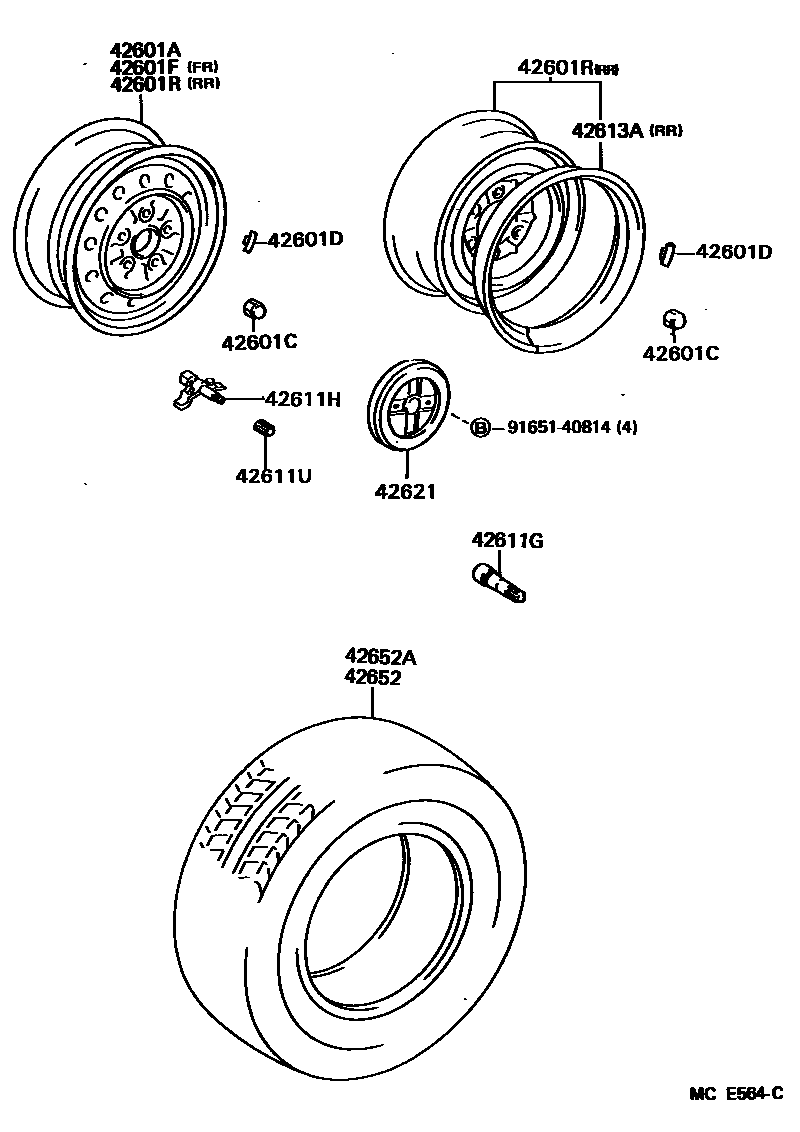

DISC WHEEL & WHEEL CAP
42601AWHEEL, DISC (FOR SPARE)
15X5.5K, #,GRAY
14X5J,GRAY
42601CNUT, HUB (FOR AXLE)
RR,RH
RR
RR,LH
FR,RH
FR,LH
42601DWEIGHT, BALANCE (FOR DISC WHEEL)
20G,T=8
30G,T=10
40G,T=9.5
50G,T=9.5
60G,T=9.5
70G,T=9.5
80G,T=9.5
10G,T=7.5
42601FWHEEL, DISC (FOR FRONT)
15X4.5K, #,GRAY
14X5J,GRAY
42601RWHEEL, DISC (FOR REAR)
15X5.5K, #,GRAY
14X5J,GRAY
42611GVALVE (FOR TUBELESS TIRE)
42611HEXTENSION, VALVE
42611UCAP, TIRE VALVE
42613ARING, DISC WHEEL SIDE
42621CAP, WHEEL
42652TIRE
6.00-15-8,W(TUBE)
6.00R15-8,*D/L,W/TUBE
7.00R15-8,*D/L,W/TUBE
7.00R15-8,*O/T,W/TUBE
7.00-15 8PR
185R14-8,W(TUBE)
185R14C 8PR,185R14C 8PR,*(B)
185R14C 8PR,185R14C 8PR,*(D)
7.00-15-10,W(TUBE)
42652ATIRE (FOR SPARE)
6.00-15-8,W(TUBE)
7.00R15-8,*D/L,W/TUBE
7.00R15-8,*O/T,W/TUBE
185R14-8,W(TUBE)
7.00-15-10,W(TUBE)
9165140814
main91651-40814
13 parts on this diagram · 1 diagram in section
