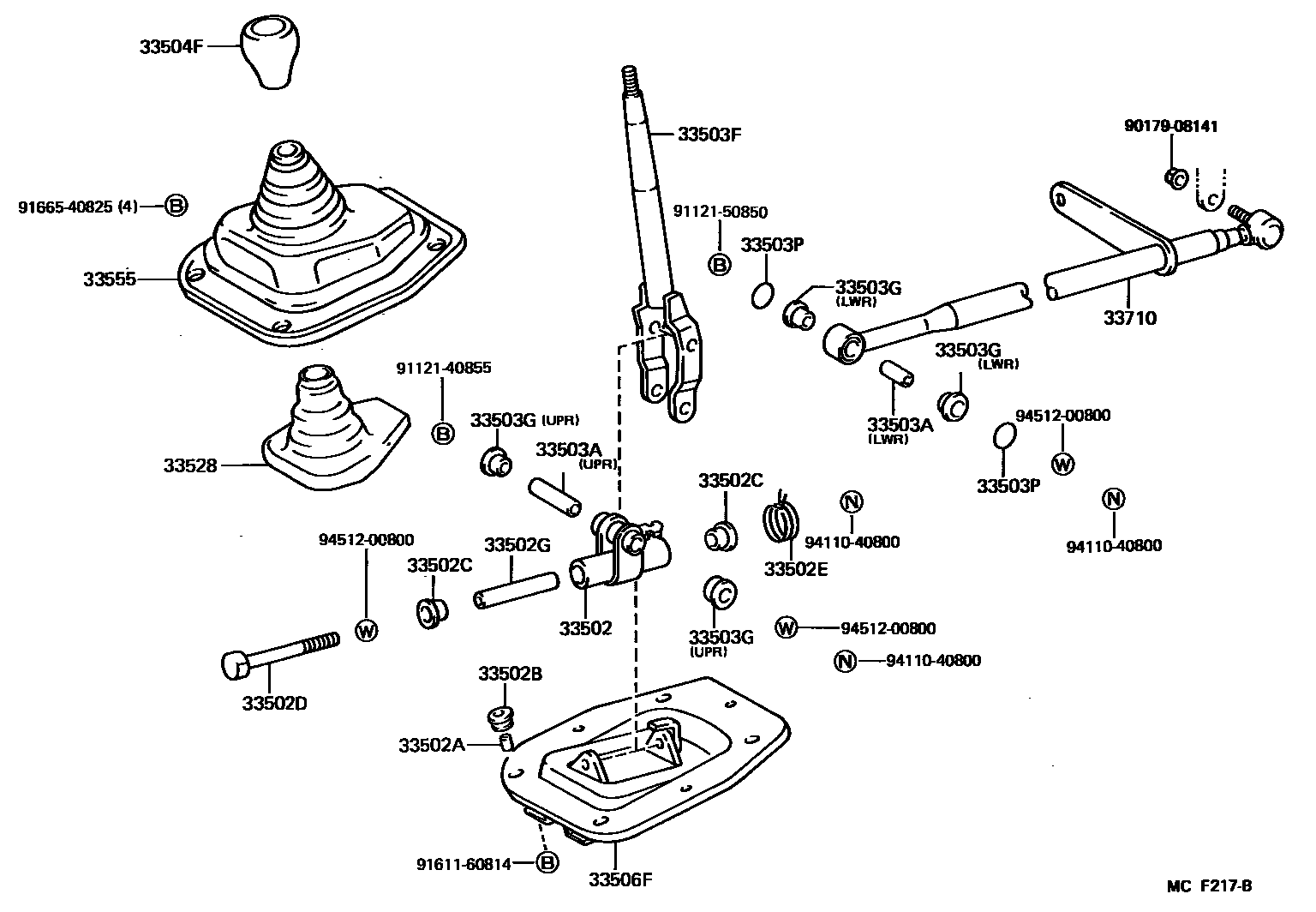

SHIFT LEVER & RETAINER
33502PLATE SUB-ASSY, SHIFT LEVER
33502ACOLLAR (FOR FLOOR SHIFT SETTING)
OD=13.8
33502BGROMMET (FOR SHIFT LEVER PLATE)
33502CBUSH (FOR FLOOR SHIFT SETTING)
33502DBOLT, HEXAGON (FOR SHIFT LEVER PLATE)
33502ESPRING, TORSION (FOR SHIFT LEVER PLATE)
33502GCOLLAR (FOR SHIFT LEVER PLATE)
33503ACOLLAR(FOR SHIFT LEVER)
UPR
LWR
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
sub33503-25010
33503GBUSH(FOR SHIFT LEVER)
UPR
UPR
LWR
33503PRING, O(FOR SHIFT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)
33528COVER, CONTROL SHAFT
33710ROD ASSY, GEAR SHIFTING, NO.1
9017908141
main90179-08141
9112140855
main91121-40855
9112150850
main91121-50850
9161160814
main91611-60814
9166540825
main91665-40825
9411040800
main94110-40800
9451200800
main94512-00800
23 parts on this diagram · 2 diagrams in section
