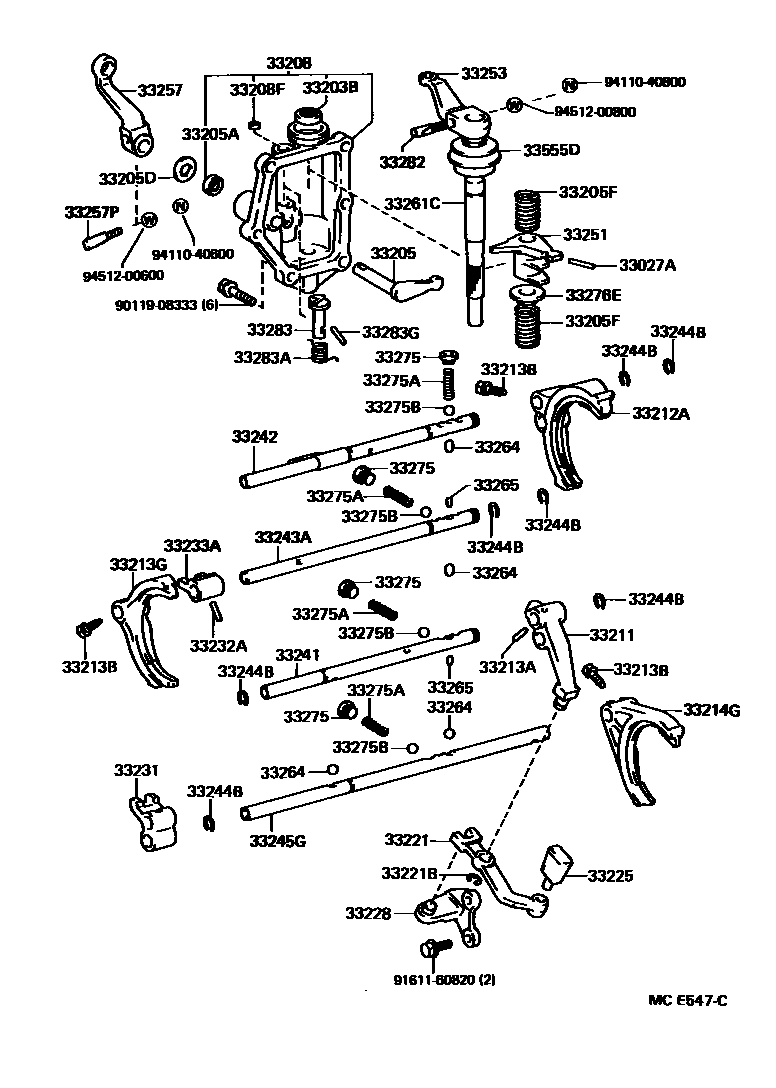

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)
33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205DWASHER(FOR OUTER LEVER OIL SETTING)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
UPR
LWR
33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT
33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)
33212AFORK, GEAR SHIFT, NO.1
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
sub33213-25021
33221BRING, E(FOR REVERSE SHIFT ARM)
33225SHOE, SHIFT ARM
33228BRACKET, REVERSE SHIFT ARM
33231HEAD, REVERSE SHIFT
33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33253LEVER, SHIFT OUTER, NO.1
33257LEVER, SELECT OUTER
33257PPIN, SELECT OUTER LEVER LOCK
33261CSHAFT, SHIFT & SELECT LEVER
sub33261-35111
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
OD=9.52,STEEL,BALL
L=13.6,OD=9.5,PIN
33265PIN, SHIFT INTERLOCK, NO.2
L=11.5,OD=4.8
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=34.5
L=33.8
33275BBALL, SHAFT DETENT
33276ESEAT, SELECT SPRING, NO.1
33282PIN, LEVER LOCK, NO.2
33283PIN, REVERSE RESTRICT, NO.1
33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33555DBOOT, SHIFT LEVER
9011908333
main90119-08333
9161160820
main91611-60820
9411040600
main94110-40600
9411040800
main94110-40800
9451200600
main94512-00600
9451200800
main94512-00800
48 parts on this diagram · 2 diagrams in section
