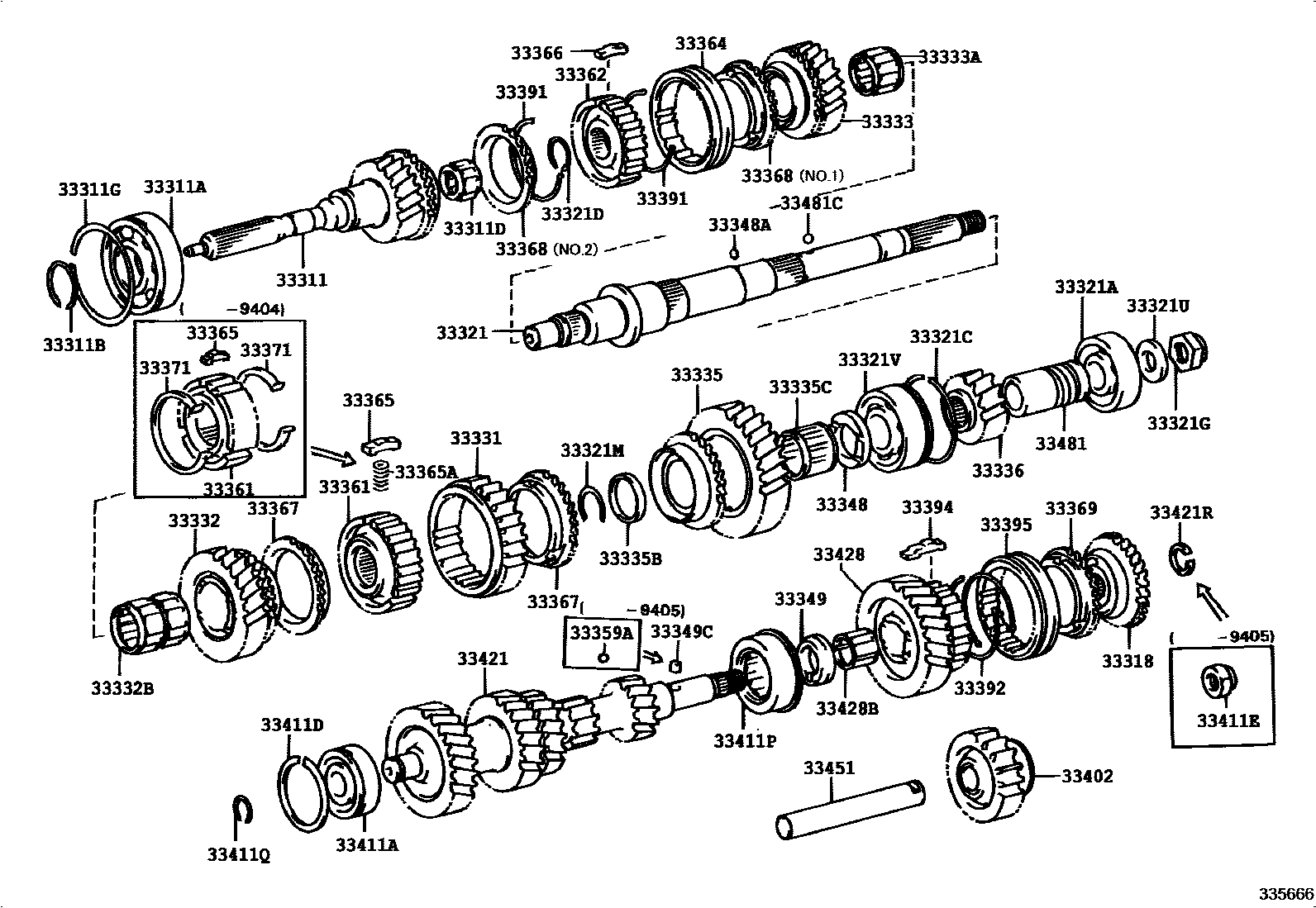

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
sub33321-25050
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A
T=2.35,MARK B
T=2.40,MARK C
T=2.45,MARK D
T=2.50,MARK E
T=2.55,MARK F
T=2.60,MARK G
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
sub90364-47014
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
sub33032-35041
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
sub90364-39016
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349CPIN (FOR 5TH GEAR THRUST WASHER)
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
OD=6.35,STEEL
33362HUB, TRANSMISSION CLUTCH, NO.2
33365ASPRING, COMPRESSION
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
NO.1 & NO.2
NO.1
NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33394KEY, SYNCHROMESH SHIFTING, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.00,MARK A
T=2.05,MARK B
T=2.10,MARK C
T=2.15,MARK D
T=2.20,MARK E
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
33421GEAR, COUNTER
sub33421-25031
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33421-25041
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub90520-23057
sub90520-23058
sub90520-23059
sub90520-23060
sub90520-23061
sub90520-23062
sub33421-25051
sub33421-60160
sub90520-20066
sub90520-20067
sub90520-20068
sub90520-20069
sub90520-20070
sub90520-20071
sub90520-20072
sub90520-20073
sub33421-35220
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
T=3.05,MARK E
T=3.10,MARK F
T=3.15,MARK G
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=9,MARK 9X33-35
N=10,MARK 10X31-33
33481CBALL, REVERSE SHIFT RESTRICT
OD=6.35,STEEL
55 parts on this diagram · 1 diagram in section
