CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iYY61198806-199304

main04313-17010iLY61199304-199505

main04313-22020iLY60,YY61198708-199006

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLY6#198708-199304

sub31470-35110

main31470-35070iYY61198708-198806

sub31470-35071

main31470-35071iYY61198806-198808

sub31470-35100

main31470-35110iLY61199304-199505

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820iLY6#,YY61198708-199505

*8-1.25PX20-20

sub91611-G0820

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLY6#,YY61198708-199304

main31473-35050iLY61199304-199505

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLY6#,YY61198708-199505

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLY6#,YY61198708-199505

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLY6#,YY61198708-199505

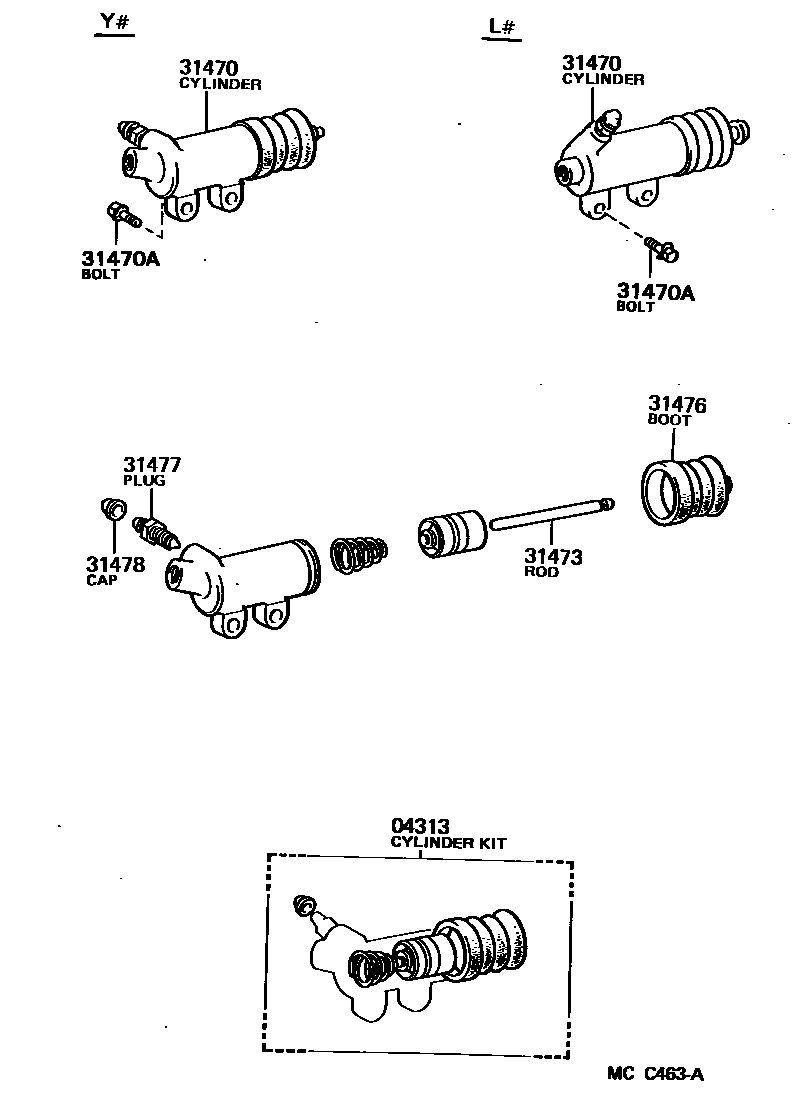

7 parts on this diagram · 1 diagram in section
