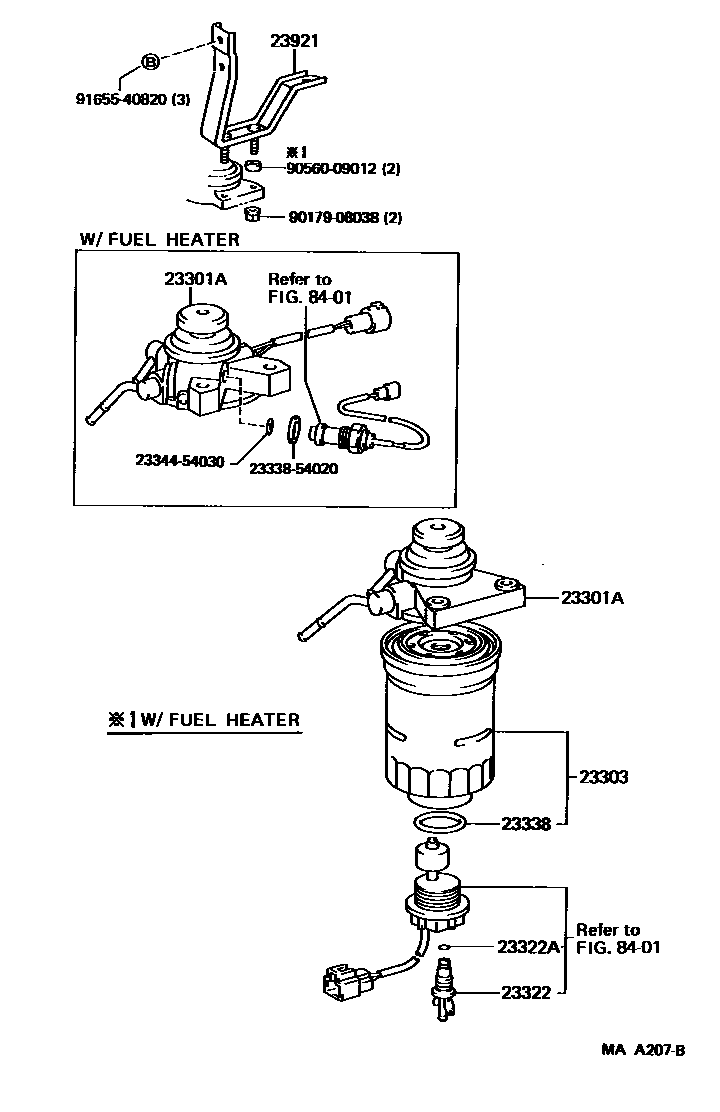

FUEL FILTER

0001 1 0002 1 0003 1

23301ACAP ASSY, FUEL FILTER

main23301-54330i2L,3L..LY6#198708-199505

main23301-54340i2L..LY60198708-198808

W(FUEL HEATER)

main23301-54430i3L..LY61..WT198808-199505

W(FUEL HEATER)

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2L,3L..LY6#198708-199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i2L,3L..LY6#198708-199505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2L,3L..LY6#198708-199505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2L,3L..LY6#198708-199505

23921SUPPORT, FUEL FILTER

main23921-54250i2L..LY60198708-198805

sub23921-54310

main23921-54310i2L,3L..LY6#198805-199505

main90929-01115i3Y..YY61198708-198808

8401

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

9017908038

main90179-08038

9056009012

main90560-09012

9165540820

main91655-40820

12 parts on this diagram · 3 diagrams in section
