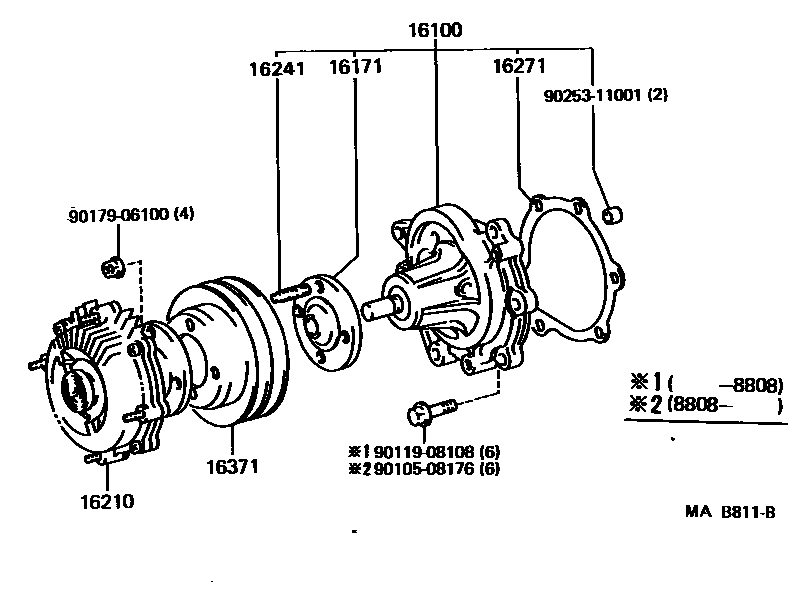

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-59137i2L..LY60198708-198808

sub16100-59138

main16100-59155i3L..LY61198808-199505

sub16100-59255

main16100-79036i3Y..YY61198708-198808

sub16100-79037

16171SEAT, WATER PUMP PULLEY

main16171-41170i3L..LY61198808-199505

main16171-54011i2L..LY60198708-198808

16210COUPLING ASSY, FLUID

main16210-54070i2L..LY60198708-198808

main16210-54150i3L..LY61198808-199505

main16210-73010i3Y..YY61198708-198808

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-13020i2L..LY60198708-198808

main16193-71010i3Y..YY61198708-198808

main16198-70010i3L..LY61198808-198810

main92122-40816i3L..LY61198810-199505

16271GASKET, WATER PUMP

main16271-54012i2L..LY60198708-198808

sub16271-54013

main16271-54020i3L..LY61198808-199505

sub16271-54030

16371PULLEY, FAN

main16371-54020i2L..LY60198708-198808

main16371-54030i3L..LY61198808-199505

main16371-73011i3Y..YY61198708-198808

9010508176

main90105-08176

9011908108

main90119-08108

9017906100

main90179-06100

9025311001

main90253-11001

10 parts on this diagram · 3 diagrams in section
