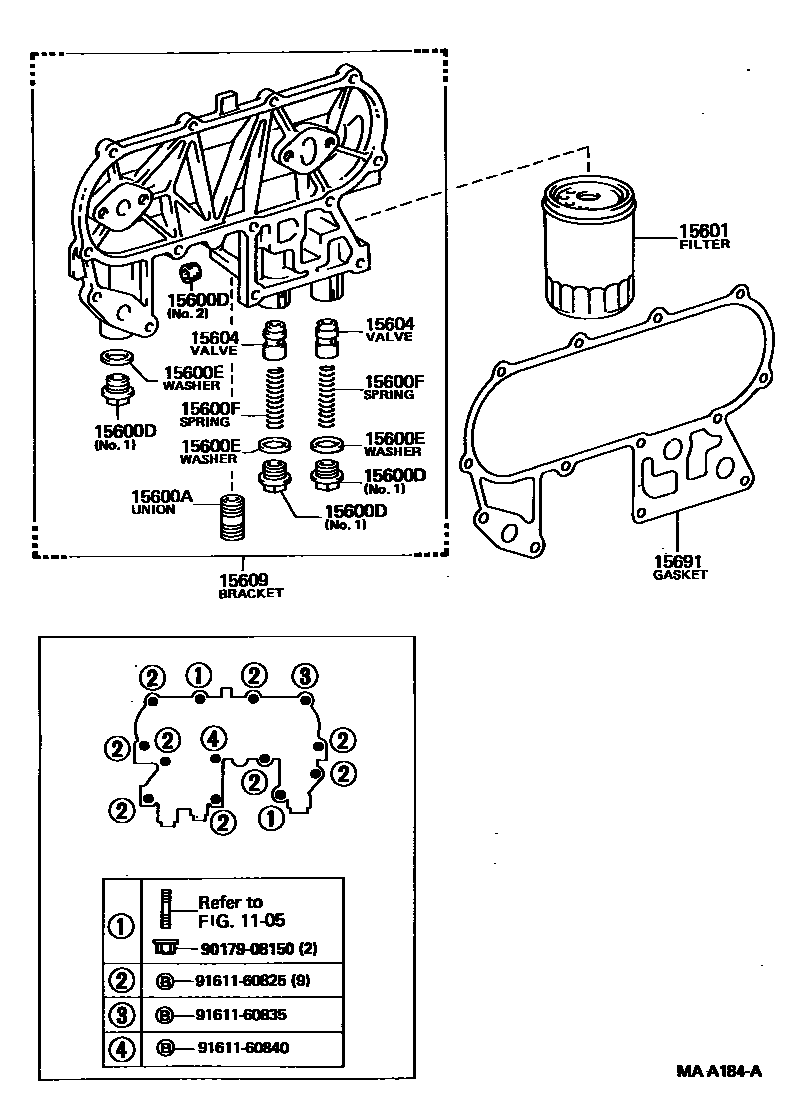

OIL FILTER

0001 1 0002 1 0003 1

1105

15600AUNION(FOR OIL FILTER)

main15116-54010i3L..LY61..ST198808-198910

main15116-54020i2L,3L..LY6#..WT198708-199106

sub15116-54021

main15116-54021i3L..LY61..WT199106-199505

main90404-19011i3L..LY61..ST198910-199207

15600DPLUG(FOR OIL FILTER)

main90072-34402i2L,3L..LY6#..WT198708-199206

NO.2

sub90344-51005

main90341-18015i3L..LY61..ST198708-199505

NO.1

main90344-51005i3L..LY61199206-199505

NO.2

15600EWASHER(FOR OIL FILTER)

main90430-18001i3L..LY61198907-199112

main90430-18011i2L,3L..LY6#198708-198907

sub90430-18001

main90430-18021i3L..LY61199112-199310

main90430-18029i3L..LY61199310-199505

15600FSPRING, COMPRESSION(FOR OIL FILTER)

main90501-16026i2L,3L..LY6#198708-199505

15601FILTER SUB-ASSY, OIL

main15600-41010i3L..LY61..ST198808-199207

sub90915-40002

main15601-33021i3Y..YY61198708-198808

main90915-03006i2L,3L..LY6#..WT198708-199106

sub90915-30002

main90915-30002i3L..LY61..WT199106-199505

15604VALVE SUB-ASSY, OIL SAFETY

main15131-54010i2L,3L..LY6#198708-199505

15609BRACKET SUB-ASSY, OIL FILTER

main15609-54013i3L..LY61..ST198808-199207

main15609-54070i2L..LY60198708-198806

main15609-54071i2L,3L..LY6#..WT198806-199505

main15609-71011i3Y..YY61198708-198808

15691GASKET, OIL FILTER

main15691-71010i3Y..YY61198708-198808

sub15691-71011

main15692-54020i2L..LY60198708-198806

sub15692-54040

main15692-54030i2L,3L..LY6#198806-199505

sub15692-54050

9017908150

main90179-08150

9161160825

main91611-60825

9161160835

main91611-60835

9161160840

main91611-60840

13 parts on this diagram · 3 diagrams in section
