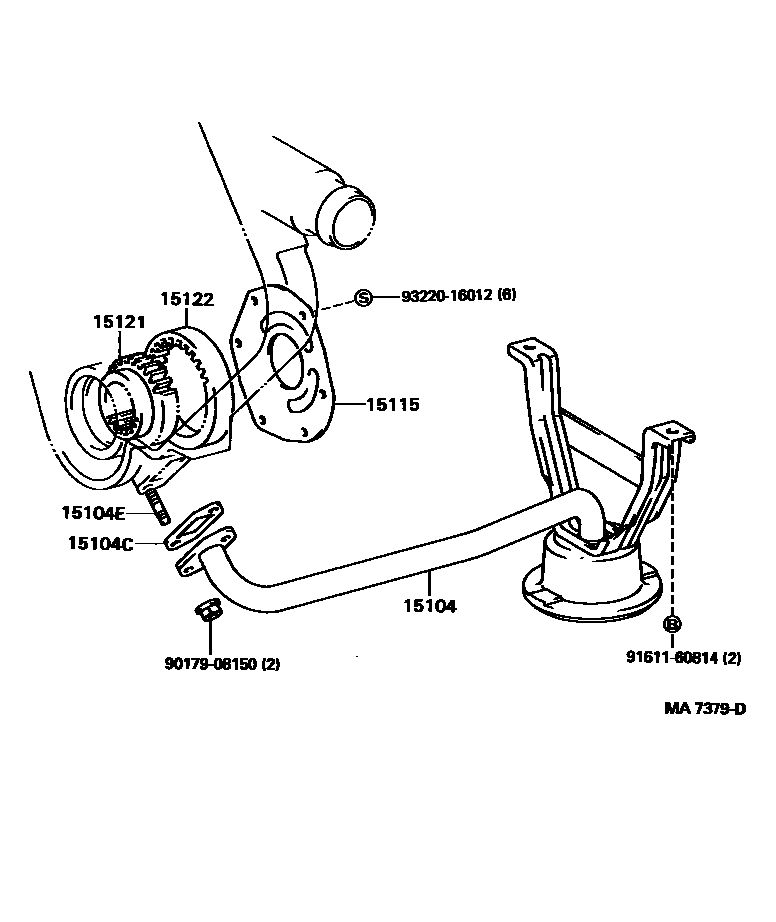

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-54023i2L..LY60198711-198808

sub15104-54140

main15104-54140i3L..LY61198808-199505

main15104-71010i3Y..YY61198708-198808

15104CGASKET(FOR OIL STRAINER)

main15149-54011i2L..LY60198708-198808

sub15149-54012

main15149-54012i3L..LY61198808-199505

sub15149-54030

15104EBOLT, STUD(FOR OIL STRAINER)

main92122-40816i2L,3L..LY6#198708-199505

15115COVER, OIL PUMP

main15115-54012i2L..LY60198708-198808

main15115-54020i3L..LY61198808-198912

sub15115-54021

main15115-54021i3L..LY61198912-199505

main15115-71015i3Y..YY61198708-198808

15121GEAR, OIL PUMP DRIVE

main15121-54010i2L..LY60198708-198808

main15121-54020i3L..LY61198808-199505

15122GEAR, OIL PUMP DRIVEN

main15122-54010i2L..LY60198708-198808

main15122-54020i3L..LY61198808-199505

9017908150

main90179-08150

9161160814

main91611-60814

9322016012

main93220-16012

9 parts on this diagram · 3 diagrams in section
