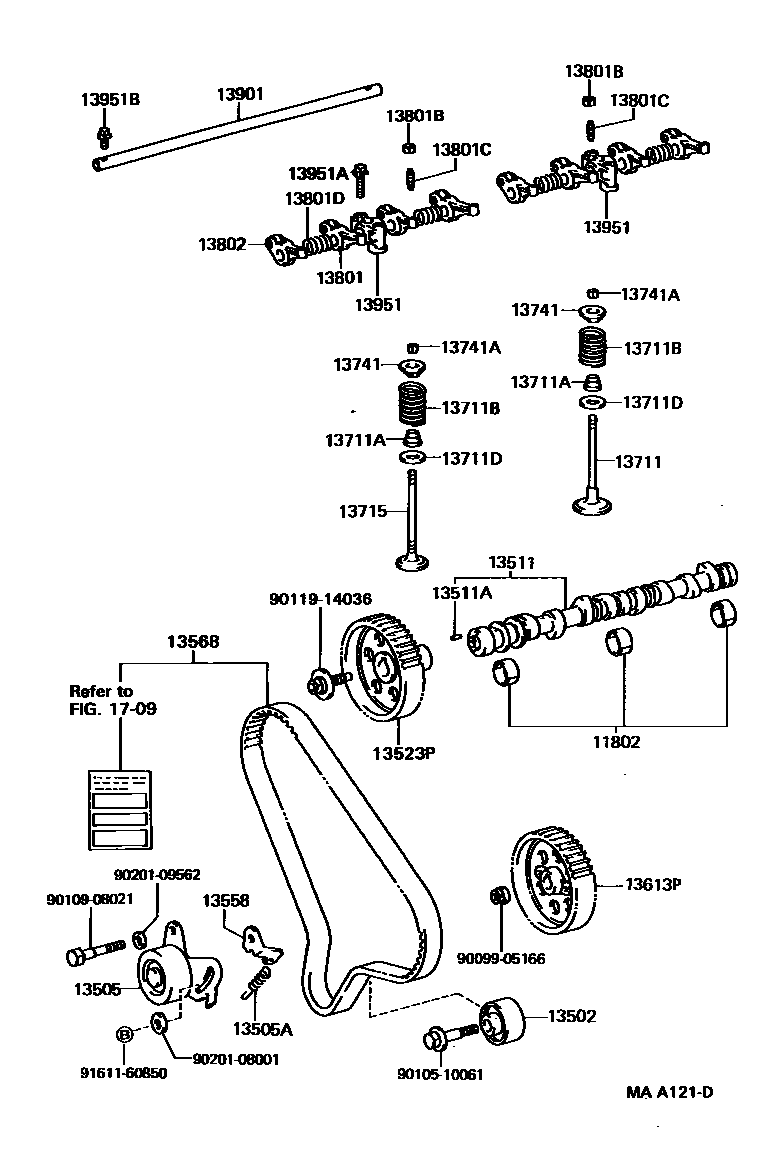

CAMSHAFT & VALVE
11802BEARING SET, CAMSHAFT
STD
U/S 0.125
U/S 0.25
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505ASPRING, TENSION(FOR IDLER)
13511CAMSHAFT
13511APIN, STRAIGHT(FOR CAMSHAFT KNOCK)
L=15,OD=5
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523PPULLEY, CAMSHAFT TIMING
13558BRACKET, SPRING(FOR IDLER)
13613PPULLEY, INJECTION PUMP DRIVE
13711VALVE, INTAKE
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
13715VALVE, EXHAUST
13741RETAINER, VALVE SPRING
EXHAUST
INTAKE
13741ALOCK, VALVE SPRING RETAINER
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801CSCREW, VALVE ADJUSTING
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13802ARM SUB-ASSY, VALVE ROCKER, NO.2
13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1
13951SUPPORT, VALVE ROCKER, NO.1
13951ABOLT(FOR ROCKER SUPPORT SET)
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
1709
9009905166
main90099-05166
9010510061
main90105-10061
9010908021
main90109-08021
9011914036
main90119-14036
9020108001
main90201-08001
9020109562
main90201-09562
9161160850
main91611-60850
35 parts on this diagram · 3 diagrams in section
