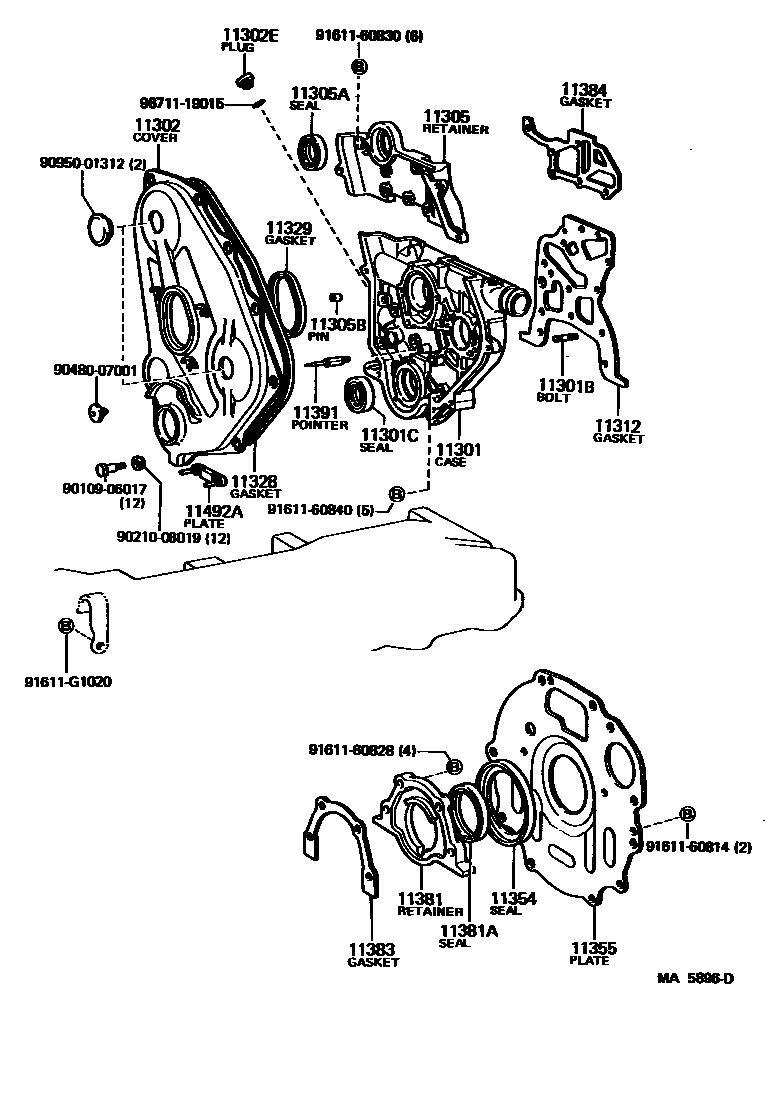

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-71010i3Y..YY61198708-198808

main11311-54022i2L..LY60198708-198808

main11311-54050i3L..LY61198808-199108

main11311-54051i3L..LY61199108-199505

sub11311-54052

sub15115-54022

11301BBOLT,STUD(FOR TIMING GEAR CASE)

main92132-60828×2i2L,3L..LY6#198708-199505

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42012i2L,3L..LY6#198708-199102

main90311-42026i3L..LY61199102-199401

main90311-42030i3L..LY61199401-199505

sub90311-42031

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-54014i2L..LY60198708-198808

main11321-54020i3L..LY61198808-199505

sub11321-54021

main11321-71010i3Y..YY61198708-198808

11302EPLUG, STRAIGHT(FOR TIMING GEAR COVER)

main90341-18004i2L,3L..LY6#198708-199505

11305RETAINER, OIL SEAL, NO.2

main11382-54010i2L..LY60198708-198808

11305ASEAL, OIL(FOR OIL SEAL RETAINER, NO.2)

main90311-32001i3L..LY61198808-199102

sub90311-32018

main90311-32017i3L..LY61199102-199505

sub90311-32020

main90311-42003i2L..LY60198708-198808

11305BPIN, RING(FOR OIL SEAL RETAINER, NO.2)

main16159-71010×2i3Y..YY61198708-198808

main90253-11001×2i2L..LY60198708-198808

main90253-11021×2i3L..LY61198808-199505

11312GASKET, FRONT END PLATE

main11312-54013i2L..LY60198708-198808

sub11312-54030

main11312-54021i3L..LY61198808-199505

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-54010i2L..LY60198708-198808

main11328-54020i3L..LY61198808-198904

main11328-54021i3L..LY61198904-199505

main11328-71010i3Y..YY61198708-198712

main11328-71011i3Y..YY61198712-198808

sub11328-71012

11329GASKET, TIMING GEAR REAR COVER

main11329-54011i2L..LY60198708-198808

main11329-54020i3L..LY61198808-198904

main11329-54021i3L..LY61198904-199505

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L,3L..LY6#198708-199505

main11354-71010i3Y..YY61198708-198808

11355PLATE, REAR END

main11355-54030i2L,3L..LY6#198708-199505

main11355-71010i3Y..YY61198708-198808

11381RETAINER, ENGINE REAR OIL SEAL

main11381-54010i2L..LY60198708-198808

main11381-54020i3L..LY61198808-199505

sub11381-54030

sub90116-08404

main11381-71010i3Y..YY61198708-198808

11381ASEAL, ENGINE REAR OIL

main90311-80003i3Y..YY61198708-198808

sub90311-80009

main90311-85004i2L,3L..LY6#198708-199102

main90311-85006i3L..LY61199102-199209

sub90311-85009

main90311-85007i3L..LY61199209-199505

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3Y..YY61198708-198808

main11383-54010i2L..LY60198708-198808

main11383-54020i3L..LY61198808-199107

main11383-54030i3L..LY61199107-199505

11384GASKET, OIL SEAL RETAINER, NO.2

main11384-54010i2L..LY60198708-198808

sub11384-54011

main11384-54020i3L..LY61198808-199107

main11384-54030i3L..LY61199107-199505

11391POINTER, TIMING

main11391-54010i2L..LY60198708-198808

main11391-54020i3L..LY61198808-199505

11492APLATE, WATER SEAL

main11492-54010i2L,3L..LY6#198708-198904

9010906017

main90109-06017

9021008019

main90210-08019

9048007001

main90480-07001

9095001312

main90950-01312

9161160814

main91611-60814

9161160828

main91611-60828

9161160830

main91611-60830

9161160840

main91611-60840

91611G1020

main91611-G1020

9671119015

main96711-19015

29 parts on this diagram · 3 diagrams in section
