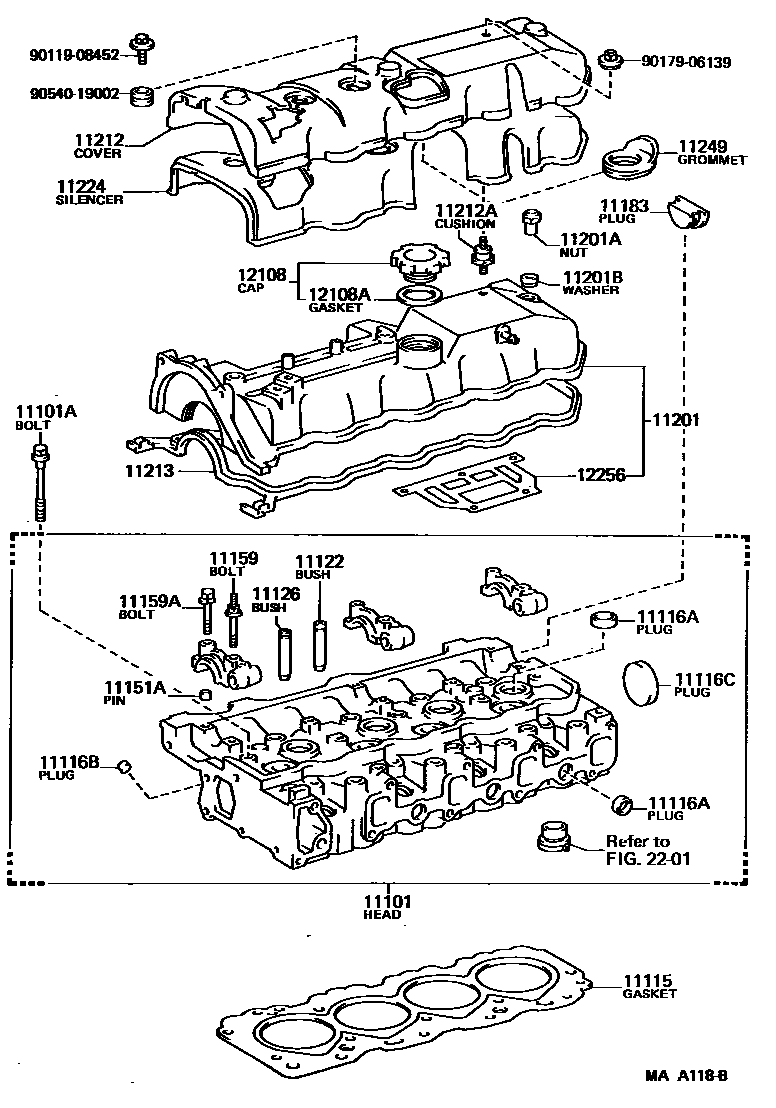

CYLINDER HEAD
11116BPLUG, TIGHT, NO.2
11116CPLUG, TIGHT, NO.3
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
STD
O/S 0.05
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=11,OD=11
L=8,OD=11
11159BOLT, STUD(FOR HEAD TO CAMSHAFT BEARING CAP)
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11212COVER, CYLINDER HEAD, NO.2
SWITZERLAND SPEC
11212ACUSHION, CYLINDER HEAD COVER
SWITZERLAND SPEC
11213GASKET, CYLINDER HEAD COVER
11224SILENCER, CYLINDER HEAD COVER
SWITZERLAND SPEC
11249GROMMET, CYLINDER HEAD COVER
SWITZERLAND SPEC
12108AGASKET(FOR OIL FILLER CAP)
12256GASKET, VENTILATION BAFFLE
2201
9011908452
main90119-08452
9017906139
main90179-06139
9054019002
main90540-19002
27 parts on this diagram · 3 diagrams in section
