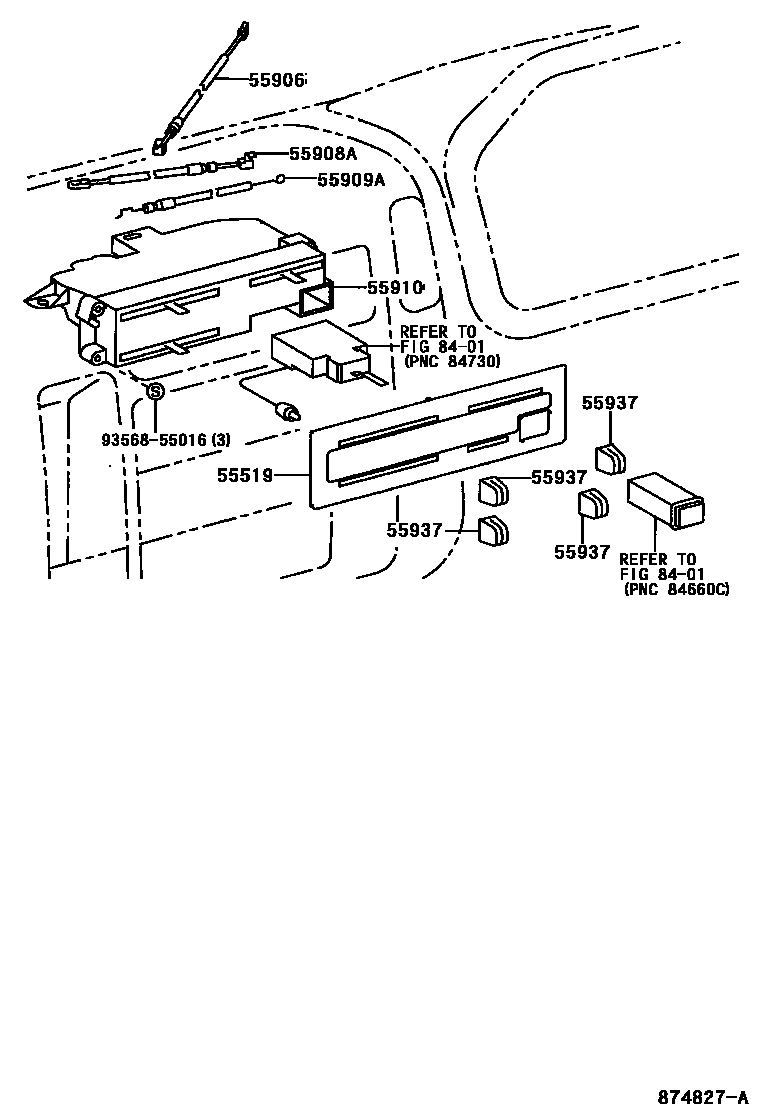

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1CONTROL PANEL 0003 1CONTROL PANEL 0004 1CONTROL PANEL 0005 1AIR DUCT 0006 1AIR DUCT 0007 1AIR DUCT 0008 1AIR DUCT 0009 1W/O(HEATER) 0010 1W/O(HEATER)

55519PLATE, HEATER CONTROL NAME

main55519-37080iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107-201610

main55519-37100iKDY22#,23#,25#,26#,LY225,235..LHD200107-200807

main55519-37140iKDY221,231,251,261,LY225,235..LHD200808-201610

main55519-37170iKDY221,231201610

main55519-37180iLY23#..RHD201610-202111

W(HEATER)

main55519-37190iLY235..RHD201610

main55519-37220iLY235..LHD201610

W(HEATER)

main55519-37230iLY235..LHD201610

55906CABLE SUB-ASSY, HEATER CONTROL

main55906-37050iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-201610

main55906-37090iLY230201610-202111

main55906-37110iLY235..LHD201610

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-37030iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107-201610

main55908-37060iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main55908-37090iLY230201610-202111

main55908-37110iLY235..LHD201610

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-37040iLY235..RHD..ST;KDY221,231..RHD..EUR;KDY220,230,25#,LY22#,230..RHD200107-201610

main55909-37070iKDY22#,23#,25#,26#,LY225,235..LHD200107-201610

main55909-37100iLY23#..RHD201610-202111

W(HEATER)

main55909-37120iLY235..LHD201610

W(HEATER)

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-37061iLY225..RHD200107-201610

main55910-37070iLY225..LHD200107-201610

55937KNOB, HEATER CONTROL LEVER

main55905-89115iLY225,235..ST;KDY22#,23#,25#,26#,LY220,230..ARL,EUR,SA200107-201610

main55925-37010iLY230201610-202111

8401

9356855016

main93568-55016

8 parts on this diagram · 10 diagrams in section
