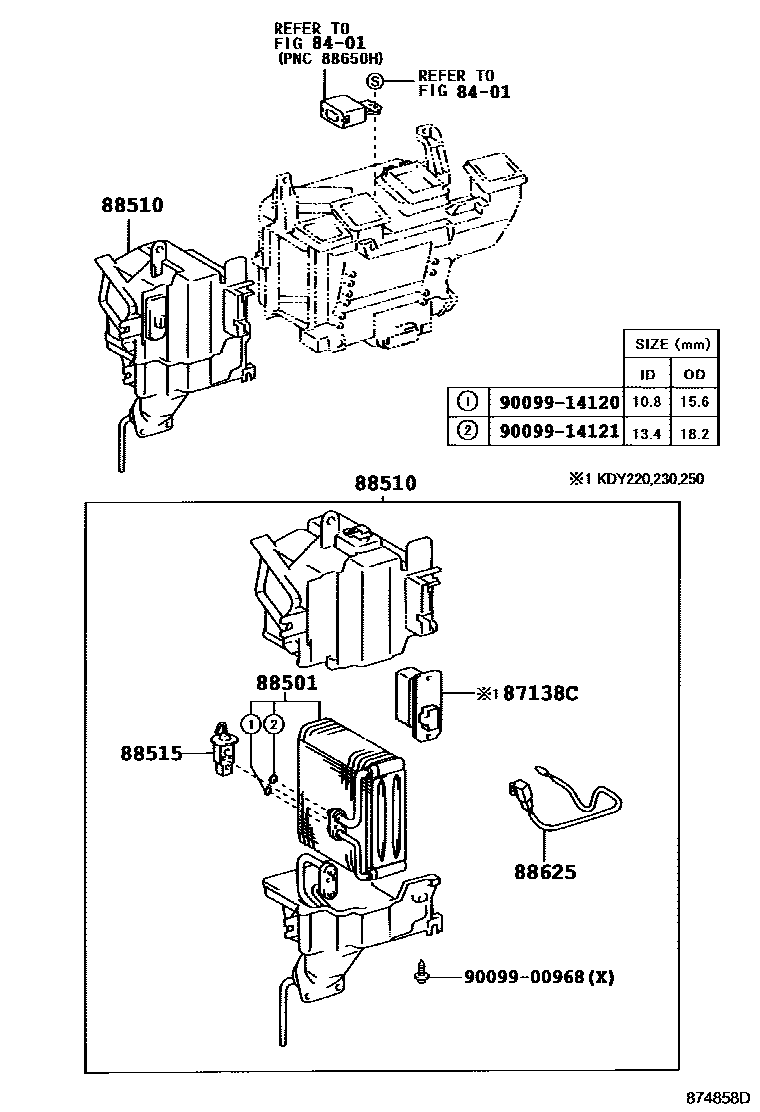

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT(DEALER OPTION) 0003 1FRONT(DEALER OPTION) 0004 1W(AIR CONDITIONER) 0005 1HEATER ONLY 0006 1W(BOOST VENTILATOR) 0007 1FRONT(DEALER OPTION) 0008 1FRONT(DEALER OPTION) 0009 1W(BOOST VENTILATOR) 0010 1HEATER ONLY 0011 1REAR HEATER

8401

87138CRESISTOR, BLOWER

main87138-0K090iLY230201610-202111

sub87138-0K290

main87138-37190iKDY220,230,250,260200108-200610

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-37060iKDY22#,23#,25#..RHD..EUR200108-201502

main88501-37070iKDY22#,23#,25#,26#..LHD200108-201502

main88501-37110iKDY221,231201610

88510UNIT ASSY, COOLER

main88510-25080iKDY220,230,250,260..LHD200108-200609

main88510-25090iKDY221,231,251..RHD..EUR200609-201502

main88510-25100iKDY221,231,251,261..LHD200609-200808

sub88510-37260

main88510-37180iKDY220,230,250..RHD200108-200610

main88510-37260iKDY221,231,251,261..LHD200808-201502

88515VALVE, COOLER EXPANSION

main88515-12130iKDY221,231201610-201708

main88515-28160iKDY221,231,251..EUR;KDY220,230,250,26#..LHD200308-201502

main88515-37030iKDY221,231201709

main88515-48040iLY220,230..ARL200108-200610

88625THERMISTOR, COOLER, NO.1

main88625-20460iKDY220,230,250,260200108-200405

sub88625-32150

main88625-26090iKDY221,231201610

main88625-32150iKDY22#,23#,25#,26#,LY220,230..ARL,EUR200405-201502

9009900968

main90099-00968

9009914120

main90099-14120

9009914121

main90099-14121

9 parts on this diagram · 10 diagrams in section
