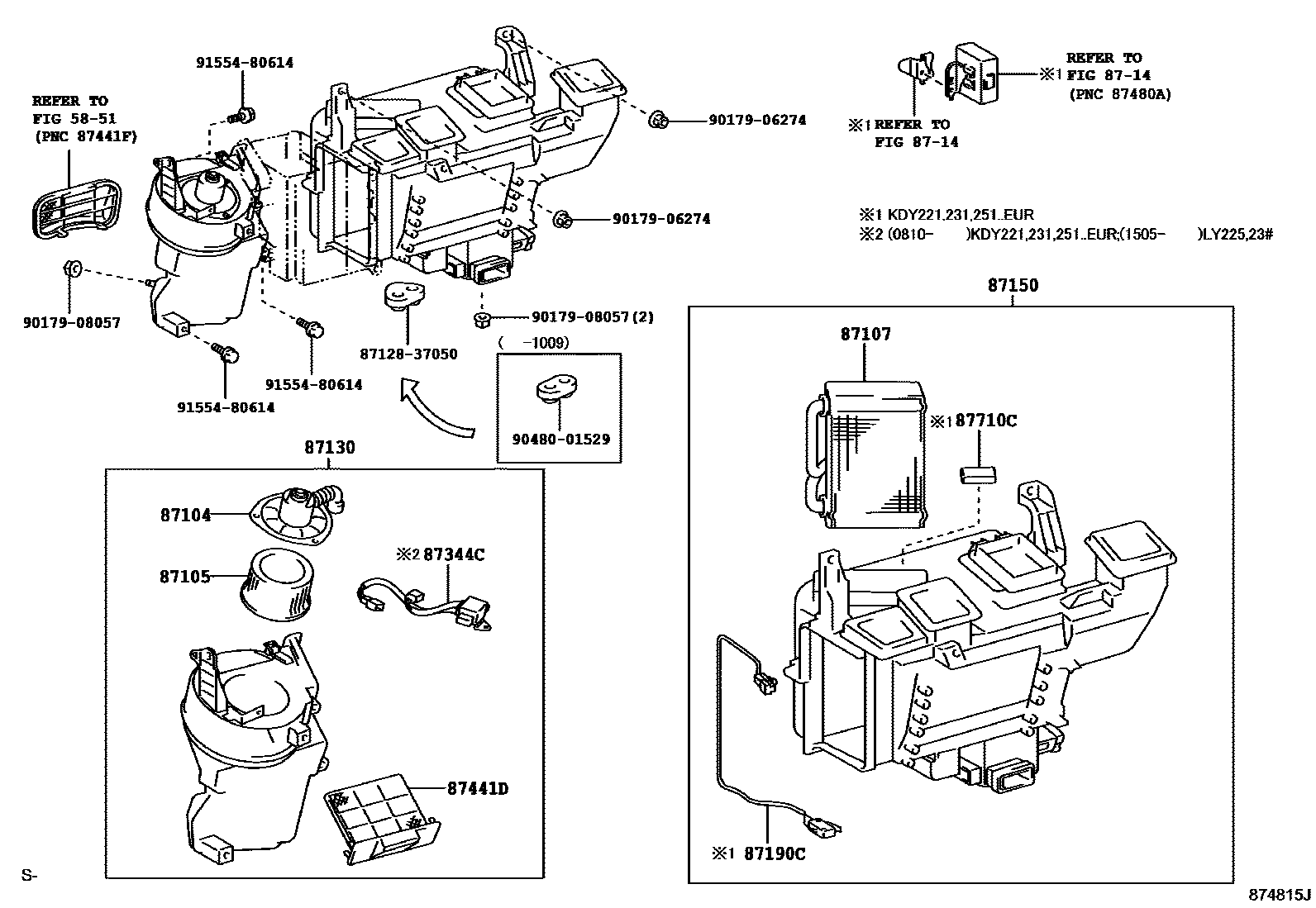

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT 0003 1FRONT 0005 1REAR

5851

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-25640iKDY22#,23#,25#,26#,LY235..LHD200107-201610

main87104-37120iLY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)200107-201610

87105FAN SUB-ASSY, HEATER BLOWER

main87105-37010iLY225..LHD200107-201610

main87105-37030iLY235..RHD..ST;KDY22#,23#,25#,LY220,230..RHD..(ARL,EUR,SA)200107-201610

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-25050iLY23#..RHD200609-201610

main87107-25060iLY225..LHD200609-201610

main87107-37040iLY235..RHD..ST;KDY220,230,250,LY22#,230..RHD200107-200705

main87107-37061iKDY220,230,250,260,LY225,235..LHD200107-200801

sub87107-25060

87130BLOWER ASSY, HEATER, FRONT

main87130-25030iLY225..LHD200107-201610

main87130-25040iKDY221,231,251..RHD..EUR200810-201006

sub87130-25041

main87130-25041iLY23#..RHD201007-201610

main87130-25050iKDY221,231,251,261..LHD200807-201502

main87130-37150iLY235..RHD..ST;KDY220,230,250,LY22#,230..RHD200107-201006

sub87130-37151

main87130-37151iLY225,23#..RHD201007-201504

sub87130-25041

8714

87150RADIATOR ASSY, HEATER

main87150-25010iLY235..RHD..ST;KDY220,230,250,LY22#,230..RHD200107-200705

sub87150-37300

main87150-25020iKDY220,230,250,260..LHD200108-200609

DENMARK OR FINLAND OR NORWAY OR SWEDEN SPEC

main87150-25050iKDY231,251..RHD..IV3200709-201502

COLD SPEC

main87150-25060iKDY221,231,251..RHD..EUR200609-201502

main87150-25070iKDY221,231,251,261..LHD200609-201502

COLD AREA SPEC

main87150-25080iKDY221,231,251,261..LHD200609-201502

main87150-37221iKDY220,230,250,260,LY225,235..LHD200107-200603

sub87150-37222

main87150-37222iKDY220,230,250,260,LY225,235..LHD200604-200712

sub87150-37223

main87150-37223iLY235..LHD200801-201610

main87150-37300iLY23#..RHD200706-201610

87190CSWITCH ASSY, TEMPERATURE CONTROL

main87190-25010iKDY221,231,251,261..EUR200609-201502

87344CWIRE, HEATER

main87387-25010iLY225..RHD200807-201610

87441DFILTER, HEATER AIR, NO.2

main87441-37030iLY235..ST;KDY220,230,250,260,LY22#,230200107-200110

sub87441-37031

main87441-37031iLY225200110-201610

87710CHEATER ASSY, QUICK

main87700-25010iKDY221,231,251..RHD..EUR200805-200902

sub87700-25030

main87700-25020iKDY221,231,251,261..LHD200807-200902

sub87700-25040

main87700-25030iKDY221,231,251..RHD..EUR200903-201502

main87700-25040iKDY221,231,251,261..LHD200903-201502

main87710-25010iKDY221,231,251..RHD..EUR200609-200807

sub87700-25030

8712837050GROMMET, HEATER

main87128-37050

9017906274

main90179-06274

9017908057

main90179-08057

9048001529

main90480-01529

9155480614

main91554-80614

16 parts on this diagram · 3 diagrams in section
