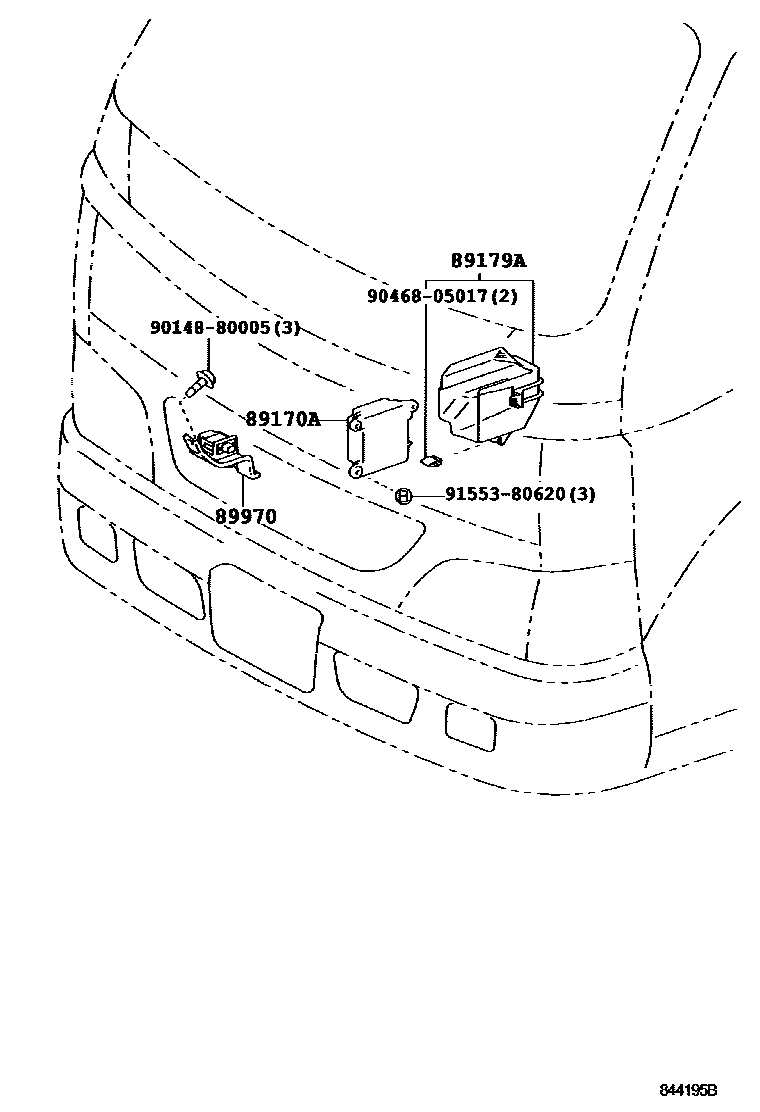

AIR BAG

0001 1 0002 1

89170ACOMPUTER ASSY, AIRBAG

main89170-25020iKDY221,231,251,261..EUR200810-201502

main89170-37080iKDY22#,23#,25#,26#..EUR200108-200810

main89170-37121iKDY221,231201610-201705

sub89170-37122

main89170-37122iKDY221,231201706-201802

sub89170-37123

main89170-37123iKDY221,231201802

89179ACOVER, AIRBAG SENSOR

main89179-25010iKDY221,231,251,261..EUR200808-201502

main89179-37030iKDY22#,23#,25#,26#..EUR200108-200808

89970SENSOR ASSY, AIRBAG, NO.2

main89970-25020iKDY221,231,251,261..EUR200810-201502

main89970-37010iKDY22#,23#,25#,26#..EUR200108-200810

main89970-37020iKDY221,231201610

9014880005

main90148-80005

9046805017

main90468-05017

9155380620

main91553-80620

6 parts on this diagram · 2 diagrams in section
