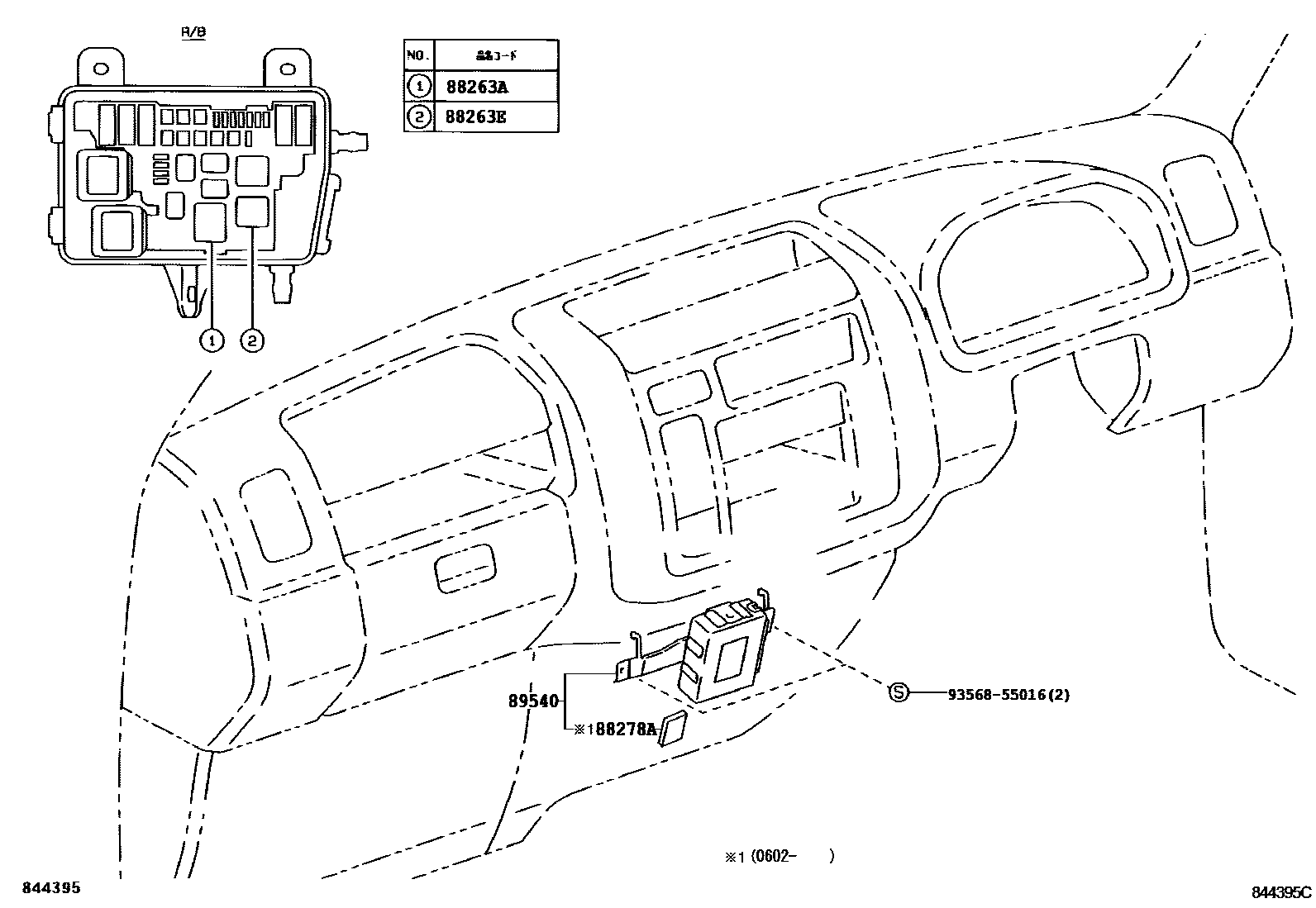

ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1

88263ARELAY, SKID CONTROL

main88263-37010iKDY22#,23#,25#,26#..EUR200108-202111

88263ERELAY, SKID CONTROL NO.2

main88263-37020iKDY22#,23#,25#,26#..EUR200108-202111

88278ACUSHION, SKID CONTROL COMPUTER

main88278-25010iKDY220,230,250..RHD;KDY221,231,251,261..EUR200602-200907

89540COMPUTER ASSY, SKID CONTROL

main89540-25010iKDY220,230,250..RHD200108-200601

sub89540-25011

main89540-25011iKDY22#,23#,25#..RHD..EUR200602-200907

main89540-25020iKDY220,230,250,260..LHD200108-200606

sub89540-25021

main89540-25021iKDY22#,23#,25#,26#..LHD200607-200907

main89540-25040iKDY221,231,251,261..EUR200907-201502

main89540-25060iLY230201610-202111

9356855016

main93568-55016

5 parts on this diagram · 5 diagrams in section
