WIRING & CLAMP

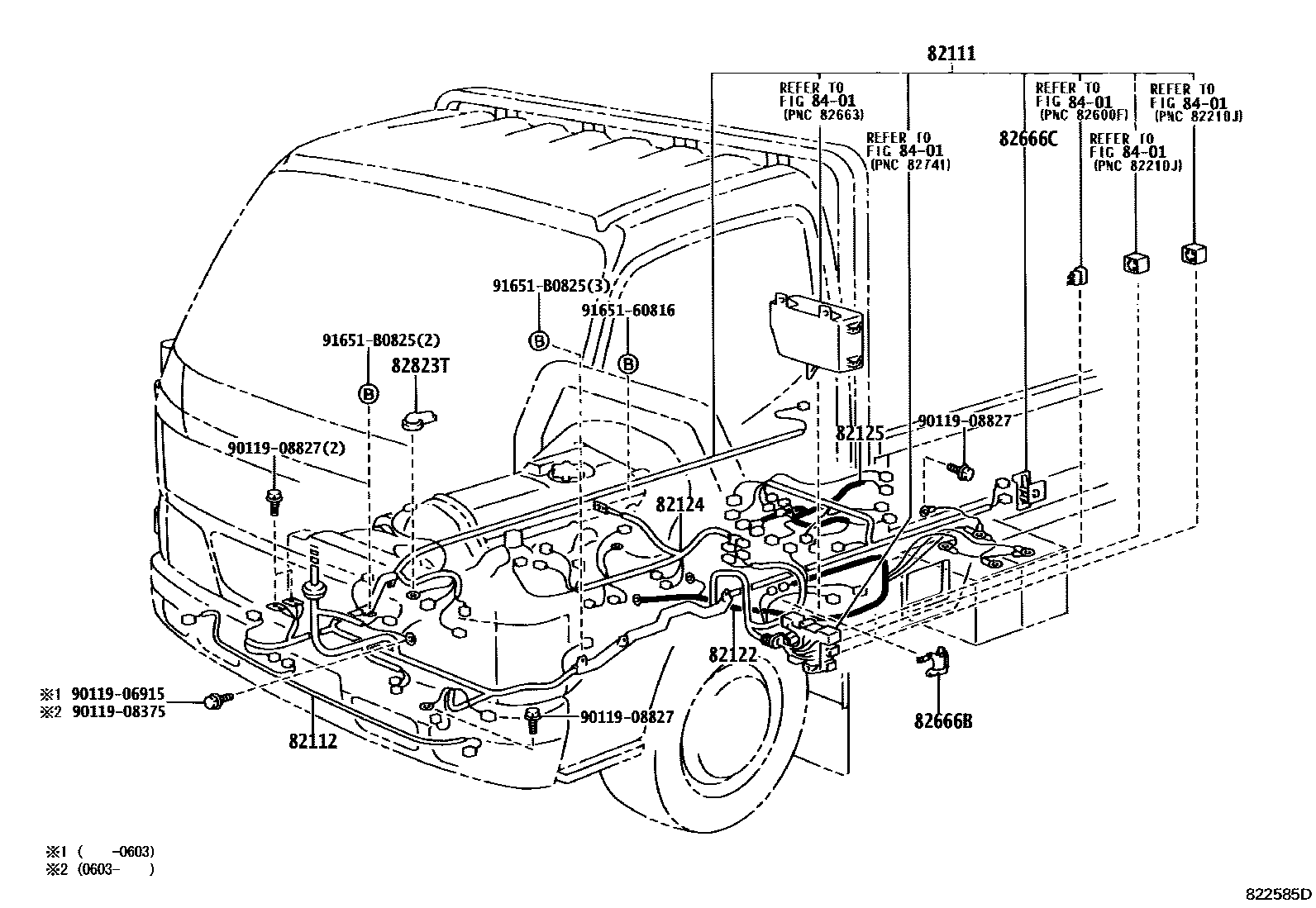

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-25230i200107-200408
main82111-25231i200408-200603
main82111-25232i200603-200909
main82111-25380i200108-200408
main82111-25381i200408-200603
main82111-25382i200603-200610
main82111-25390i200108-200408
W(ABS)
main82111-25391i200408-200603
W(ABS)
main82111-25392i200603-200610
W(ABS)
main82111-25400i200108-200408
main82111-25401i200408-200603
main82111-25402i200603-200609
main82111-25410i200108-200408
W(ABS)
main82111-25411i200408-200603
W(ABS)
main82111-25412i200603-200609
W(ABS)
main82111-25420i200108-200308
main82111-25421i200308-200408
main82111-25422i200408-200603
main82111-25423i200603-200609
main82111-25430i200108-200308
W(ABS)
main82111-25431i200308-200408
W(ABS)
main82111-25432i200408-200603
W(ABS)
main82111-25433i200603-200609
W(ABS)
main82111-25440i200107-200308
main82111-25441i200308-200603
main82111-25442i200603-200609
main82111-25460i200107-200308
main82111-25461i200308-200603
main82111-25462i200603-201407
main82111-25463i201407-201610
main82111-25470i200107-200308
main82111-25471i200308-200603
main82111-25472i200603-201407
main82111-25473i201407-201610
main82111-25870i200208-200308
sub82111-25871
main82111-25871i200308-200408
main82111-25872i200408-200412
main82111-25D10i200609-200708
main82111-25D20i200609-200708
W(ABS)
main82111-25D30i200609-200708
W(BATTERY=85D26L X 2)
main82111-25D40i200609-200708
W(ABS & BATTERY=85D26L X 2)
main82111-25D50i200609-200708
main82111-25D60i200609-200708
W(ABS)
main82111-25D70i200609-200708
W(BATTERY=85D26L X 2)
main82111-25D80i200609-200708
W(ABS & BATTERY=85D26L X 2)
main82111-25D90i200609-200708
main82111-25E10i200609-200708
W(BATTERY=85D26L X 2)
main82111-25E20i200609-200708
W(ABS & BATTERY=85D26L X 2)
main82111-25E30i200609-200808
main82111-25E31i200808-201310
main82111-25J40i200708-200810
main82111-25J41i200810-200907
main82111-25J50i200708-200810
W(ABS)
main82111-25J51i200810-200907
W(ABS)
main82111-25J60i200708-200810
W(BATTERY=85D26L X 2)
main82111-25J61i200810-200907
W(BATTERY=85D26L X 2)
main82111-25J70i200708-200810
W(ABS & BATTERY=85D26L X 2)
main82111-25J71i200810-200907
W(ABS & BATTERY=85D26L X 2)
main82111-25J80i200708-200810
main82111-25J81i200810-200907
main82111-25J90i200708-200810
W(ABS)
main82111-25J91i200810-200907
W(ABS)
main82111-25K00i200708-200810
W(BATTERY=85D26L X 2)
main82111-25K01i200810-200907
W(BATTERY=85D26L X 2)
main82111-25K10i200708-200810
W(ABS & BATTERY=85D26L X 2)
main82111-25K11i200810-200907
W(ABS & BATTERY=85D26L X 2)
main82111-25K20i200708-200810
main82111-25K21i200810-200907
main82111-25K30i200708-200810
W(ABS)
main82111-25K31i200810-200907
W(ABS)
main82111-25K40i200708-200810
W(BATTERY=85D26L X 2)
main82111-25K41i200810-200907
W(BATTERY=85D26L X 2)
main82111-25K50i200708-200810
W(ABS & BATTERY=85D26L X 2)
main82111-25K51i200810-200907
W(ABS & BATTERY=85D26L X 2)
main82111-25L00i201310-201408
main82111-25L01i201408-201610
main82111-25L60i201610-201704
sub82111-25L61
main82111-25L61i201705
main82111-25L80i200907-201109
main82111-25L90i200907-201109
W(ABS)
main82111-25M00i200907-201109
W(BATTERY=85D26L X 2)
main82111-25M10i200907-201109
W(ABS & BATTERY=85D26L X 2)
main82111-25M20i200907-201109
main82111-25M30i200907-201109
W(ABS)
main82111-25M40i200907-201109
W(BATTERY=85D26L X 2)
main82111-25M50i200907-201109
W(ABS & BATTERY=85D26L X 2)
main82111-25M60i200907-201109
main82111-25M70i200907-201109
W(ABS)
main82111-25M80i200907-201109
W(BATTERY=85D26L X 2)
main82111-25M90i200907-201109
W(ABS & BATTERY=85D26L X 2)
main82111-25N00i200909-201610
main82111-25Q00i201109-201408
main82111-25Q01i201408-201502
main82111-25Q10i201109-201408
W(ABS)
main82111-25Q11i201408-201502
W(ABS)
main82111-25Q20i201109-201408
main82111-25Q21i201408-201502
main82111-25Q30i201109-201408
W(ABS)
main82111-25Q31i201408-201502
W(ABS)
main82111-25Q40i201109-201408
main82111-25Q41i201408-201502
main82111-25Q50i201109-201408
W(ABS)
main82111-25Q51i201408-201502
W(ABS)
main82111-25R10i201610-202111
main82111-25R20i201610
main82111-25R30i201610
82112WIRE, ENGINE ROOM, NO.2
main82112-25010i200107-201610
W(FRONT FOG LAMP)
main82112-25040i200107-201610
main82112-25070i201610
main82114-37220i201610
W(FRONT FOG LAMP)
82122WIRE, ENGINE, NO.2
main82122-25130i200107-202111
main82122-25170i200112-200610
W(BATTERY=85D26L X 2)
main82122-25170i200108-200609
NORWAY OR FINLAND OR SWEDEN SPEC
main82122-25180i200108-200610
main82122-25200i200107-200609
main82122-25210i200107
main82122-25250i200108-200609
main82122-25510i200609-201310
main82122-25520i200609-201109
W(BATTERY=85D26L X 2)
main82122-25650i201109-201502
W(BATTERY=85D26L X 2)
main82122-25750i201109
82124WIRE, ENGINE, NO.4
main82124-25030i200107-200909
main82124-25040i200909-202111
main82124-25050i200107
main82124-25060i200107-200609
main82124-25100i200208-200412
82125WIRE, TRANSMISSION
main82125-25060i200107-201609
main82125-25070i200107-202111
main82125-25170i200609-201502
82666BHOLDER, CONNECTOR NO.3
main82666-25020i200107-202111
82666CHOLDER, CONNECTOR NO.4
main82666-25030i200107-202111
82823TCAP, ALTERNATOR TERMINAL
main82823-22050i200107-202111
8401
9011906915
main90119-06915
9011908375
main90119-08375
9011908827
main90119-08827
9165160816
main91651-60816
91651B0825
main91651-B0825

14 parts on this diagram · 12 diagrams in section
