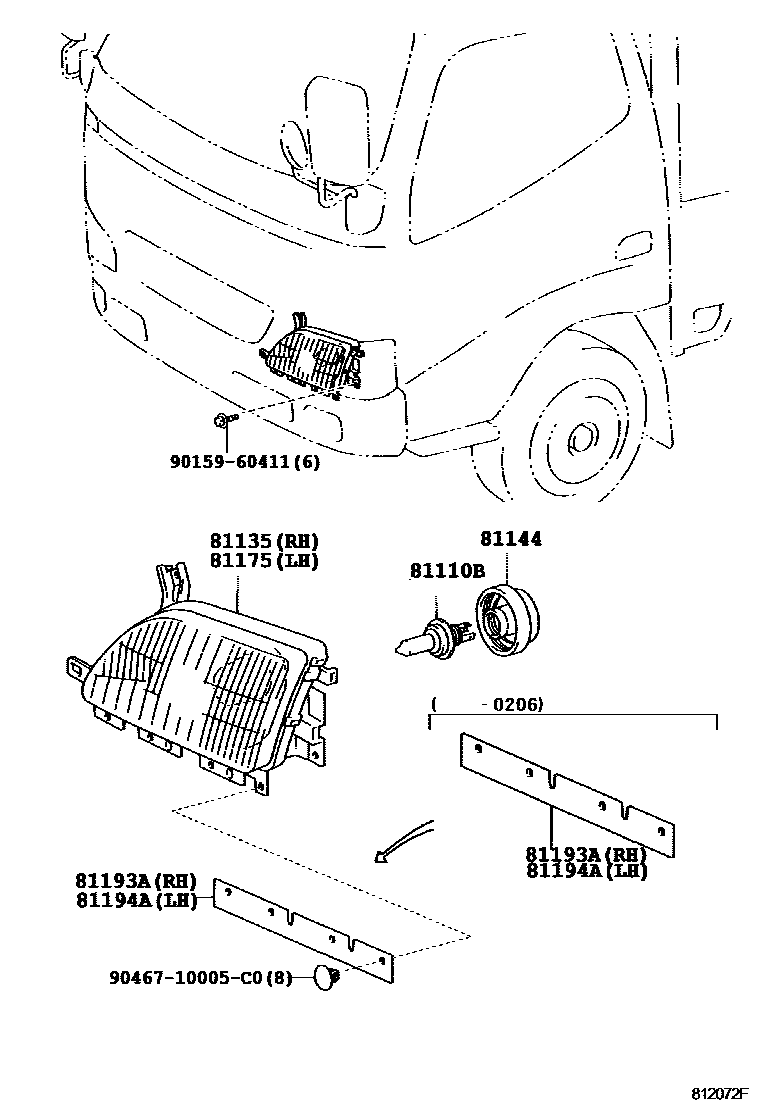

HEADLAMP

0001 1 0003 1W(AUTO LEVELING) 0004 1 0005 1 0006 1

81110HEADLAMP ASSY, RH

main81110-25220iKDY221,231,LY225,235..RHD..GEN201207-201307

main81110-25221iKDY221,231,LY225,235..RHD..GEN201308-201610

main81110-37201iKDY221,231,LY225,235..RHD..GEN200501-201005

sub81110-37202

main81110-37660iKDY221,231,LY23#..RHD201610-202111

main81110-37700iLY235..LHD201610

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13058×2iLY225,235..LHD;KDY22#,23#,25#,26#..EUR200107

12V 60/55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-25180iKDY22#,23#,25#,26#,LY225,235..LHD200107-201006

main81130-25181iKDY221,231,251,261,LY225,235..LHD201006-201610

main81130-25190iLY220,230200308-200501

main81130-25191iLY230200501-201205

main81130-25192iLY230201205-201307

main81130-25193iLY230201307-201610

main81130-37170iKDY22#,23#,25#..RHD..EUR200107-201502

main81130-37660iKDY221,231,LY23#..RHD201610-202111

main81130-37700iLY235..LHD201610

81144COVER, HEADLAMP, NO.1

main81139-37110×2iLY22#,23#..RHD200107-200308

81175UNIT ASSY, HEADLAMP, LH

main81170-25160iKDY22#,23#,25#,26#,LY225,235..LHD200107-201006

main81170-25161iKDY221,231,251,261,LY225,235..LHD201006-201610

main81170-25170iLY220,230200308-200501

main81170-25171iLY230200501-201205

main81170-25172iLY230201205-201307

main81170-25173iLY230201307-201610

main81170-37171iKDY22#,23#,25#..RHD..EUR200107-201502

main81170-37660iKDY221,231,LY23#..RHD201610-202111

main81170-37700iLY235..LHD201610

81193APROTECTOR, HEADLAMP, RH

main81193-37011iKDY220,230,250,260,LY22#,23#200107-200206

main81193-37030iKDY220,230,250,260200108-200206

W(HEADLAMP LEVELING)

main81193-37040iLY22#,23#..RHD200308-200505

main81193-37050iLY225..LHD200206-201609

main81193-37060iKDY221,231,LY23#..RHD..(GEN,SA)200505-201610

81194APROTECTOR, HEADLAMP, LH

main81193-37040iLY22#,23#..RHD200308-200505

main81193-37050iLY22#,23#..RHD200206-200308

main81193-37060iKDY221,231,LY23#..RHD..(GEN,SA)200505-201610

main81194-37012iKDY220,230,250,260,LY22#,23#200107-200206

main81194-37030iKDY220,230,250,260200108-200206

W(HEADLAMP LEVELING)

9015960411

main90159-60411

9046710005C0

main90467-10005C0

9 parts on this diagram · 5 diagrams in section
