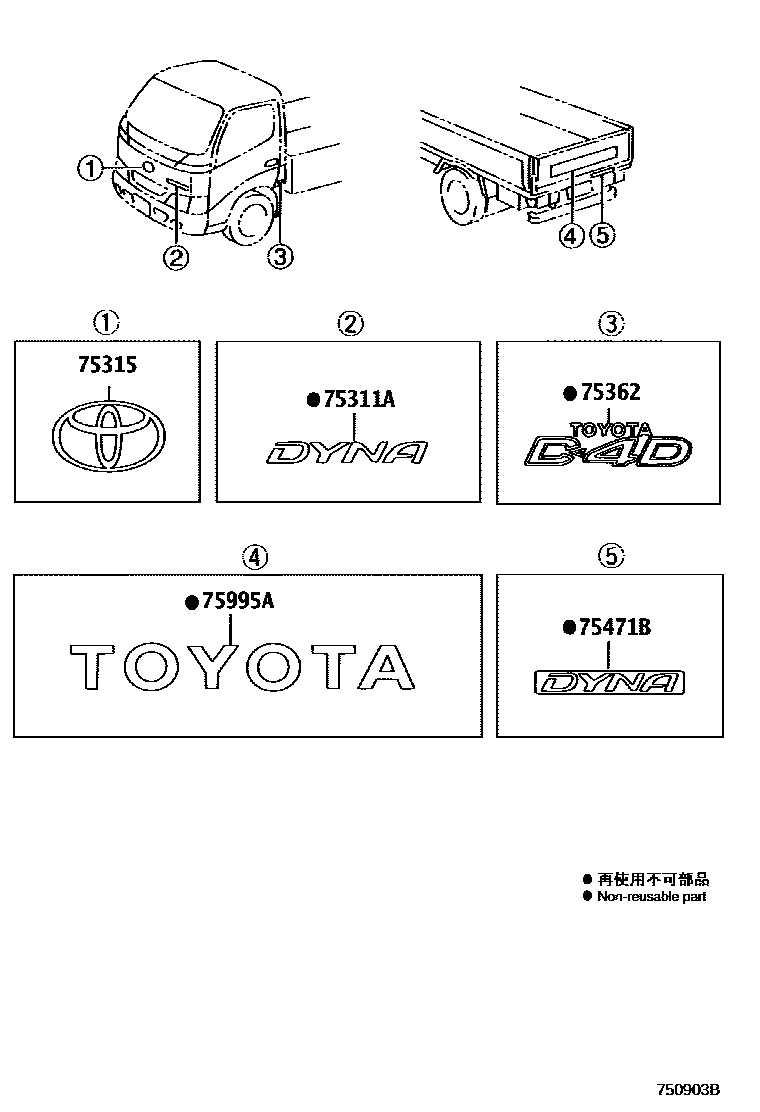

EMBLEM & NAME PLATE

75311APLATE, FRONT NAME, NO.1

main75311-25051iKDY220,250,260..LHD..IV3;KDY230..LHD..(10T,15T)..IV3200108-200609

DYNA,PORTUGAL SPEC

main75311-25051iLY22#,23#;KDY221,251,261..LHD..IV3;KDY231..LHD..(10T,15T)..IV3200107-200708

DYNA

main75311-25070iKDY22#,23#,25#,26#200108-200710

DYNA,CHROME PLATED

sub75311-25090

main75311-25090iKDY221,231,251,261200710-201610

DYNA,CHROME PLATED

sub75311-25100

main75311-25100iKDY221,231201610

DYNA

main75311-37130iLY225,23#;KDY221,251,261..LHD..IV3;KDY231..LHD..(10T,15T)..IV3200708-201610

DYNA

main75311-37290iLY23#201610-202111

DYNA

75315ORNAMENT, RADIATOR GRILLE

main75315-25010iLY235..ST;KDY221,231,LY225,230..GEN,SA200107-200711

main75315-37011iKDY221,231,LY225,23#..GEN,SA200708-201610

main75315-37080iKDY221,231,LY23#201610-202111

75362PLATE, FRONT FENDER NAME, NO.2

main75362-35090iKDY22#,23#,25#,26#200108

75471BPLATE, REAR BODY NAME, NO.1

main75471-25030iKDY22#,23#,25#,26#,LY22#,23#200107-202111

75995ASTRIPE, REAR BODY, CENTER

main75995-37020-A3iLY225,235..CBU200108

WHITE,766 ,8P0

sub75995-37020

main75995-37020-A3iLY225,235..CBU200107-200108

WHITE,8P0

sub75995-37020

main75995-37020-A3iKDY22#,23#..EUR..CBU200108-201502

WHITE,391 ,3H7 ,6A9 ,766 ,8P0

sub75995-37020

main75995-37020-A4iKDY23#..EUR..CBU200108-201502

BLACK,058 ,199 ,541

sub75995-37020

main75995-37020-A4iKDY23#..EUR..CBU200108-201502

BLACK,058 ,541

sub75995-37020

main75995-37020-A4iLY225,235..ST..CBU200107

BLACK,058

sub75995-37020

main75995-37020-A4iLY225,235..ST..CBU200107

BLACK,058 ,199

sub75995-37020

5 parts on this diagram · 1 diagram in section
