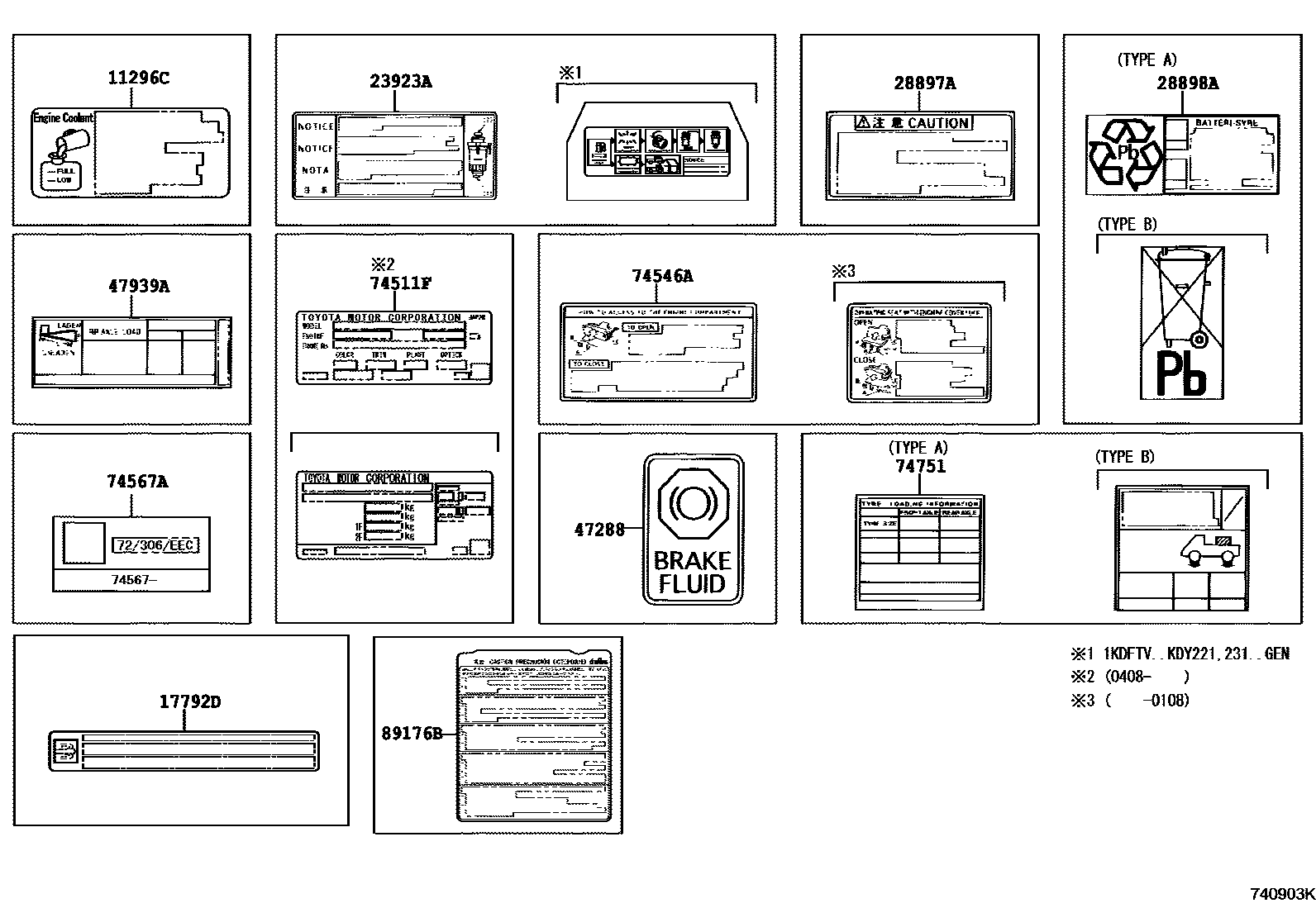

CAUTION PLATE

0001 1 0002 1

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-27020i1KDFTV,2KDFTV,5L..KDY22#,23#,25#,26#,LY22#,23#200308-200705

17792DLABEL, EMISSION CONTROL DEVICE INFORMATION

main17792-30020i1KDFTV..KDY221,231..GEN201310

23923ALABEL, FUEL SEDIMENTER NOTICE

main23923-30030i1KDFTV..KDY221,231..GEN200609-201704

main23923-64021i5L..LY22#,23#200107-201704

28897APLATE, BATTERY CAUTION

main28897-54030i2KDFTV..KDY230,250..RHD;2KDFTV..KDY230,260..125T;2KDFTV..KDY220..RHD..CBU200112-201502

28898APLATE, BATTERY

main28898-46010×2i1KDFTV,2KDFTV..KDY22#..LHD;1KDFTV,2KDFTV..KDY23#,25#,26#..LHD..(10T,15T)200108-200705

TYPE A:REFER TO ILLUSTRATION

main28898-46020×2i1KDFTV..KDY221,231,251,261..EUR200611-201502

TYPE B:REFER TO ILLUSTRATION

main28898-58010×2i1KDFTV..KDY221..RHD..IV3;2KDFTV..KDY220,230,250,260200108-200611

TYPE B:REFER TO ILLUSTRATION

47288LABEL, BRAKE FLUID NOTICE

main47287-28020iKDY22#,23#,25#,26#..EUR200108-202111

47939APLATE, LOAD SENSING VALVE MARKING

main47939-25110iKDY220200108-200609

main47939-25111iKDY22#..EUR200609-201502

main47939-25120iKDY230..ST200108-200609

main47939-25121iKDY231..ST200609-201502

main47939-25130iKDY23#,25#,26#..WT..IV3200108-201502

main47939-25140iLY230201701-202111

main47939-25190iLY230..SA200110-201701

74511FLABEL, NAME (IDENTIFICATION LASER LABEL)

main74511-2B300iKDY221,231,LY225,235..GEN200708

*111

main74511-48020iKDY22#..EUR..CBU;KDY22#..LHD..IV3;KDY23#,25#,26#..EUR200408-201502

*111

main74511-48030iLY220,230..ARL200408-200412

*111

74546APLATE, ENGINE COVER OPERATIONAL CAUTION

main74546-25010iLY220,230..ARL200108-200412

main74546-37010iLY220,230200107-200108

74567APLATE, E.C.E APPROVED NUMBER

main74567-20261iKDY221,231,251,261..EUR200905-201109

main74567-25041iKDY221,231,251,261..EUR201109

main74567-36121iKDY220,230,250,260200108-200609

main74567-60291iKDY22#,231,251,261..EUR200609-200905

74751LABEL, TIRE PRESSURE INFORMATION

main42661-25330iKDY22#,23#..ST200108-201502

TYPE B:REFER TO ILLUSTRATION

main42661-25340iLY220200107-200412

TYPE A:REFER TO ILLUSTRATION

main42661-25350iKDY23#,25#,26#..WT..IV3200108-201502

TYPE B:REFER TO ILLUSTRATION

main42661-25360iLY230..ARL200107-200412

TYPE A:REFER TO ILLUSTRATION

89176BLABEL, AIRBAG SENSOR COVER CAUTION

main89176-37020iKDY221,231201610

12 parts on this diagram · 2 diagrams in section
