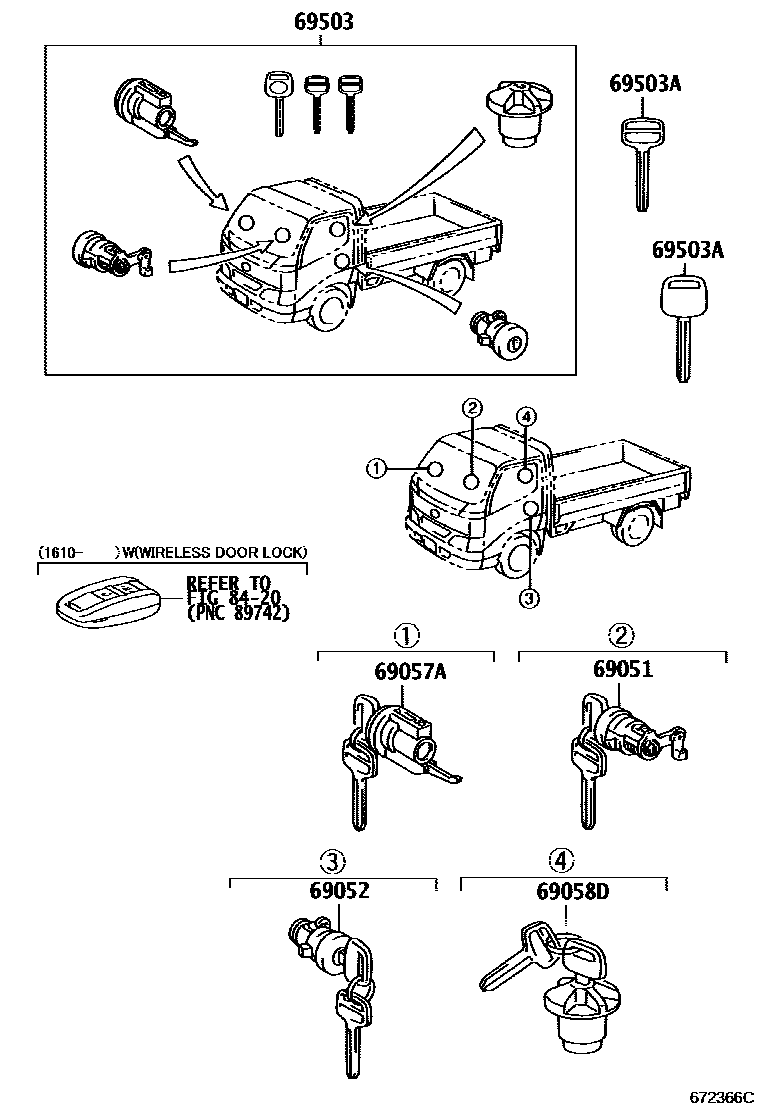

LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-37060iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-37100iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-25030iLY225,235..ST200107-200210

sub69057-37150

main69057-25040iLY235..WT;KDY220,230,250,260,LY220,230200107-200210

sub69057-37180

main69057-25060iKDY221,231,LY23#201610-202111

main69057-37050iLY225,235..ST200210-201610

main69057-37180iLY235..WT;KDY22#,23#,25#,26#,LY220,230200210-201607

69058DCYLINDER & KEY SET, FUEL TANK FILLER

main69058-25070iKDY22#,23#,25#,26#..EUR200108-201502

main69058-37050iLY22#,23#200107-200201

main69058-37051iKDY221,231,LY22#,23#..ARL,GEN,SA200201-202111

69503CYLINDER SET, LOCK

main69005-25110iLY225,235..ST200107-201610

TYPE B:REFER ILLUST.

main69005-25130iLY235..WT;KDY221,231,LY220,230..ARL,GEN,SA200107-201602

TYPE B:REFER ILLUST.

sub69005-25131

main69005-25131iKDY221,231,LY230201603-201610

TYPE B:REFER ILLUST.

main69005-25140iKDY22#,23#,25#,26#..EUR200108-201502

TYPE B:REFER ILLUST.

main69005-25150iKDY221,231,LY23#201610-202111

TYPE B:REFER ILLUST.

69503AKEY, BLANK

main90999-00185iKDY221,231,LY230..GEN,SA200107-202111

MASTER KEY,W(*68)

main90999-00186iLY225,235;KDY22#,23#,25#,26#,LY220,230..ARL,EUR200107-202111

MASTER KEY

8420

7 parts on this diagram · 1 diagram in section
