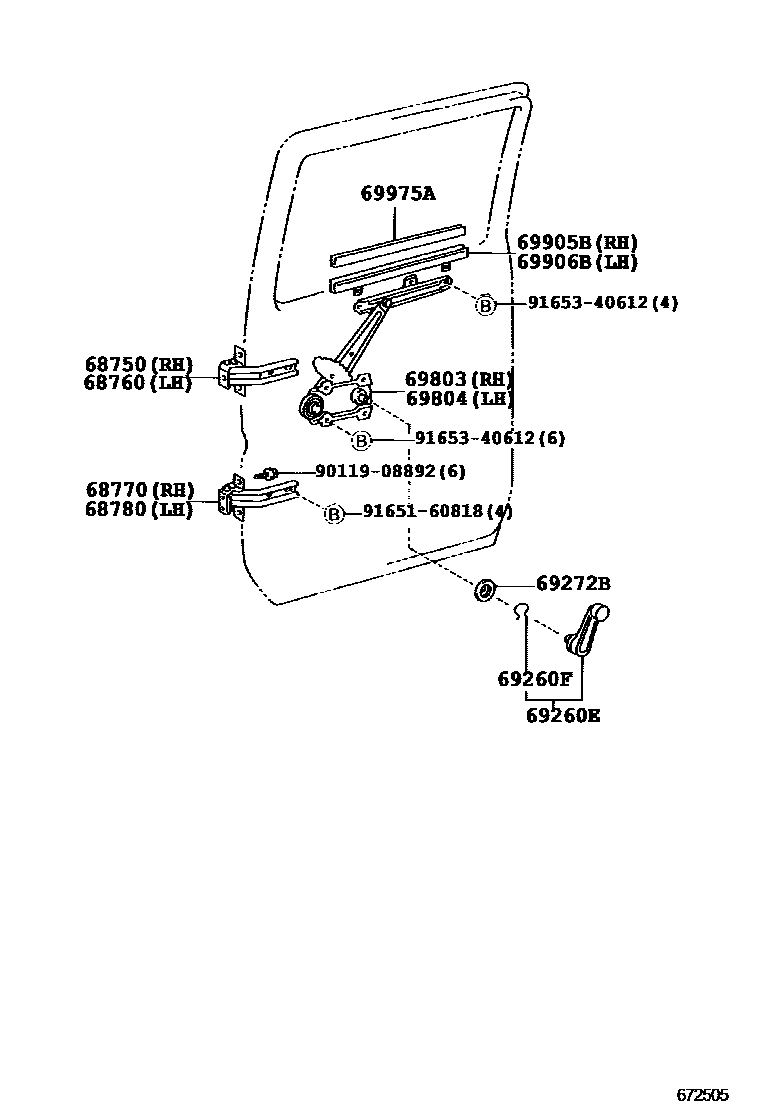

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-37010iKDY23#,25#,26#..10T,125T200108-201502

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-37010iKDY23#,25#,26#..10T,125T200108-201502

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-37010iKDY23#,25#,26#..10T,125T200108-201410

main68770-37011iKDY231,251,261..10T,125T201411-201502

sub68770-37012

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-37010iKDY23#,25#,26#..10T,125T200108-201410

main68780-37011iKDY231,251,261..10T,125T201411-201502

sub68780-37012

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-89104-B3×2iKDY23#,25#,26#..10T,125T200108-201502

MD.CHARCOAL,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iKDY23#,25#,26#..10T,125T200108-201502

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010×2iKDY23#,25#,26#..10T,125T200108-201502

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-37010iKDY23#,25#,26#..10T,125T200108-201502

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-37010iKDY23#,25#,26#..10T,125T200108-201502

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-37010iKDY23#,25#,26#..10T,125T200108-201502

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-37010iKDY23#,25#,26#..10T,125T200108-201502

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-37010×2iKDY23#,25#,26#..10T,125T200108-201502

9011908892

main90119-08892

9165160818

main91651-60818

9165340612

main91653-40612

15 parts on this diagram · 1 diagram in section
