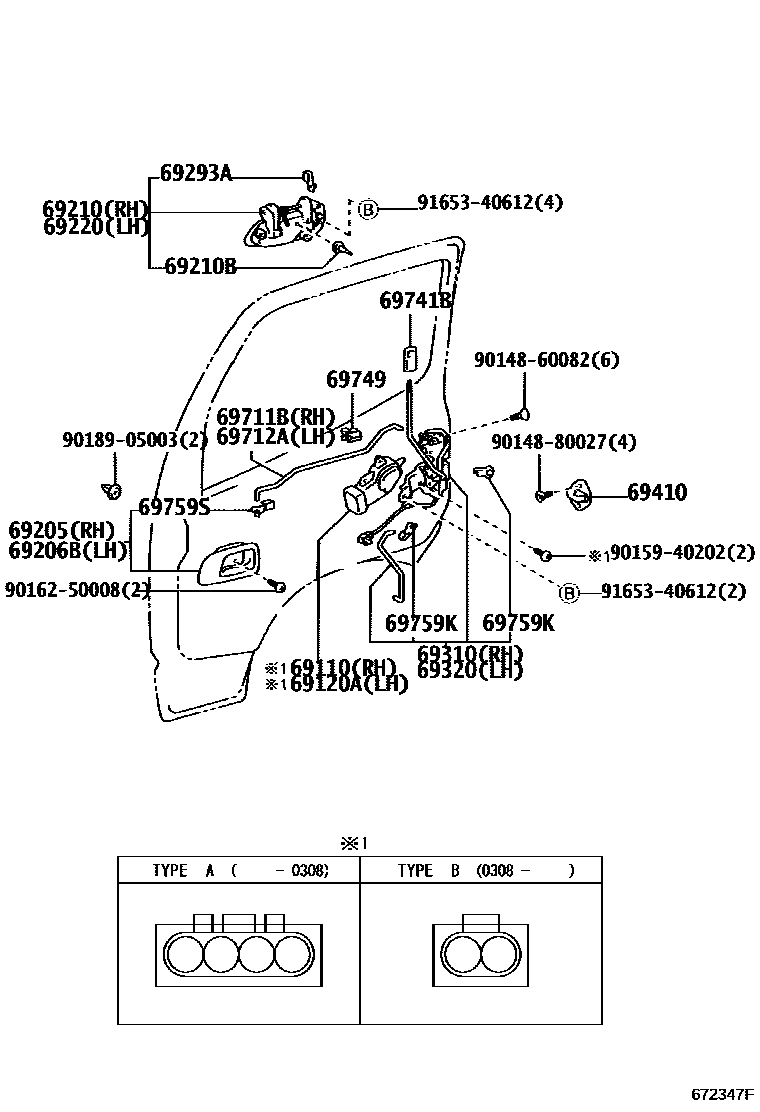

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-37040iKDY220,230,250,260..LHD200108-200308

main69110-37050iKDY22#,23#,25#,26#..LHD200308-201502

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-37040iLY235..WT;KDY220,230,250..RHD200107-200308

TYPE A:REFER ILLUST.

main69120-37050iLY235..WT;KDY22#,23#,25#..RHD200308

TYPE B:REFER ILLUST.

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main69205-37010-B0iLY225,23#201505-202111

MD.CHARCOAL,TRIM12

main69205-37010-B1iKDY221,231201505-202111

GRAY,TRIM13

main69205-37010-B1iKDY221,231201505-202111

GRAY,TRIM1#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-37010-B0iLY225,23#201505-202111

MD.CHARCOAL,TRIM12

main69206-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

main69206-37010-B1iLY225,23#201505-202111

GRAY,TRIM13

main69206-37010-B1iLY225,23#201505-202111

GRAY,TRIM1#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-37020iKDY22#,23#,25#,26#,LY22#,23#200107-202111

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04015iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-37020iKDY22#,23#,25#,26#,LY22#,23#200107-202111

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iKDY22#,23#,25#,26#,LY22#,23#200107-202111

RH

main69293-12060iKDY22#,23#,25#,26#,LY22#,23#200107-202111

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-37070iKDY221,231..GEN200107-202111

main69310-37080iKDY221,231201610

main69310-37090iLY235..WT;KDY22#,23#,25#..RHD200107-201610

W(POWER DOOR LOCK)

main69310-37100iKDY22#,23#,25#,26#..LHD200108-201502

W(POWER DOOR LOCK)

69320LOCK ASSY, FRONT DOOR, LH

main69320-37060iKDY230,250..RHD;KDY220..RHD..CBU200108-200609

W(POWER DOOR LOCK)

main69320-37060iLY230..SA;LY235..ST200107-202111

main69320-37080iKDY22#,23#,25#,26#..LHD200108-201502

W(POWER DOOR LOCK)

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20110iLY230..SA;LY235..ST200107-202111

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-37010iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B3iKDY22#,23#,25#,26#,LY22#,23#200107-201505

MD.CHARCOAL,TRIM1#

sub69741-12040

main69741-12040-B3iLY225,23#201505-202111

MD.CHARCOAL,TRIM12

sub69741-12040

main69741-12040-C0iLY225,23#201505-202111

BLACK,TRIM13

sub69741-12040

main69741-12040-C0iLY225,23#201505-202111

BLACK,TRIM1#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12070iKDY22#,23#,25#,26#,LY22#,23#200107-202111

69759KSNAP, DOOR LOCK CONTROL LINK

main69759-20040iLY230..SA;LY235..ST200107-202111

YELLOW

main69759-20050iLY230..SA;LY235..ST200107-202111

BROWN

main69759-24010iLY230..SA;LY235..ST200107-202111

NATURAL

main69759-24020iLY235..WT;KDY22#,23#,25#,26#,LY22#,230..ARL,EUR,GEN200107-202111

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-22040iKDY22#,23#,25#,26#,LY22#,23#200107-202111

LH

main69759-22050iKDY22#,23#,25#,26#,LY22#,23#200107-202111

RH

9014860082

main90148-60082

9014880027

main90148-80027

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9165340612

main91653-40612

23 parts on this diagram · 1 diagram in section
