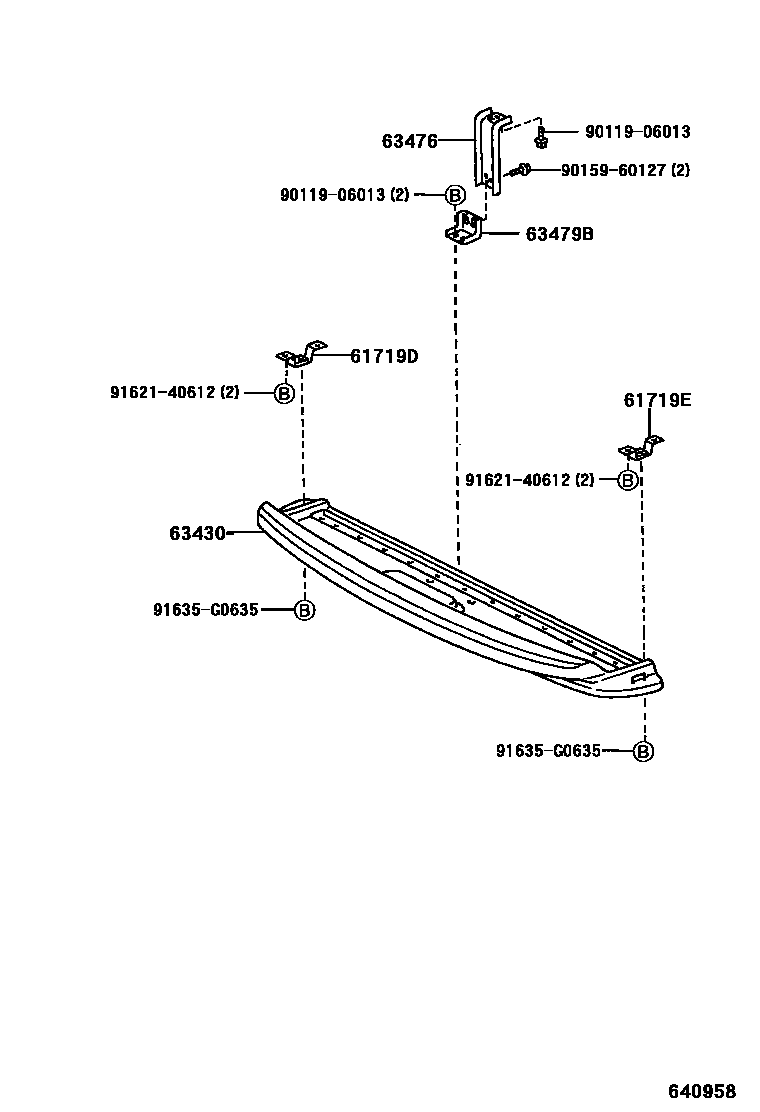

ROOM CURTAIN & ROOM RACK

0001 1 0003 1

61719DBRACKET, ROOF SIDE, INNER RH

main61719-37010iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

61719EBRACKET, ROOF SIDE, INNER LH

main61729-37010iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

63430RACK ASSY, ROOF, INNER

main63430-25020-B0iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

MD.CHARCOAL,TRIM1#

63476STAY, ROOM RACK

main63476-37010iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

63479BPLATE, ROOF RACK LEG

main63479-37010iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

9011906013

main90119-06013

9015960127

main90159-60127

9162140612

main91621-40612

91635G0635

main91635-G0635

9 parts on this diagram · 2 diagrams in section
