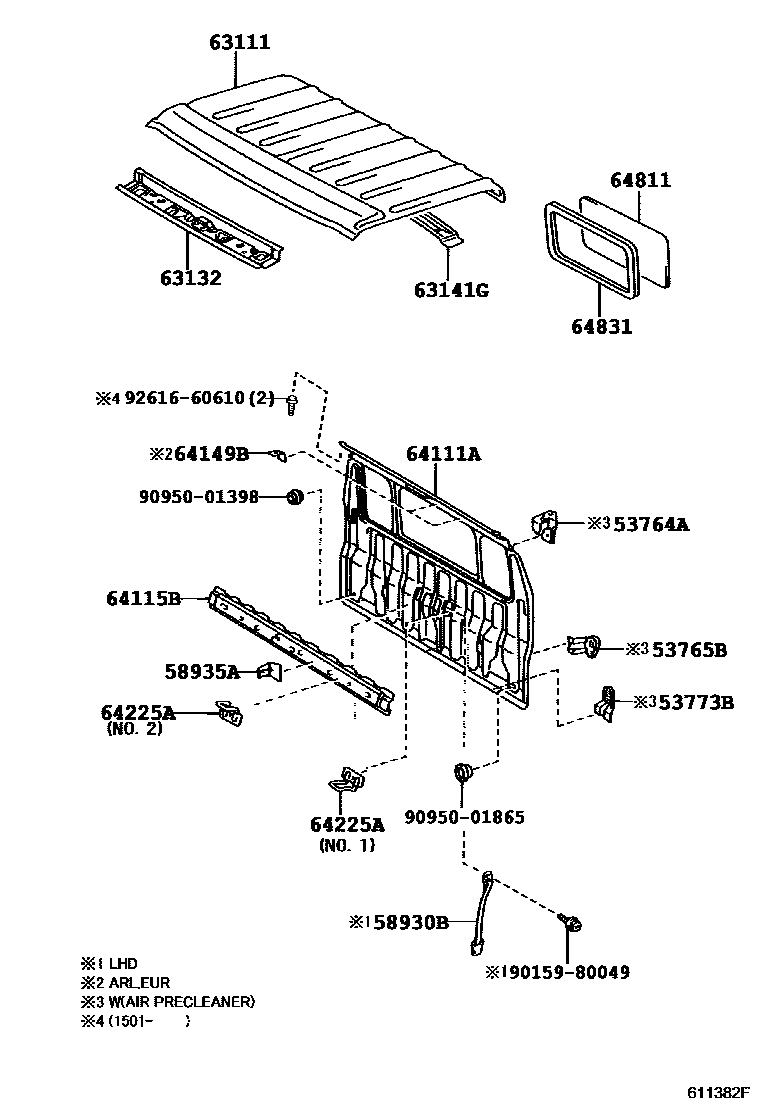

ROOF PANEL & BACK PANEL

0001 1 0002 1STD ROOF 0003 1HIGH ROOF

53764ABRACKET, AIR CLEANER INLET, NO.1

main53764-25040iLY225..IV3200107-201609

53765BBRACKET, AIR CLEANER INLET, NO.2

main53765-25020iLY225..IV3200107-201609

53773BBRACKET, AIR CLEANER INLET, NO.2

main53773-37070iLY225..IV3200107-201609

58930BBAND ASSY, ENGINE SERVICE HOLE COVER SUPPORT

main58930-25010iLY225..LHD201206-201609

main58930-37020iKDY22#,23#,25#,26#,LY225,235..LHD200107-201206

58935ABRACKET, ENGINE SERVICE HOLE COVER SUPPORT BAND

main58935-37020iKDY22#,LY225,235..LHD;KDY23#,25#,26#..LHD..15T200107

63111PANEL, ROOF

main63111-37120iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200107-202111

main63111-37130iKDY230,250..RHD200108-201109

HIGH ROOF

sub63111-37131

main63111-37131iKDY221..IV3;KDY231,251,261..15T..IV3201109-201201

HIGH ROOF

sub63111-37132

main63111-37132iKDY221..IV3;KDY231,251,261..15T..IV3201202-201502

HIGH ROOF

main63111-37140iKDY23#,25#,26#..10T,125T200108-201502

main63111-37150iKDY23#..ST..IV3;KDY25#,26#..125T200108-201502

HIGH ROOF

63132PANEL, WINDSHIELD HEADER, INNER

main63132-37070iKDY220,230,250,260,LY22#,23#200107-200603

sub63132-37071

main63132-37071iKDY22#,23#,25#,26#,LY225,23#200604-201411

main63132-37072iKDY221,231,251,261,LY225,23#201412-201510

sub63132-37073

main63132-37073iKDY221,231,LY225,23#201511-201811

sub63132-37074

main63132-37074iKDY221,231,LY23#201812-202111

sub63109-37050

main63132-37081iKDY230,250..RHD200108-200603

HIGH ROOF

sub63132-37082

main63132-37082iKDY22#..IV3;KDY23#,25#,26#..15T..IV3200604-201502

HIGH ROOF

main63132-37090iKDY230..ST..IV3;KDY250,260..125T200108-200603

HIGH ROOF

sub63132-37091

main63132-37091iKDY231..125T200604-201412

HIGH ROOF

main63132-37092iKDY231,251,261..(10T,125T)..IV3201412-201502

HIGH ROOF

sub63132-37093

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-37060iKDY22#,23#,25#,26#,LY22#,23#200107-201811

main63141-37061iKDY221,231,LY23#201812-202111

main63141-37070iKDY230,250..RHD200108-201502

HIGH ROOF

main63143-37040iKDY231..125T200108-201502

HIGH ROOF

64111APANEL, BACK

main64111-37372iKDY220,LY22#,23#;KDY230,250,260..15T200107-200603

sub64111-37373

main64111-37373iKDY22#,LY225,23#;KDY23#,25#,26#..15T200604-201008

sub64111-37374

main64111-37374iKDY221..EUR;KDY231,251,261..15T..IV3201009-201501

main64111-37375iKDY221,231,LY225,23#..GEN,SA201410-201501

sub64111-37376

main64111-37376iLY235..IV3;LY235..LHD..CBU;KDY221,231,LY225..GEN201501-202111

main64111-37511iKDY230,250,260..10T,125T200108-200603

sub64111-37512

main64111-37512iKDY23#,25#,26#..10T,125T200604-201410

main64111-37513iKDY231,251,261..10T,125T201410-201501

sub64111-37514

main64111-37514iKDY231,251,261..10T,125T201501-201502

main64111-37521iKDY230..ST..IV3;KDY250,260..125T200108-200603

HIGH ROOF

sub64111-37522

main64111-37522iKDY231..125T200604-201502

HIGH ROOF

sub64111-37523

64115BREINFORCEMENT, BACK PANEL

main64115-25020iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201012

sub64115-25021

main64115-25021iKDY221..LHD;KDY231,251,261..LHD..15T201101-201502

main64115-25040iKDY221,231,LY23#201607-202111

main64115-37121iLY235;KDY220,230,250,LY220,230..RHD;KDY230,250,260,LY225..10T,125T200107-200603

sub64115-37122

main64115-37122iLY235;KDY22#,23#,25#,LY230..RHD;KDY23#,25#,26#,LY225..10T,125T200604-201009

sub64115-37123

main64115-37123iLY235;KDY221,231,251,LY230..RHD;KDY231,251,261,LY225..10T,125T201010-201012

sub64115-37124

main64115-37124iLY235;KDY221,231,251,LY230..RHD;KDY231,251,261,LY225..10T,125T201101-201607

sub64115-25040

64149BRETAINER, BACK PANEL HEADREST

main64149-25010iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201502

main64149-37010iKDY22#,23#,25#,LY220,230..RHD..(ARL,EUR)200107-201502

64225AHANGER, REAR SEAT CUSHION SUPPORT

main64209-37010iLY235..IV3;LY235..LHD..CBU;KDY22#,LY22#,230..ARL,EUR,GEN;KDY23#,25#,26#,LY235..(15T,175T)..WT200107-202111

NO.1

main64209-37030iKDY221..RHD..IV3200610-201502

NO.2

main64209-37030iLY235..WT;KDY221..RHD..CBU;KDY220,23#,25#..RHD200107

W(SPLIT TYPE SEAT),NO.2

main64209-37040iKDY22#..LHD;KDY23#,25#,26#..LHD..15T200108-201502

NO.2

64811GLASS, BACK WINDOW

main64811-25030iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200408-202111

*UVCT,T=3.5,GREEN

main64811-25040iKDY23#,25#,26#..10T,125T200408-201201

*UVCT,T=3.5,GREEN

sub64811-25050

main64811-25050iKDY231,251,261..10T,125T201202-201502

*UVCT,T=3.5,GREEN

main64811-37120iKDY220,LY22#,23#;KDY230,250,260..15T200107-200408

*TEM,T=3.5,GREEN

main64811-37140iKDY230,250,260..10T,125T200108-200408

*TEM,T=3.5,GREEN

sub64811-37200

64831WEATHERSTRIP, BACK WINDOW GLASS

main64831-37040iKDY220,LY22#,23#;KDY230,250,260..15T200107-200312

sub64831-37041

main64831-37041iKDY22#,LY22#,23#;KDY23#,25#,26#..15T200312-202111

main64831-37050iKDY23#,25#,26#..10T,125T200108-201205

sub64831-37051

main64831-37051iKDY231,251,261..10T,125T201206-201502

9015980049

main90159-80049

9095001398

main90950-01398

9095001865

main90950-01865

9261660610

main92616-60610

18 parts on this diagram · 3 diagrams in section
