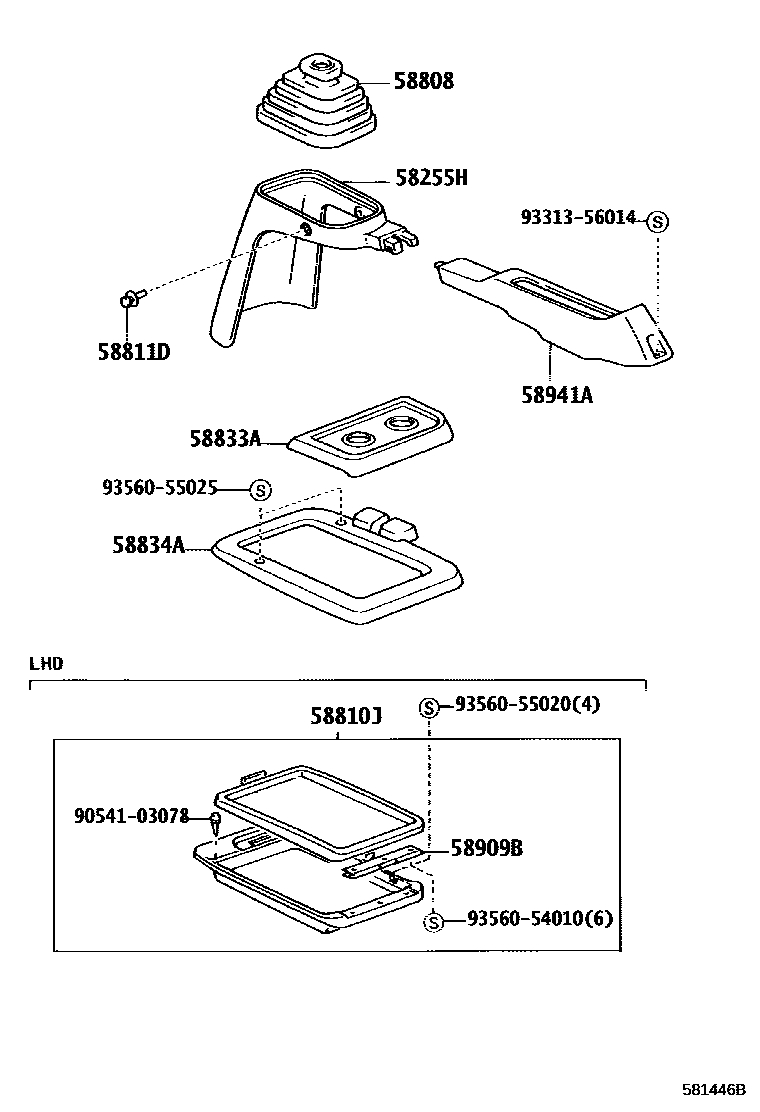

CONSOLE BOX & BRACKET

58255HCOVER, SHIFT LEVER BOOT

main58255-37020-B0iKDY22#,23#,25#,LY22#,23#..RHD200107-200909

DK.CHARCOAL,TRIM1#

sub58255-37021

main58255-37021-B0iKDY221,231,251,LY225,23#..RHD200910-201505

DK.CHARCOAL,TRIM1#

main58255-37021-B1iKDY221,231,LY225,23#..RHD201505-202111

GRAY,TRIM1#

main58255-37030-B0iKDY22#,23#,25#,26#,LY225,235..LHD200107-201505

DK.CHARCOAL,TRIM1#

main58255-37030-B0iLY225,235..LHD201505-201610

DK.CHARCOAL,TRIM12

main58255-37030-B1iLY235..LHD201610

GRAY,TRIM1#

main58255-37030-B1iLY225,235..LHD201505-201610

GRAY,TRIM13

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37020-B0iKDY22#,23#,25#,26#,LY22#,23#200107-200909

DK.CHARCOAL,TRIM1#

sub58808-37021

main58808-37021-B0iKDY221,231,251,261,LY225,23#200910-201505

DK.CHARCOAL,TRIM1#

main58808-37021-C0iKDY221,231,LY225,23#201505-202111

BLACK,TRIM1#

58810JBOX ASSY, CONSOLE

main58810-37040-B0iKDY221..LHD;KDY231,251,261..LHD..15T200108-200908

MD.CHARCOAL,TRIM1#

sub58810-37041

main58810-37041-B0iKDY221..LHD;KDY231,251,261..LHD..15T200909-201502

MD.CHARCOAL,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0iKDY22#,23#,25#,26#,LY22#,23#200107-201505

DK.CHARCOAL,TRIM1#

sub90467-07191

main90467-07191-B0iLY225,23#201505-201610

DK.CHARCOAL,TRIM12

sub90467-07191

main90467-07191-C1iLY225,23#201505-201610

BLACK,TRIM13

sub90467-07191

main90467-07191-C1iKDY221,231201505-202111

BLACK,TRIM1#

sub90467-07191

58833ACOVER, CONSOLE, UPPER

main58833-37030-B0iKDY220..LHD;KDY230,250,260..LHD..15T200108-200308

MD.CHARCOAL,TRIM1#

main58839-37010-B0iKDY221,231,251..RHD200909-201505

MD.CHARCOAL,TRIM1#

main58839-37010-B1iKDY221,231201505

GRAY,TRIM1#

main58839-95400-B0iKDY221,231,251..RHD200107-200909

MD.CHARCOAL,TRIM1#

sub58839-95400

sub58839-37010

58834ACOVER, CONSOLE, LOWER

main58834-25020-B0iLY235..WT200107-200909

MD.CHARCOAL,TRIM1#

sub58834-25021

main58834-25021-B0iKDY221,231,251..RHD200909-201505

MD.CHARCOAL,TRIM1#

main58834-25021-B1iKDY221,231201505

GRAY,TRIM1#

main58834-37020-B0iKDY220..LHD;KDY230,250,260..LHD..15T200108-200308

MD.CHARCOAL,TRIM1#

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iKDY221..LHD;KDY231,251,261..LHD..15T200108-201502

58941ACOVER, PARKING BRAKE HOLE

main58941-37010-B0iKDY22#,23#,25#,26#,LY22#,23#200107-200909

DK.CHARCOAL,TRIM1#

sub58941-37011

main58941-37011-B0iKDY221,231,251,261,LY225,23#200910-201505

DK.CHARCOAL,TRIM1#

main58941-37011-B1iKDY221,231,LY225,23#201505-202111

GRAY,TRIM1#

9054103078

main90541-03078

9331356014

main93313-56014

9356054010

main93560-54010

9356055020

main93560-55020

9356055025

main93560-55025

13 parts on this diagram · 1 diagram in section
